Osculati DIN 7981 Stainless Steel Pan Head Self-Tapping Screws Ø2.9–6.3 mm

ID 1402527

$ 5.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

3 pcs
5 pcs
14 pcs
18 pcs
20 pcs
7 pcs
4 pcs
11 pcs
9 pcs

Osculati DIN 7981 stainless steel self-tapping screws feature a pan head with a cross-recessed drive for fastening suitable panels, fittings and components. Their self-tapping thread is designed to form a mating thread in compatible materials during installation, while the stainless steel construction provides corrosion resistance for suitable marine and outdoor applications. The range includes ten dimensional configurations with diameters from 2.9 to 6.3 mm and lengths from 10 to 50 mm. Each size is supplied in a blister pack containing 3 to 20 screws, depending on the selected variant.

Description
Ask a Question

Osculati DIN 7981 Stainless Steel Pan Head Self-Tapping Screws Ø2.9–6.3 mm

Osculati DIN 7981 self-tapping screws are manufactured from stainless steel and feature a pan head with a cross-recessed drive. They are designed for fastening suitable marine fittings, panels and mechanical components where a self-tapping threaded connection is required.

The self-tapping thread allows the screw to form a mating thread in a compatible material during installation. Depending on the material, thickness and application, a correctly sized pilot hole may be required. The pan head provides a flat bearing surface underneath the head, while its slightly rounded upper profile remains visible after installation.

The cross-recessed drive allows tightening using a suitable screwdriver or driver bit. Stainless steel construction provides corrosion resistance for appropriate marine, outdoor and general maintenance applications.

The range includes ten dimensional configurations in seven nominal diameters: 2.9, 3.5, 3.9, 4.2, 4.8, 5.5 and 6.3 mm. Available lengths range from 10 to 50 mm. Each variant is supplied in a blister pack containing a specified number of screws.

Technical Specifications

Brand	Osculati
Product Type	Self-Tapping Screw
Standard	DIN 7981
Material	Stainless Steel
Head Type	Pan Head
Drive Type	Cross-Recessed
Thread Type	Self-Tapping
Available Diameters	2.9, 3.5, 3.9, 4.2, 4.8, 5.5, 6.3 mm
Available Length Range	10–50 mm
Pack Quantity	3–20 pcs, depending on size

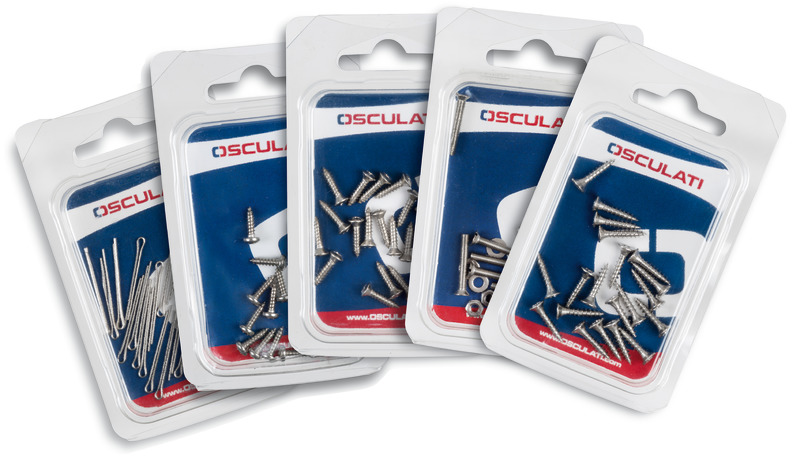

Packaging	Blister Pack
Number of Variants	10

Features and Applications

Stainless steel construction for corrosion resistance.
DIN 7981 pan head self-tapping screw design.
Cross-recessed drive for installation with a compatible screwdriver bit.
Self-tapping thread for fastening in suitable materials.
Pan head provides a bearing surface without requiring a countersunk recess.
Suitable for compatible marine fittings, panels and general assembly work.
Available in seven nominal diameters and ten dimensional configurations.
Supplied in blister packs with quantities matched to each screw size.

Available Sizes and Pack Quantities

Diameter	Length	Pack Quantity	Osculati Part No.
2.9 mm	10 mm	20 pcs	37.050.01
3.5 mm	13 mm	18 pcs	37.050.02
3.9 mm	16 mm	14 pcs	37.050.04
4.2 mm	25 mm	11 pcs	37.050.06
4.8 mm	25 mm	9 pcs	37.050.08
4.8 mm	32 mm	7 pcs	37.050.10
5.5 mm	25 mm	5 pcs	37.050.12
5.5 mm	38 mm	4 pcs	37.050.14
6.3 mm	25 mm	4 pcs	37.050.16
6.3 mm	50 mm	3 pcs	37.050.18

Size Selection

Select the nominal screw diameter and length according to the material and components being fastened. Available lengths and blister quantities vary by diameter. Check that the screw size, mounting hole and required thread engagement are appropriate for the installation.
