Osculati AISI 316 Stainless Steel Pan Head Self-Tapping Screws DIN 7981 / UNI 6954, Ø2.9–6.3 mm

ID 1402588

$ 22.10

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

25 pcs
50 pcs
100 pcs
200 pcs

Osculati DIN 7981 / UNI 6954 self-tapping screws are manufactured from AISI 316 stainless steel and feature a rounded pan head with a cross-recessed drive. Designed for fastening suitable marine fittings, panels and mechanical components, these screws provide corrosion resistance for applications exposed to moisture and marine environments. Their self-tapping threads form mating threads in compatible materials, while the pan head provides a flat bearing surface beneath its rounded upper profile. The range includes 40 dimensional configurations with diameters from 2.9 to 6.3 mm and lengths from 10 to 50 mm. Each size is supplied in boxes containing 25, 50, 100 or 200 pieces, depending on the selected variant.

Description
Ask a Question

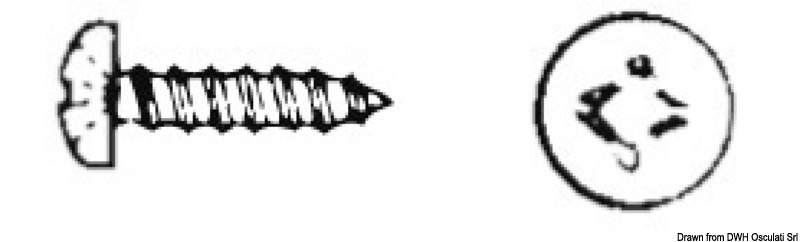

Osculati AISI 316 Stainless Steel Pan Head Self-Tapping Screws DIN 7981 / UNI 6954

Osculati pan head self-tapping screws are manufactured from AISI 316 stainless steel and feature a cross-recessed drive. Listed according to DIN 7981 and UNI 6954, these screws are designed for fastening compatible panels, fittings and mechanical components in marine, outdoor and general maintenance applications.

The screws feature a rounded pan head with a flat bearing surface underneath. Unlike countersunk screws, the head remains above the mounting surface, making this design suitable for installations where a countersunk recess is not required.

The self-tapping thread is designed to form a mating thread in compatible materials during installation. Depending on the workpiece material, thickness and fastening requirements, a correctly sized pilot hole may be necessary. The cross-recessed drive allows installation using a suitable screwdriver or driver bit.

AISI 316 stainless steel provides corrosion resistance for marine hardware and other applications involving exposure to moisture. Material compatibility and installation conditions should be considered when selecting fasteners for use in demanding environments.

The range includes 40 dimensional configurations across seven nominal diameters: 2.9, 3.5, 3.9, 4.2, 4.8, 5.5 and 6.3 mm. Available lengths range from 10 to 50 mm depending on the selected diameter. Each version is identified by an individual Osculati part number and supplied in a specified box quantity.

Technical Specifications

Brand	Osculati
Product Type	Self-Tapping Screw
Standards	DIN 7981 / UNI 6954
Material	AISI 316 Stainless Steel
Head Type	Pan Head / Rounded Head
Drive Type	Cross-Recessed
Thread Type	Self-Tapping
Available Diameters	2.9, 3.5, 3.9, 4.2, 4.8, 5.5, 6.3 mm
Available Length Range	10–50 mm
Box Quantities	25, 50, 100, 200 pcs
Number of Variants	40
Dimensions Format	Diameter × Length

Features and Applications

Manufactured from AISI 316 stainless steel for corrosion resistance.
DIN 7981 / UNI 6954 pan head self-tapping screw design.
Cross-recessed drive for installation with a compatible screwdriver bit.
Rounded head with a flat underside for bearing against the mounting surface.
Self-tapping thread for fastening in suitable materials.
Suitable for compatible marine fittings, panels and general mechanical assemblies.
Available in seven nominal diameters and 40 dimensional configurations.
Supplied in boxes containing 25 to 200 screws depending on size.

Available Sizes and Part Numbers

Diameter	Length	Box Quantity	Osculati Part No.
2.9 mm	10 mm	200 pcs	A4-7981-02.9X010
2.9 mm	13 mm	200 pcs	A4-7981-02.9X013
2.9 mm	19 mm	200 pcs	A4-7981-02.9X019
3.5 mm	10 mm	200 pcs	A4-7981-03.5X010
3.5 mm	13 mm	200 pcs	A4-7981-03.5X013
3.5 mm	16 mm	200 pcs	A4-7981-03.5X016
3.5 mm	19 mm	100 pcs	A4-7981-03.5X019
3.5 mm	25 mm	100 pcs	A4-7981-03.5X025
3.5 mm	32 mm	100 pcs	A4-7981-03.5X032
3.9 mm	10 mm	200 pcs	A4-7981-03.9X010
3.9 mm	16 mm	100 pcs	A4-7981-03.9X016
3.9 mm	19 mm	100 pcs	A4-7981-03.9X019
3.9 mm	25 mm	100 pcs	A4-7981-03.9X025
3.9 mm	32 mm	50 pcs	A4-7981-03.9X032
3.9 mm	38 mm	50 pcs	A4-7981-03.9X038
4.2 mm	10 mm	100 pcs	A4-7981-04.2X010
4.2 mm	16 mm	100 pcs	A4-7981-04.2X016
4.2 mm	19 mm	100 pcs	A4-7981-04.2X019
4.2 mm	22 mm	100 pcs	A4-7981-04.2X022
4.2 mm	25 mm	100 pcs	A4-7981-04.2X025
4.2 mm	32 mm	50 pcs	A4-7981-04.2X032
4.2 mm	38 mm	50 pcs	A4-7981-04.2X038
4.2 mm	45 mm	50 pcs	A4-7981-04.2X045
4.2 mm	50 mm	25 pcs	A4-7981-04.2X050
4.8 mm	13 mm	100 pcs	A4-7981-04.8X013
4.8 mm	16 mm	100 pcs	A4-7981-04.8X016
4.8 mm	19 mm	50 pcs	A4-7981-04.8X019
4.8 mm	22 mm	50 pcs	A4-7981-04.8X022
4.8 mm	25 mm	50 pcs	A4-7981-04.8X025
4.8 mm	32 mm	50 pcs	A4-7981-04.8X032
4.8 mm	38 mm	50 pcs	A4-7981-04.8X038
4.8 mm	45 mm	25 pcs	A4-7981-04.8X045
4.8 mm	50 mm	25 pcs	A4-7981-04.8X050
5.5 mm	16 mm	50 pcs	A4-7981-05.5X016
5.5 mm	32 mm	25 pcs	A4-7981-05.5X032
5.5 mm	38 mm	25 pcs	A4-7981-05.5X038
5.5 mm	50 mm	25 pcs	A4-7981-05.5X050
6.3 mm	19 mm	50 pcs	A4-7981-06.3X019
6.3 mm	25 mm	25 pcs	A4-7981-06.3X025
6.3 mm	32 mm	25 pcs	A4-7981-06.3X032

Size Selection

Select the required nominal screw diameter and length according to the material, mounting hole and components being fastened. Available lengths differ between diameters, and the number of screws per box is fixed for each dimensional configuration.

Ensure that the selected self-tapping screw is compatible with the material and installation conditions. A suitable pilot hole may be required depending on the substrate.
