Osculati DIN 963 Stainless Steel Countersunk Machine Screw Sets with Nuts and Washers M3–M8

ID 1402559

$ 5.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

2 pcs
3 pcs
5 pcs
8 pcs
7 pcs
4 pcs

Osculati stainless steel fastening sets combine DIN 963 slotted countersunk head machine screws with matching DIN 934 hex nuts and DIN 125 flat washers. The flat countersunk screw heads are designed for flush installation in suitably prepared recesses, while the nuts and washers provide the accompanying fastening components for compatible assemblies. Available in eight sizes from M3×20 to M8×60 mm, these sets are supplied in blister packs with quantities ranging from 2 to 8 according to the selected dimensions. Suitable for marine hardware, equipment installation and general mechanical fastening applications.

Description
Ask a Question

Osculati DIN 963 Stainless Steel Slotted Countersunk Screw Sets with Nuts and Washers

Osculati stainless steel fastening sets combine slotted countersunk head machine screws according to DIN 963 with corresponding DIN 934 hexagonal nuts and DIN 125 flat washers. These assortments provide the principal components needed for compatible threaded fastening connections.

The DIN 963 machine screws feature flat countersunk heads with a straight-slot drive. The tapered head underside fits into a suitably prepared countersunk recess, allowing the screw head to sit flush with the mounting surface. A compatible flat-blade screwdriver is used for installation and removal.

The accompanying DIN 934 hexagonal nuts provide threaded fastening, while the DIN 125 flat washers help distribute the clamping force over the contact surface. The screws have metric threads and are intended for use with matching nuts or threaded holes.

The stainless steel construction provides corrosion resistance for suitable marine, outdoor and general mechanical applications. The range includes eight dimensional variants with nominal metric thread sizes M3, M4, M5, M6 and M8 and screw lengths from 20 to 60 mm.

Each variant is supplied in a blister pack with a specified screw quantity. Matching nuts and washers are included, although their individual quantities are not separately stated in the supplied catalogue information.

Technical Specifications

Brand	Osculati
Product Type	Countersunk Machine Screw Set with Nut and Washer
Material	Stainless Steel
Screw Standard	DIN 963
Screw Head Type	Flat Countersunk Head
Screw Drive	Slotted
Nut Standard	DIN 934
Washer Standard	DIN 125
Thread Type	Metric Machine Thread
Available Thread Sizes	M3, M4, M5, M6, M8
Screw Length Range	20–60 mm
Listed Screw Quantity	2–8 pcs, depending on size

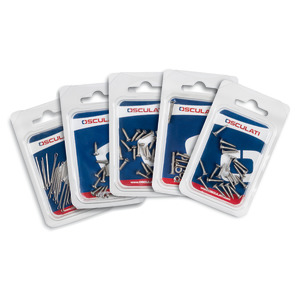

Packaging	Blister Pack
Number of Variants	8

Included Components

DIN 963 stainless steel machine screws with flat countersunk heads and slotted drives.
DIN 934 hexagonal nuts for compatible metric threaded connections.
DIN 125 flat washers for use beneath the nuts or appropriate bearing surfaces.

Features and Applications

Stainless steel construction for corrosion resistance.
Flat countersunk screw heads for flush installation in suitable recesses.
Straight-slot drive for use with a matching screwdriver.
Metric threads for fastening with compatible nuts.
Includes corresponding nuts and washers.
Suitable for marine fittings, mechanical assemblies and general maintenance work.
Available in eight dimensional configurations.

Available Sizes and Pack Quantities

Thread Size	Screw Length	Listed Quantity	Osculati Part No.
M3	20 mm	8 pcs	37.052.01
M4	20 mm	7 pcs	37.052.02
M4	40 mm	5 pcs	37.052.04
M5	20 mm	5 pcs	37.052.06
M5	50 mm	3 pcs	37.052.08
M6	30 mm	4 pcs	37.052.10
M6	60 mm	2 pcs	37.052.12
M8	60 mm	2 pcs	37.052.16

Size Selection

Select the required nominal metric thread size and screw length according to the thickness of the connected components and the available mounting space. The countersunk recess must accommodate the screw head, and the thread engagement must be suitable for the selected connection.

The listed screw quantity varies by size. Matching DIN 934 nuts and DIN 125 washers are supplied with the screws.
