Osculati DIN 7983 Stainless Steel Raised Countersunk Head Self-Tapping Screws Ø2.9–6.3 mm

ID 1402538

$ 5.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

3 pcs
10 pcs
18 pcs
20 pcs
4 pcs
9 pcs
13 pcs

Osculati DIN 7983 self-tapping screws feature a raised countersunk head with a cross-recessed drive, combining a tapered underside for installation in a suitable countersunk hole with a slightly domed upper profile. Designed for fastening compatible panels, fittings and components, these screws are available in eight dimensional configurations with diameters from 2.9 to 6.3 mm and lengths from 13 to 50 mm. Each size is supplied in a blister pack containing 3 to 20 pieces, depending on the selected variant. The stainless steel construction provides corrosion resistance for suitable marine and general fastening applications.

Description
Ask a Question

Osculati DIN 7983 Stainless Steel Raised Countersunk Head Self-Tapping Screws

Osculati DIN 7983 self-tapping screws feature a raised countersunk head with a cross-recessed drive. Their head design combines a tapered underside with a rounded upper surface, providing a neat, slightly raised finish after installation.

The tapered portion of the head fits into a suitably prepared countersunk recess, while the domed upper profile remains visible above the mounting surface. This distinguishes DIN 7983 raised countersunk screws from DIN 7982 flat countersunk self-tapping screws.

The self-tapping thread is designed to form a mating thread in compatible materials. Depending on the workpiece material and thickness, a suitable pilot hole may be necessary. The cross-recessed drive allows installation using a matching screwdriver or driver bit.

The screws are suitable for general fastening and maintenance applications involving compatible fittings, panels and mechanical components. Stainless steel construction provides corrosion resistance for appropriate marine and outdoor installations.

The range includes eight variants with nominal diameters from 2.9 to 6.3 mm and lengths from 13 to 50 mm. Each dimensional configuration is supplied in a blister pack containing a specified number of screws.

Technical Specifications

Product Type	Self-Tapping Screw
Brand	Osculati
Standard	DIN 7983
Material	Stainless Steel
Head Type	Raised Countersunk Head
Drive Type	Cross-Recessed
Thread Type	Self-Tapping
Available Diameters	2.9, 3.5, 3.9, 4.2, 4.8, 5.5, 6.3 mm
Available Length Range	13–50 mm
Pack Quantity	3–20 pcs, depending on size
Packaging	Blister Pack
Number of Variants	8

Features and Applications

DIN 7983 self-tapping screw construction.
Raised countersunk head with a tapered underside and domed upper profile.
Cross-recessed drive for installation using a compatible driver bit.
Self-tapping thread for fastening in suitable materials.
Stainless steel construction for corrosion resistance.
Suitable for compatible panels, fittings and general mechanical assemblies.
Available in eight dimensional configurations.

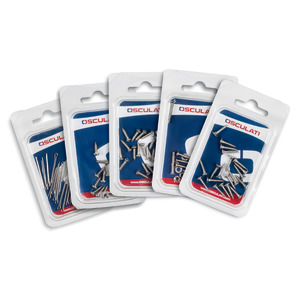

Supplied in blister packs containing 3 to 20 screws, depending on size.

Available Sizes and Pack Quantities

Diameter	Length	Pack Quantity	Osculati Part No.
2.9 mm	13 mm	20 pcs	37.051.01
3.5 mm	16 mm	18 pcs	37.051.02
3.9 mm	19 mm	13 pcs	37.051.04
3.9 mm	25 mm	10 pcs	37.051.06
4.2 mm	32 mm	9 pcs	37.051.08
4.8 mm	25 mm	9 pcs	37.051.10
5.5 mm	50 mm	4 pcs	37.051.14
6.3 mm	50 mm	3 pcs	37.051.16

Size Selection

Select the required nominal screw diameter and length according to the material and components being fastened. Check that the countersunk mounting recess accommodates the raised head profile and that the screw provides suitable thread engagement.

Pack quantities vary by size and are specified for each Osculati part number.
