Osculati AISI 316 Stainless Steel Split Spring Lock Washers DIN 127 / UNI 1751, M3–M12

ID 1403315

$ 11.23

1-2 weeks delivery time

Diameter, mm:

Item:

50 pcs
100 pcs
200 pcs

Osculati DIN 127 / UNI 1751 split spring lock washers, also known as Grower washers, are manufactured from AISI 316 stainless steel and feature a split circular profile with offset ends. Designed for installation beneath compatible bolt heads or nuts, these washers provide a spring action when compressed and are traditionally used to help resist loosening in threaded fastening assemblies. AISI 316 stainless steel offers corrosion resistance for suitable marine, outdoor and mechanical applications. Available in seven nominal sizes from M3 to M12, with box quantities of 50, 100 or 200 pieces depending on size.

Description
Ask a Question

Osculati AISI 316 Stainless Steel Split Spring Lock Washers DIN 127 / UNI 1751

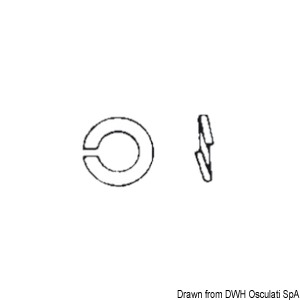

Osculati split spring lock washers, commonly known as Grower washers, are manufactured from AISI 316 stainless steel and are listed according to DIN 127 / UNI 1751. These washers feature a circular split-ring construction with offset ends and are designed for use in compatible metric threaded fastening assemblies.

The split and helical profile provides spring action when the washer is compressed between a bolt head or nut and the mounting surface. This construction is traditionally used to add resistance to loosening in suitable fastening connections.

Unlike conventional DIN 125 flat washers, Grower washers are not flat in their uncompressed state. Their split-ring design allows elastic deformation during tightening, while the cut ends can interact with the adjoining contact surfaces.

AISI 316 stainless steel provides corrosion resistance for suitable marine, outdoor and general mechanical applications. These washers can be used with compatible bolts, machine screws and nuts in equipment fittings, mounting brackets and mechanical assemblies.

The range includes seven nominal metric fastening sizes from M3 to M12. Each version is identified by an individual Osculati part number and supplied in a specified box quantity.

Technical Specifications

Brand	Osculati
Product Type	Split Spring Lock Washer / Grower Washer
Standards	DIN 127 / UNI 1751
Material	AISI 316 Stainless Steel
Design	Split Circular Spring Washer
Profile	Helical Ring with Offset Ends
Available Nominal Sizes	M3, M4, M5, M6, M8, M10, M12
Box Quantities	50, 100, 200 pcs
Number of Variants	7

Features and Applications

Manufactured from corrosion-resistant AISI 316 stainless steel.
Split spring washer design according to DIN 127 / UNI 1751.
Helical profile with offset ends provides spring action under compression.
Traditionally used to help resist loosening in suitable threaded connections.
Designed for installation beneath compatible bolt heads or nuts.
Suitable for appropriate marine fittings, equipment brackets and mechanical assemblies.
Available in seven nominal metric sizes from M3 to M12.
Supplied in boxes containing 50 to 200 washers, depending on size.

Available Sizes and Part Numbers

Nominal Size	Box Quantity	Osculati Part No.
M3	200 pcs	A4-127-03
M4	200 pcs	A4-127-04
M5	200 pcs	A4-127-05
M6	200 pcs	A4-127-06
M8	200 pcs	A4-127-08
M10	100 pcs	A4-127-10
M12	50 pcs	A4-127-12

Size Selection

Select the nominal washer size according to the corresponding metric bolt or machine screw. Check that the washer fits the fastening assembly and that its bearing surfaces are suitable for the intended installation.

Each size has a fixed box quantity as listed above. Exact internal diameters, outside diameters and washer thicknesses are not specified in the supplied catalogue.

Split spring washers should not be relied upon as the sole locking method for critical or high-vibration connections without verifying their suitability for the application.
