ID
1403559
$ 21.44
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
Length, mm:
- 16
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
Item:
- 25 pcs
- 50 pcs
- 100 pcs
- 200 pcs
Osculati DIN 966 / UNI 7689 machine screws are manufactured from A2 (AISI 304) stainless steel and feature a raised countersunk head with a cross-recessed drive. The tapered underside fits into a matching countersunk recess, while the slightly domed upper section remains visible above the mounting surface. Their metric threads are designed for fastening components using compatible nuts or tapped holes. The range includes 20 dimensional configurations across four nominal thread sizes from M3 to M6, with lengths from 16 to 60 mm. Supplied in cardboard boxes containing 25, 50, 100 or 200 screws, depending on size.
- Description
- Ask a Question
-
Osculati A2 AISI 304 Stainless Steel Phillips Raised Countersunk Machine Screws DIN 966 / UNI 7689
Osculati raised countersunk machine screws are manufactured from A2 (AISI 304) stainless steel and are listed according to DIN 966 / UNI 7689. They feature a raised countersunk head, a cross-recessed drive and a metric threaded shaft for fastening compatible mechanical components and fittings.

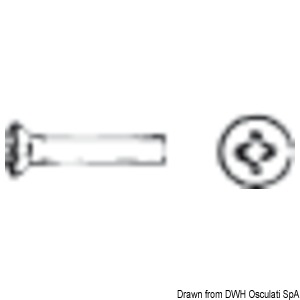

The head combines a tapered underside with a slightly convex upper section. The tapered portion fits into a matching countersunk recess, while the rounded top remains raised above the mounting surface. This provides a different appearance from a flat countersunk screw, whose head is intended to sit flush with the surface.
The cross-recessed drive allows installation and removal using a matching Phillips screwdriver or driver bit. The metric thread is designed to engage with compatible nuts or internally threaded holes, making these screws suitable for a variety of mechanical fastening applications.
Unlike DIN 7983 self-tapping screws, DIN 966 machine screws are not designed to cut their own threads into the mounting material. Their installation requires a compatible threaded connection.
A2 (AISI 304) stainless steel offers corrosion resistance for general indoor, outdoor and suitable marine applications. For prolonged saltwater exposure or environments with high chloride concentrations, the suitability of this stainless steel grade should be assessed.
The range includes 20 dimensional configurations across four nominal metric thread sizes: M3, M4, M5 and M6. Available lengths range from 16 to 60 mm, depending on the selected thread size. Each version has an individual Osculati part number and is supplied in a cardboard box containing a specified number of screws.
Technical Specifications
Brand Osculati Product Type Raised Countersunk Machine Screw Standards DIN 966 / UNI 7689 Material A2 / AISI 304 Stainless Steel Head Type Raised Countersunk / Oval Head Drive Type Cross-Recessed / Phillips Thread Type Metric Machine Thread Available Thread Sizes M3, M4, M5, M6 Available Length Range 16–60 mm Box Quantities 25, 50, 100, 200 pcs Packaging Cardboard Box Number of Variants 20 Dimensions Format Nominal Thread Diameter × Screw Length
Features and Applications
- Manufactured from A2 (AISI 304) stainless steel.
- DIN 966 / UNI 7689 raised countersunk machine screw design.
- Tapered head underside for installation in a matching countersunk recess.
- Slightly domed upper head section provides a raised finish.
- Cross-recessed drive for use with a compatible Phillips screwdriver.
- Metric threads for use with compatible nuts or tapped holes.
- Suitable for appropriate mechanical assemblies, mounting brackets, equipment fittings and general fastening applications.
- Available in four nominal thread sizes and 20 dimensional configurations.
- Supplied in cardboard boxes containing 25 to 200 screws.
Available Sizes and Part Numbers
Thread Size Length Box Quantity Osculati Part No. M3 25 mm 200 pcs A2-966-03X025 M4 16 mm 100 pcs A2-966-04X016 M4 20 mm 100 pcs A2-966-04X020 M4 30 mm 100 pcs A2-966-04X030 M4 40 mm 50 pcs A2-966-04X040 M5 20 mm 100 pcs A2-966-05X020 M5 25 mm 50 pcs A2-966-05X025 M5 30 mm 50 pcs A2-966-05X030 M5 35 mm 50 pcs A2-966-05X035 M5 40 mm 50 pcs A2-966-05X040 M5 45 mm 25 pcs A2-966-05X045 M5 50 mm 25 pcs A2-966-05X050 M6 20 mm 50 pcs A2-966-06X020 M6 25 mm 50 pcs A2-966-06X025 M6 30 mm 50 pcs A2-966-06X030 M6 35 mm 50 pcs A2-966-06X035 M6 40 mm 25 pcs A2-966-06X040 M6 45 mm 25 pcs A2-966-06X045 M6 50 mm 25 pcs A2-966-06X050 M6 60 mm 25 pcs A2-966-06X060
Size Selection
Select the required nominal metric thread size and screw length according to the components being fastened. Ensure that the screw is compatible with the corresponding nut or tapped hole and that the mounting surface has a suitable countersunk recess.
Available lengths vary by thread size. Each dimensional configuration has a fixed box quantity as shown above.
The exact thread pitch, drive recess size, strength class and countersink dimensions are not specified in the supplied catalogue information.
-
