ID
1311229
$ 2,565.30
1-2 weeks delivery time
-
+
The Aluminium Gang Plank 4m NEN 526 is a 4-meter floating aluminium gangway produced to NEN-EN 526 standards, designed for inland shipping with a special openwork anti-slip grid. It includes removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and holds a Bureau Veritas certificate.
- Description
- Ask a Question
-

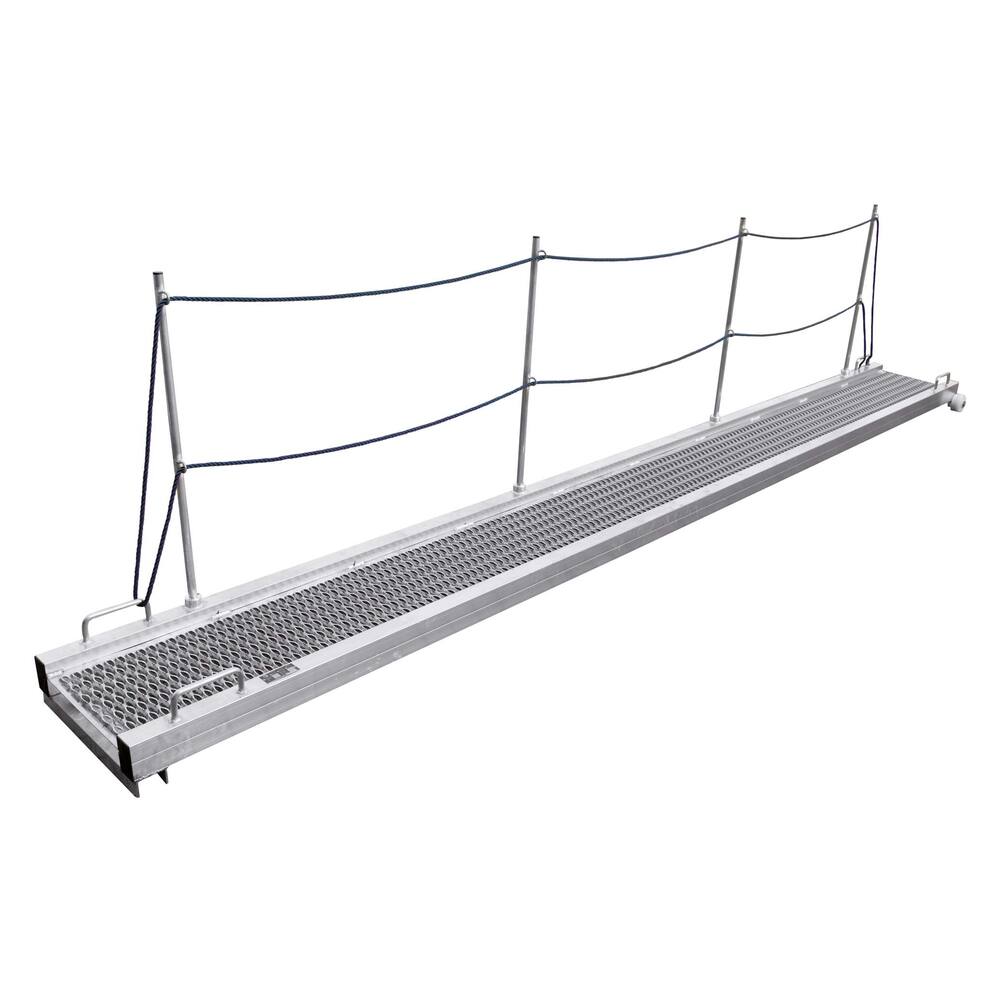

Aluminium Gang Plank 4m NEN 526
Produced according to the NEN-EN 526 standard, this floating aluminium gangway is suitable for inland shipping and designed with a special openwork anti-slip profiled grid, reducing slip risk even under snow, ice, or mud. It includes removable secured stanchions with two rope guiding eyes each, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), and comes with wheels on one end. The plank holds a NEN-EN 526 certificate issued by Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.340
- Number stanchions: 3
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: Yes
- Weight: 36 kg
- Tube: Single tube
- Length: 400 cm
-
