The Aluminium Gang Plank 5m NEN 526 is a 5-meter floating aluminium plank meeting NEN-EN 526 standards for inland shipping, featuring a special openwork anti-slip grid to reduce slipping risks. It includes removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and is certified by Bureau Veritas.
- Description
- Ask a Question
-
Aluminium Gang Plank 5m NEN 526

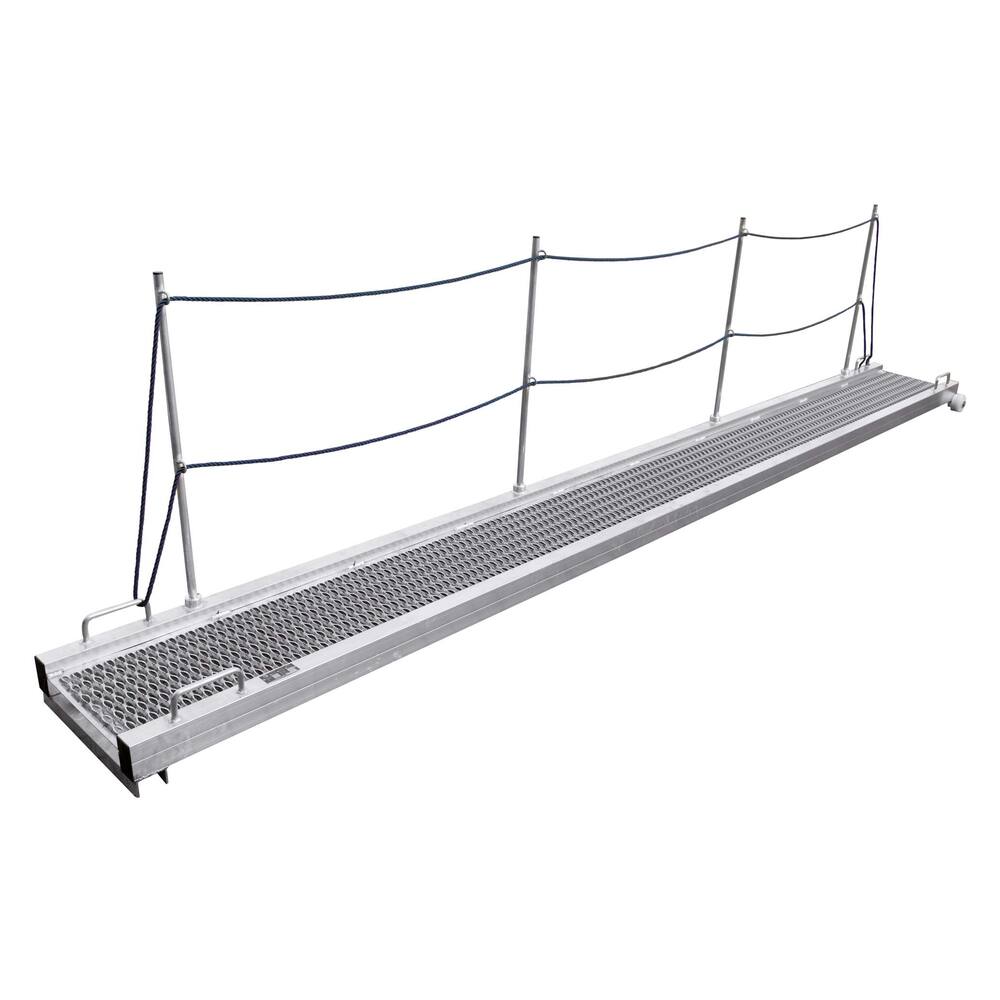

Manufactured to meet NEN-EN 526 standards for gangways up to 8 meters, this floating aluminium plank is designed for normal inland shipping (not for passenger vessels). It features a special openwork anti-slip profiled grid that significantly reduces slipping risks in snow, ice, mud, or oily conditions. The plank includes removable but secured stanchions, each with two rope guiding eyes, welded stanchion pots, and black PP Multi 3 strand twisted rope (12 mm diameter). Delivered complete with wheels on one end and holds a NEN-EN 526 certificate from Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.350
- Number stanchions: 4
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: Yes
- Weight: 45 kg
- Tube: Single tube
- Length: 500 cm
-
