ID
1311227
$ 1,700.90
1-2 weeks delivery time
-
+
The Aluminium Gang Plank 2m NEN 526 is a 2-meter floating aluminium gangway compliant with NEN-EN 526 standards for inland shipping, featuring a special openwork anti-slip grid to reduce slipping risks. It includes removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), and wheels on one end, certified by Bureau Veritas.
- Description
- Ask a Question
-

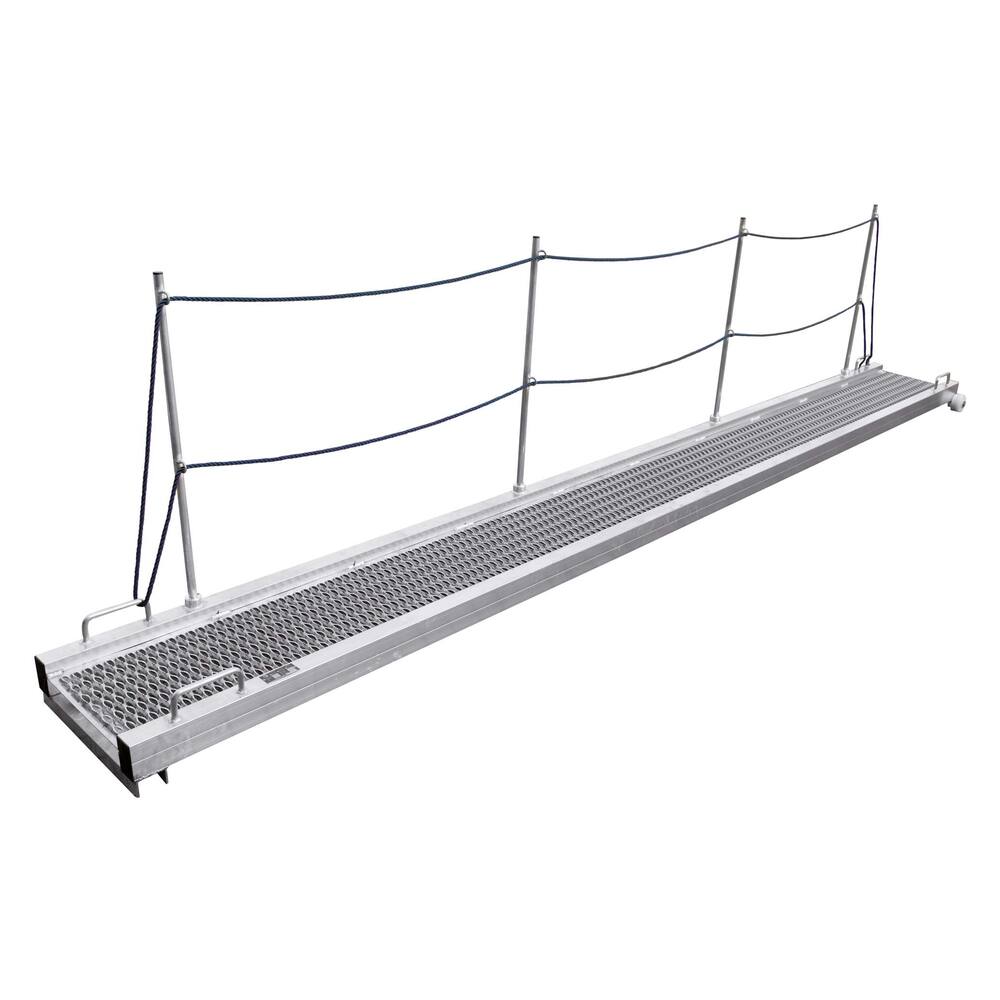

Aluminium Gang Plank 2m NEN 526
Compliant with NEN-EN 526, the European standard for gangways up to 8 meters and intended for normal inland shipping (not for passenger vessels). This floating aluminium gangway features a special openwork anti-slip profiled grid that minimizes slipping even in snow, ice, oil, mud, or residue conditions. It includes removable but secured stanchions, each with two rope guiding eyes, and welded stanchion pots. The plank is fitted with black PP Multi 3 strand twisted rope (12 mm diameter) and delivered with wheels on one end. It carries a NEN-EN 526 certificate from Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.320
- Number stanchions: 2
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: No
- Weight: 18 kg
- Tube: Single tube
- Length: 200 cm
-
