The Aluminium Gang Plank 7m NEN 526 is a 7-meter floating aluminium gangway built to NEN-EN 526 standards, featuring a special openwork anti-slip profiled grid for enhanced safety. It includes removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and holds a Bureau Veritas certificate.
- Description
- Ask a Question
-

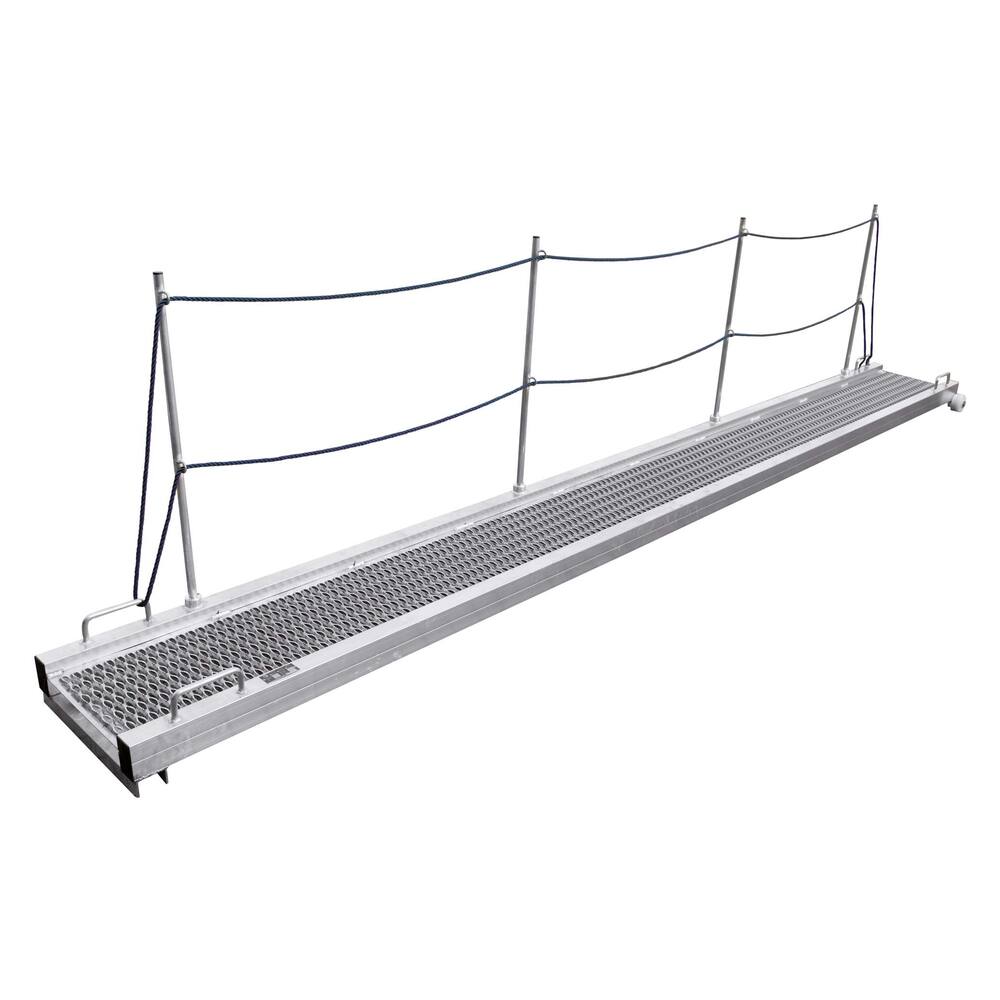

Aluminium Gang Plank 7m NEN 526
Built to NEN-EN 526 standards, this 7-meter floating aluminium gangway offers a special openwork anti-slip profiled grid to enhance safety in slippery conditions. It includes removable secured stanchions with two rope guiding eyes each, welded stanchion pots, and black PP Multi 3 strand twisted rope (12 mm diameter). Delivered complete with wheels on one end and a NEN-EN 526 certificate.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.370
- Number stanchions: 5
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: Yes
- Weight: 63 kg
- Tube: Single tube
- Length: 700 cm
-
