ID
1311231
$ 3,759.76
1-2 weeks delivery time
-
+
The Aluminium Gang Plank 6m NEN 526 is a 6-meter floating aluminium gangway designed to NEN-EN 526 standards for inland shipping, featuring a special openwork anti-slip grid to prevent slipping in challenging conditions. It includes removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and Bureau Veritas certification.
- Description
- Ask a Question
-

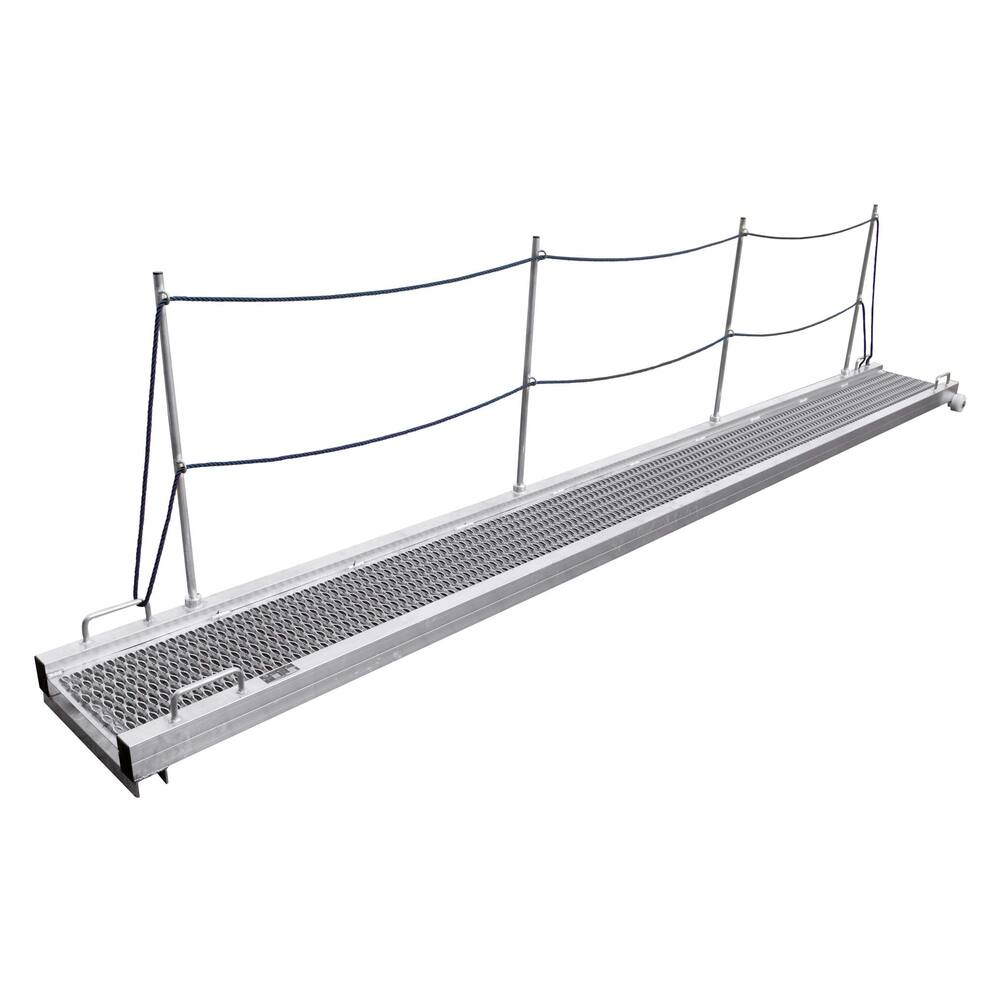

Aluminium Gang Plank 6m NEN 526
Designed according to NEN-EN 526 for inland shipping, this 6-meter floating aluminium gangway features a special openwork anti-slip grid to prevent slipping even in challenging conditions such as snow or mud. It is equipped with removable secured stanchions with two rope guiding eyes each, welded stanchion pots, and black PP Multi 3 strand twisted rope (12 mm diameter). Delivered with wheels on one end and certified by Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.360
- Number stanchions: 4
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: Yes
- Weight: 54 kg
- Tube: Single tube
- Length: 600 cm
-
