ID
1311233
$ 5,006.62
1-2 weeks delivery time
-
+
The Aluminium Gang Plank 8m NEN 526 is an 8-meter floating aluminium gangway compliant with NEN-EN 526 standards, designed for safe access in inland shipping. It features a special openwork anti-slip grid, removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and is certified by Bureau Veritas.
- Description
- Ask a Question
-

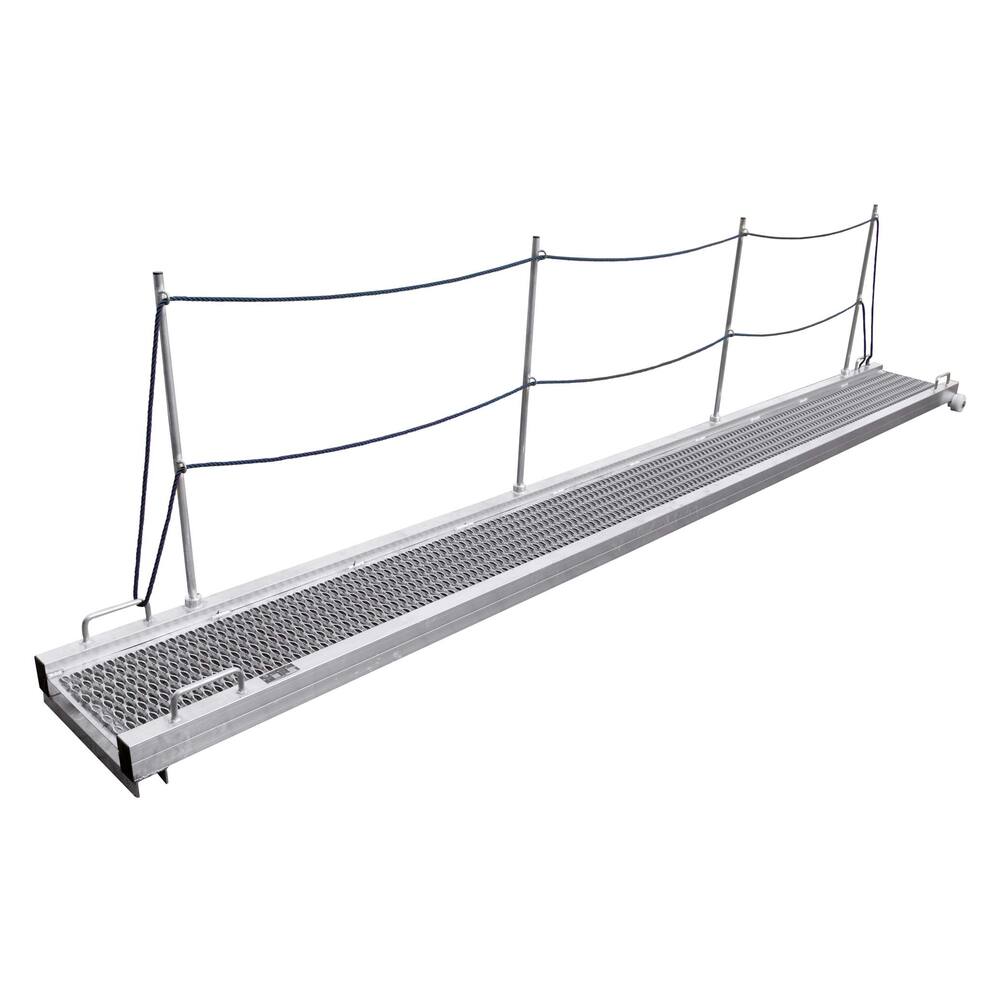

Aluminium Gang Plank 8m NEN 526
This 8-meter floating aluminium gangway meets NEN-EN 526 standards and is designed for safe access in inland shipping. Featuring a special openwork anti-slip grid, it reduces slipping risks in adverse conditions. The plank comes with removable secured stanchions each with two rope guiding eyes, welded stanchion pots, and black PP Multi 3 strand twisted rope (12 mm diameter). Wheels are included on one end, and the product holds a NEN-EN 526 certificate from Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.380
- Number stanchions: 5
- Dimensions tube: 150 x 60 mm
- ES-TRIN approved: Yes
- Weight: 72 kg
- Tube: Single tube
- Length: 800 cm
-
