ID
1311228
$ 2,233.51
1-2 weeks delivery time
-
+
The Aluminium Gang Plank 3m NEN 526 is a 3-meter floating aluminium plank built to NEN-EN 526 standards, equipped with an openwork anti-slip grid for safety in slippery conditions. It has removable secured stanchions with rope guiding eyes, welded stanchion pots, black PP Multi 3 strand twisted rope (12 mm diameter), wheels on one end, and is Bureau Veritas certified.
- Description
- Ask a Question
-

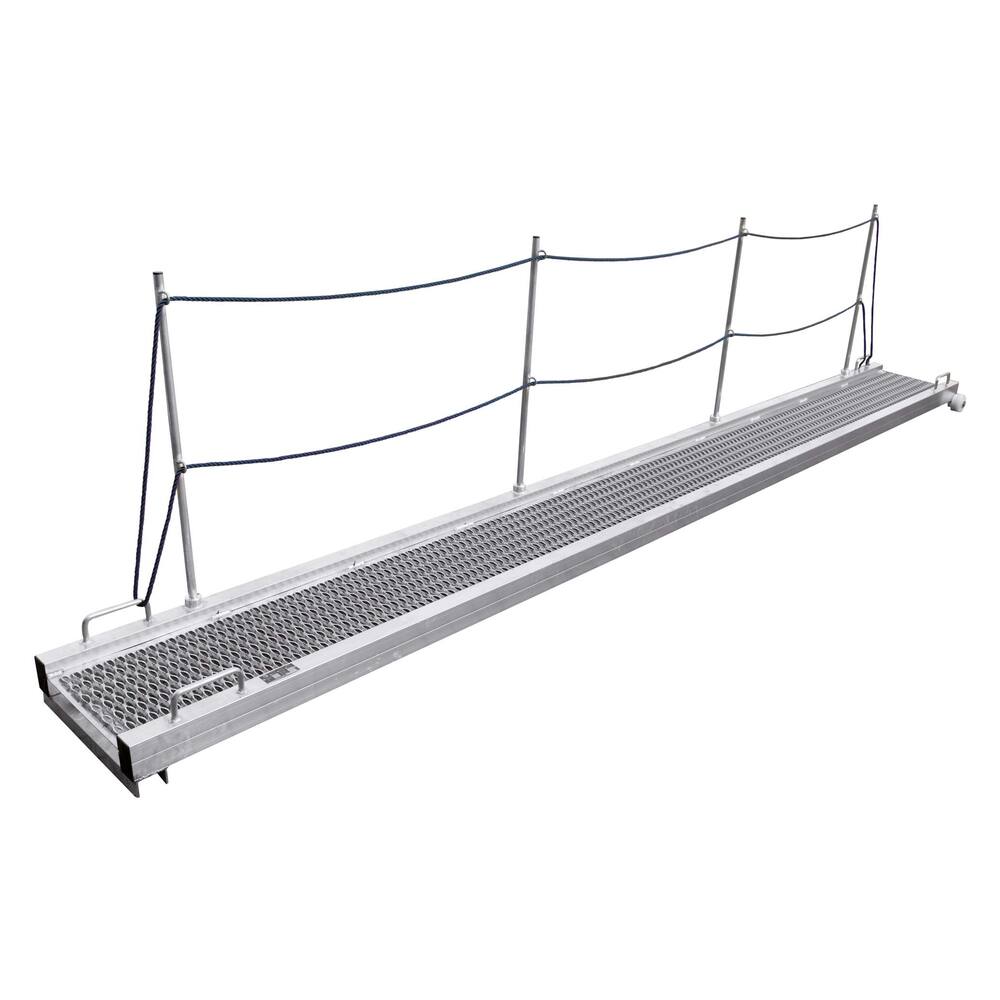

Aluminium Gang Plank 3m NEN 526
Constructed to meet NEN-EN 526 standards for inland shipping gangways up to 8 meters, this floating aluminium plank features an openwork anti-slip grid that ensures safety in slippery conditions including snow, ice, and mud. It is equipped with removable secured stanchions, each having two rope guiding eyes, welded stanchion pots, and black PP Multi 3 strand twisted rope (12 mm diameter). Delivered complete with wheels on one end and certified by Bureau Veritas.
- Material: seawater-resistant aluminium, alloy 6082 or 5754, hardening T5/T6
- Height at gangplank length 200-700 cm: 100 mm
- Height at gangplank length 800 cm: 150 mm
- Width: 520 mm (650 mm including wheels), 400 mm between sides
- Highest stanchion: 940/995 mm
- Load capacity: 3 persons, evenly distributed
- Product code: 58.24.330
- Number stanchions: 3
- Dimensions tube: 100 x 60 mm
- ES-TRIN approved: No
- Weight: 27 kg
- Tube: Single tube
- Length: 300 cm
-
