Tecnoseal 07080–07110 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring

Name: Tecnoseal 07080–07110 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring
SKU: Tecnoseal 07080

ID 1406660

$ 937.11

1-2 weeks delivery time

Shaft Diameter:

Item:

680 g
570 g
600 g
520 g
670 g
620 g

The Tecnoseal 07080–07110 propeller shaft grounding system is a marine grounding kit supplied with one brush holder containing two graphite brushes and one silver-plated contact ring. Available for propeller shaft diameters of 80, 85, 90, 95, 100, 105 and 110 mm, all versions have a catalogue dimension a of 3 mm and height h of 50 mm. Kit weights range from 0.52 to 0.68 kg. The graphite brushes maintain sliding electrical contact with the ring fitted around the rotating propeller shaft.

Description
Ask a Question

Tecnoseal 07080–07110 Propeller Shaft Grounding System with Dual Graphite Brushes and Silver-Plated Ring

The Tecnoseal 07080–07110 Propeller Shaft Grounding System is a marine shaft grounding kit designed to provide an electrical contact path between the rotating propeller shaft and the vessel's grounding connection.

Each kit includes one brush holder with two graphite brushes and one silver-plated contact ring. Seven sizes are available for propeller shaft diameters from 80 to 110 mm.

Key Features

Manufacturer: Tecnoseal
Product Type: Propeller shaft grounding system
Application: Marine propeller shaft grounding
Available Shaft Diameters: 80, 85, 90, 95, 100, 105 and 110 mm
Brushes: 2 graphite brushes
Brush Holder: 1 included
Contact Ring: Silver-plated
Dimension a: 3 mm (0.12 in)
Dimension h: 50 mm (1.97 in)
Kit Weight: 0.52–0.68 kg

Available Models and Technical Specifications

Product Code	Shaft Diameter (Ø)	Dimension a	Dimension h	Weight
07080	80 mm	3 mm	50 mm	0.52 kg
07085	85 mm	3 mm	50 mm	0.57 kg
07090	90 mm	3 mm	50 mm	0.60 kg
07095	95 mm	3 mm	50 mm	0.62 kg
07100	100 mm	3 mm	50 mm	0.67 kg
07105	105 mm	3 mm	50 mm	0.67 kg
07110	110 mm	3 mm	50 mm	0.68 kg

Kit Contents

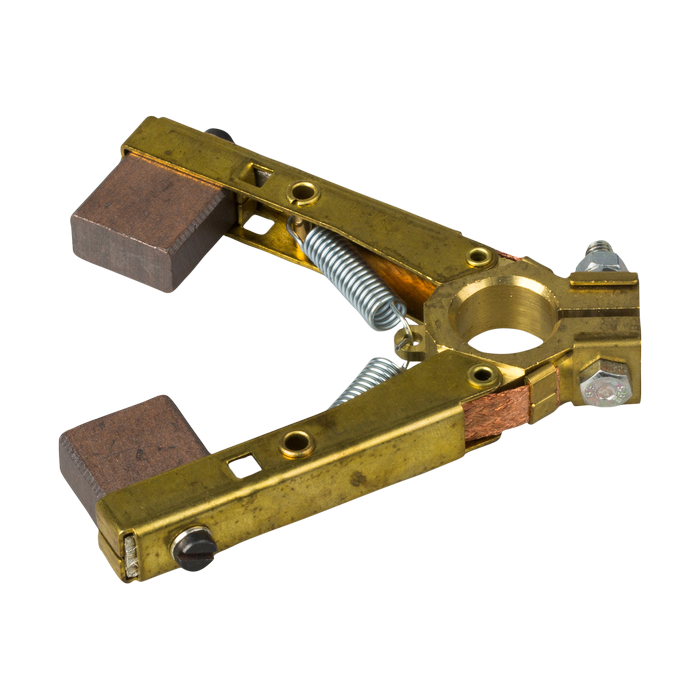

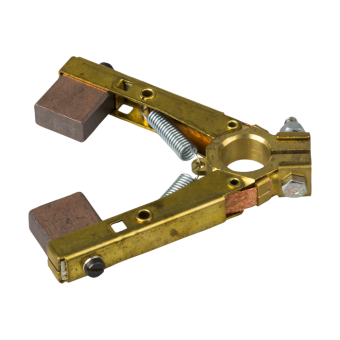

1 × Brush holder
2 × Graphite brushes
1 × Silver-plated shaft contact ring

How the Shaft Grounding System Works

The silver-plated ring is fitted around the propeller shaft and provides a conductive contact surface. Two graphite brushes in the brush holder maintain sliding electrical contact with the ring as the shaft rotates.

This arrangement provides an electrical contact path between the rotating shaft and the grounding connection when correctly installed as part of the vessel's electrical system.

Choosing the Correct Size

Select the grounding kit according to the diameter of the propeller shaft. Tecnoseal offers seven versions covering shaft diameters from 80 to 110 mm.

All versions have the same catalogue dimensions a = 3 mm and h = 50 mm. The shaft diameter and kit weight vary by model.

Installation and Maintenance

Mount the silver-plated ring on the shaft and position the brush holder so that both graphite brushes maintain contact with the ring.

Check the installation space, shaft diameter and grounding connection before fitting. During routine maintenance, inspect the graphite brushes and contact ring for wear and contamination.

Supply

One Tecnoseal propeller shaft grounding kit in the selected diameter, including one brush holder with two graphite brushes and one silver-plated contact ring.
