Tecnoseal Zinc Sacrificial Anodes for Rudders & Trim Tabs

Tecnoseal Zinc Sacrificial Anodes for Rudders & Trim Tabs – Oval, Double Oval & Teardrop Plates

The Tecnoseal zinc sacrificial anode range includes compact plate-type anodes designed for rudders, flaps and trim tabs. The available versions use oval, double oval and teardrop profiles and are supplied in several dimensions, weights and fixing configurations.

The range includes Tecnoseal codes 00200, 00201, 00202, 00203 and 00204. Two of these models are also represented in the Osculati catalogue: Tecnoseal 00203 corresponds to Osculati 43.701.00, while Tecnoseal 00204 corresponds to Osculati 43.702.00.

Key Features

• Brand: Tecnoseal
• Product Type: Zinc sacrificial anode
• Material: Zinc
• Applications: Rudders, flaps and trim tabs
• Available Shapes: Oval plate, double oval plate and teardrop plate
• Available Lengths: 85, 93, 112, 117 and 145 mm
• Weight Range: 0.19–0.53 kg
• Fixing Hole Centre Distance: 33–52 mm depending on model
• Available Tecnoseal Codes: 00200, 00201, 00202, 00203, 00204
• Osculati Cross-References: 43.701.00 and 43.702.00

Available Models and Technical Specifications

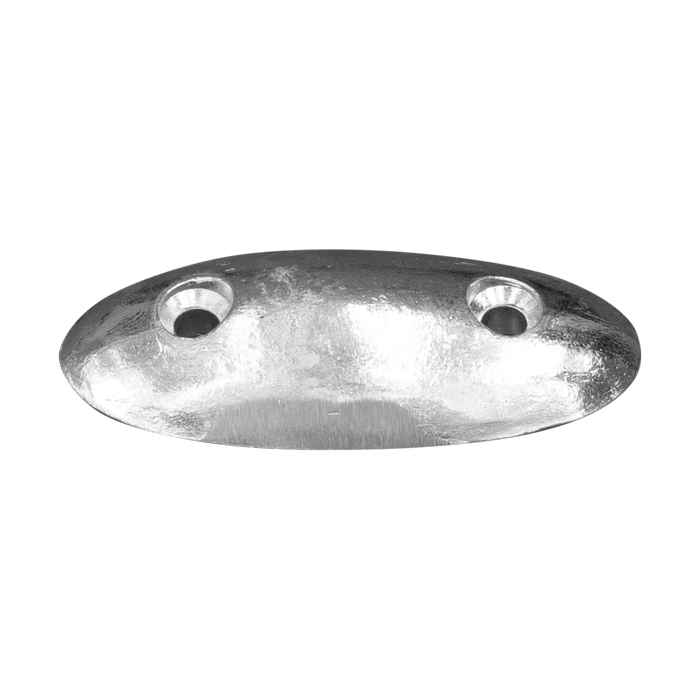

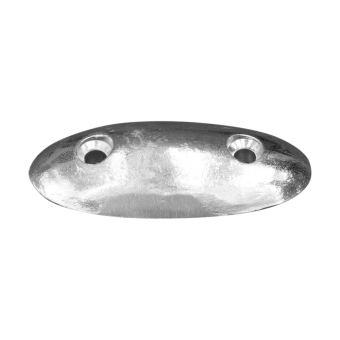

Tecnoseal 00200 Zinc Oval Plate

• Shape: Oval plate
• Length: 93 mm / 3.66 in
• Width: 40 mm / 1.57 in
• Height: 17 mm / 0.67 in
• Fixing Hole Centres: 50 mm / 1.97 in
• Recess Diameter: 13 mm / 0.51 in
• Hole Diameter: 6.5 mm / 0.26 in
• Weight: 0.19 kg / 0.42 lb

Tecnoseal 00201 Zinc Oval Plate

• Shape: Oval plate
• Length: 117 mm / 4.61 in
• Width: 43 mm / 1.69 in
• Height: 20 mm / 0.79 in
• Fixing Hole Centres: 50 mm / 1.97 in
• Recess Diameter: 13 mm / 0.51 in
• Hole Diameter: 7 mm / 0.28 in
• Weight: 0.33 kg / 0.73 lb

Tecnoseal 00202 Zinc Double Oval Plate

• Shape: Double oval plate
• Length: 112 mm / 4.41 in
• Width: 66 mm / 2.60 in
• Height: 19 mm / 0.75 in
• Fixing Hole Centres: 40 mm / 1.57 in
• Recess Diameter: 10 mm / 0.39 in
• Hole Diameter: 5.5 mm / 0.22 in
• Weight: 0.46 kg / 1.01 lb

Tecnoseal 00203 / Osculati 43.701.00 Zinc Teardrop Plate

Tecnoseal 00203 is the 85 mm teardrop-shaped zinc anode in this range. The same size is represented in the Osculati catalogue under reference 43.701.00.

• Tecnoseal Code: 00203
• Osculati Reference: 43.701.00
• Shape: Teardrop plate / soap bar form
• Length: 85 mm / 3.35 in
• Width: 47 mm / 1.85 in
• Height: 20 mm / 0.79 in
• Fixing Hole Centres: 33 mm / 1.30 in
• Recess Diameter: 16 mm / 0.63 in
• Hole Diameter: 7 mm / 0.28 in
• Weight: 0.30 kg / 300 g / 0.66 lb

Tecnoseal 00204 / Osculati 43.702.00 Zinc Oval Plate

Tecnoseal 00204 is the 145 mm elongated oval zinc anode in the range. It is also represented in the Osculati catalogue under reference 43.702.00.

• Tecnoseal Code: 00204
• Osculati Reference: 43.702.00
• Shape: Elongated oval plate / soap bar form
• Length: 145 mm / 5.71 in
• Width: 41 mm / 1.61 in
• Height: 23 mm / 0.91 in
• Fixing Hole Centres: 52 mm / 2.05 in
• Hole Diameter: 6.5 mm / 0.26 in
• Tecnoseal Weight: 0.53 kg / 530 g / 1.17 lb
• Osculati Listed Weight: 550 g

Osculati Cross-Reference

For replacement selection, compare the overall dimensions, fixing hole centre distance and fixing hole diameter with the existing anode.
