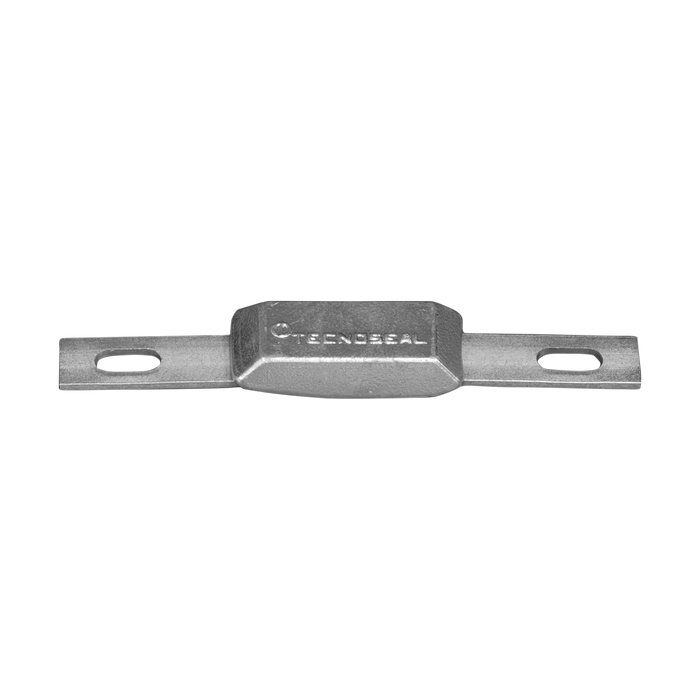

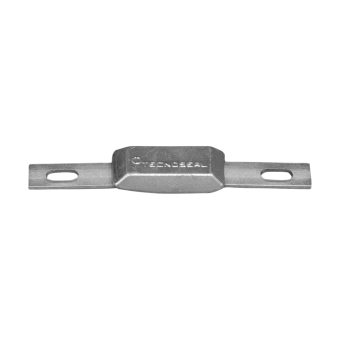

Tecnoseal Zinc Scandinavian Type Bolt-On Sacrificial Anodes with Stainless Steel Strap

ID 1399112

$ 24.33

1-2 weeks delivery time

Size:

95x34x17
95x40x25
75x34x16
110x42x24
101x64x30
120x46x35
127x62x28
140x82x26
220x95x32
215x90x30
220x96x30
260x90x46

Item:

250 g
500 g
1000 g
2000 g
1100 g
1040 g
3600 g
3400 g
3000 g
5500 g

Tecnoseal zinc Scandinavian Type bolt-on sacrificial anodes with stainless steel strap, available in weights from 0.25 to 5.50 kg. The range includes multiple body and strap configurations with body lengths from 75 to 260 mm, overall dimensions i from 117 to 315 mm, mounting slots from 7 × 25 to 13 × 35 mm and stainless steel straps from 150 × 20 × 3 to 340 × 25 × 5 mm. Select the required version according to body dimensions, mounting slot size and strap dimensions.

Description
Ask a Question

Tecnoseal Zinc Scandinavian Type Bolt-On Sacrificial Anodes with Stainless Steel Strap – 0.25–5.50 kg

The Tecnoseal Zinc Scandinavian Type Bolt-On Anodes are sacrificial anodes manufactured with an integrated stainless steel mounting strap. The range includes compact 0.25 kg models through to large 5.50 kg versions, with different body dimensions, mounting-slot sizes and strap configurations.

The available variants include Tecnoseal codes 00385, 00385/1, 00386, 00386/1, 00387, 00387/1, 00388, 00389-1, 00389-2, 00389-3, 00389-4 and 01950.

Key Features

Brand: Tecnoseal
Product Type: Bolt-on sacrificial anode with strap
Type: Scandinavian Type
Material: Zinc
Mounting: Bolt-on
Insert: Stainless steel strap
Weight Range: 0.25–5.50 kg
Body Length Range (l): 75–260 mm
Dimension i Range: 117–315 mm
Mounting Slot Range: 7 × 25 to 13 × 35 mm

Available Models and Technical Specifications

Tecnoseal Code	Weight	l	a	h	i	Mounting Slot	Strap
00385	0.25 kg / 250 g	75 mm	34 mm	16 mm	135 mm	9 × 20 mm	175 × 20 × 3 mm
00385/1	0.25 kg / 250 g	95 mm	34 mm	17 mm	117 mm	7 × 25 mm	165 × 15 × 3 mm
00386	0.50 kg / 500 g	95 mm	40 mm	25 mm	132 mm	9 × 20 mm	170 × 20 × 3 mm
00386/1	0.50 kg / 500 g	110 mm	42 mm	24 mm	135 mm	9 × 20 mm	175 × 20 × 3 mm
00387	1.10 kg / 1100 g	120 mm	46 mm	35 mm	180 mm	13 × 35 mm	255 × 25 × 5 mm
00387/1	1.04 kg / 1040 g	127 mm	62 mm	28 mm	190 mm	13 × 35 mm	255 × 25 × 5 mm
01950	1.00 kg / 1000 g	101 mm	64 mm	30 mm	120 mm	9 × 15 mm	150 × 20 × 3 mm
00388	2.00 kg / 2000 g	140 mm	82 mm	26 mm	180 mm	13 × 35 mm	255 × 25 × 5 mm
00389-1	3.60 kg / 3600 g	220 mm	95 mm	32 mm	260 mm	13 × 30 mm	300 × 25 × 5 mm
00389-2	3.40 kg / 3400 g	215 mm	90 mm	30 mm	315 mm	12 × 20 mm	340 × 25 × 5 mm
00389-3	3.00 kg / 3000 g	220 mm	96 mm	30 mm	260 mm	13 × 30 mm	300 × 25 × 5 mm
00389-4	5.50 kg / 5500 g	260 mm	90 mm	46 mm	315 mm	12 × 20 mm	340 × 25 × 5 mm

Compact Scandinavian Type Anodes

00385: 75 × 34 × 16 mm body, i 135 mm, 9 × 20 mm mounting slot, 175 × 20 × 3 mm strap, 250 g.
00385/1: 95 × 34 × 17 mm body, i 117 mm, 7 × 25 mm mounting slot, 165 × 15 × 3 mm strap, 250 g.
00386: 95 × 40 × 25 mm body, i 132 mm, 9 × 20 mm mounting slot, 170 × 20 × 3 mm strap, 500 g.
00386/1: 110 × 42 × 24 mm body, i 135 mm, 9 × 20 mm mounting slot, 175 × 20 × 3 mm strap, 500 g.

Medium Scandinavian Type Anodes

00387: 120 × 46 × 35 mm body, i 180 mm, 13 × 35 mm mounting slot, 255 × 25 × 5 mm strap, 1100 g.
00387/1: 127 × 62 × 28 mm body, i 190 mm, 13 × 35 mm mounting slot, 255 × 25 × 5 mm strap, 1040 g.
01950: 101 × 64 × 30 mm body, i 120 mm, 9 × 15 mm mounting slot, 150 × 20 × 3 mm stainless steel strap, 1000 g.
00388: 140 × 82 × 26 mm body, i 180 mm, 13 × 35 mm mounting slot, 255 × 25 × 5 mm strap, 2000 g.

Large Scandinavian Type Anodes

00389-1: 220 × 95 × 32 mm body, i 260 mm, 13 × 30 mm mounting slot, 300 × 25 × 5 mm strap, 3600 g.
00389-2: 215 × 90 × 30 mm body, i 315 mm, 12 × 20 mm mounting slot, 340 × 25 × 5 mm strap, 3400 g.
00389-3: 220 × 96 × 30 mm body, i 260 mm, 13 × 30 mm mounting slot, 300 × 25 × 5 mm strap, 3000 g.
00389-4: 260 × 90 × 46 mm body, i 315 mm, 12 × 20 mm mounting slot, 340 × 25 × 5 mm strap, 5500 g.

Dimensions for Model Selection

l: Anode body length
a: Anode body width
h: Anode body height
i: Overall dimension shown in the Tecnoseal installation drawing
Mounting Slot: Slotted fixing-hole dimensions
Strap: Stainless steel strap dimensions

For replacement selection, compare the anode body dimensions together with dimension i, mounting-slot size and stainless steel strap dimensions.
