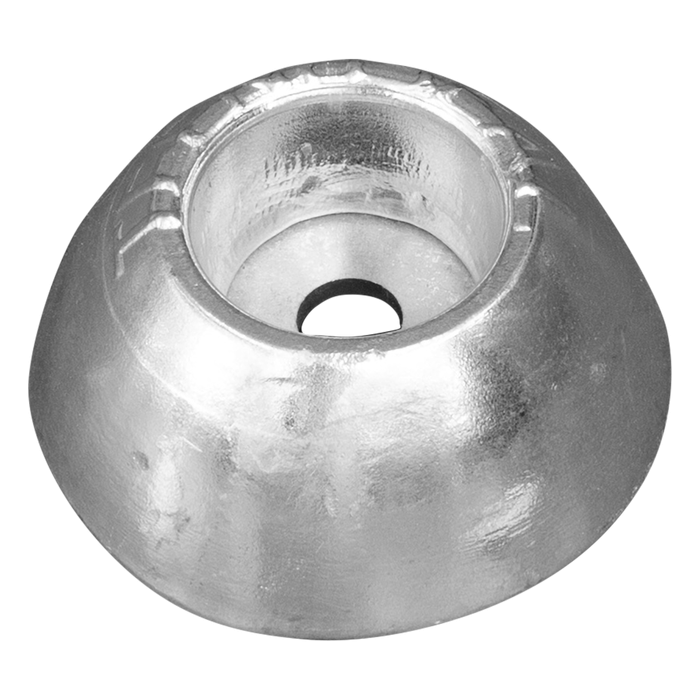

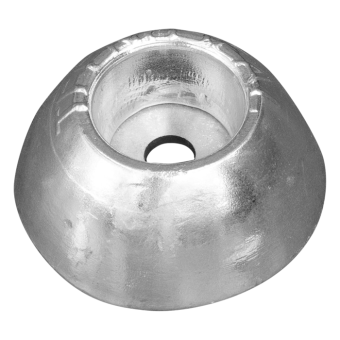

Tecnoseal Zinc UK Type Disc Sacrificial Anodes with Steel Insert

ID 1399100

$ 34.42

1-2 weeks delivery time

Size:

Ø70x33
98x82x32
Ø148x36

Item:

1000 g
430 g
2080 g

Tecnoseal zinc UK Type disc sacrificial anodes with insert for rudders and trim tabs, supplied individually without mounting hardware. The range includes 00101UK with Ø70 × 33 mm dimensions and 430 g weight, 00102UK with 98 × 82 × 32 mm dimensions and 1.00 kg weight, and 00105UK with Ø148 × 36 mm dimensions and 2.08 kg weight. Depending on the model, Ø1 ranges from 30 to 42 mm and Ø2 from 11 to 14.5 mm.

Description
Ask a Question

Tecnoseal Zinc UK Type Disc Sacrificial Anodes with Steel Insert – 00101UK, 00102UK & 00105UK

The Tecnoseal UK Type Zinc Disc Anodes are sacrificial anodes with an insert, designed for marine rudders and trim tabs. The range includes three zinc models with different body dimensions, insert dimensions and weights.

All models are supplied individually without mounting hardware. Select the required version according to the overall dimensions and the Ø1 / Ø2 insert dimensions of the existing installation.

Key Features

Brand: Tecnoseal
Product Type: Disc sacrificial anode with insert
Type: UK Type
Material: Zinc
Applications: Rudders and trim tabs
Configuration: Single anode
Supply: Without mounting hardware
Available Models: 00101UK, 00102UK and 00105UK
Weight Range: 0.43–2.08 kg

Available Models and Technical Specifications

Tecnoseal Code	Overall Dimensions	Height	Ø1	Ø2	Weight
00101UK	Ø70 mm	33 mm	30 mm	11 mm	0.43 kg / 430 g
00102UK	98 × 82 mm	32 mm	42 mm	14.5 mm	1.00 kg / 1000 g
00105UK	Ø148 mm	36 mm	36 mm	14.5 mm	2.08 kg / 2080 g

Tecnoseal 00101UK – Ø70 × 33 mm

Product Code: 00101UK
Material: Zinc
Outside Diameter: 70 mm / 2.76 in
Height: 33 mm / 1.30 in
Ø1: 30 mm / 1.18 in
Ø2: 11 mm / 0.43 in
Weight: 0.43 kg / 0.95 lb

Tecnoseal 00102UK – 98 × 82 × 32 mm

Product Code: 00102UK
Material: Zinc
Length (l): 98 mm / 3.86 in
Width (a): 82 mm / 3.23 in
Height: 32 mm / 1.26 in
Ø1: 42 mm / 1.65 in
Ø2: 14.5 mm / 0.57 in
Weight: 1.00 kg / 2.20 lb

Tecnoseal 00105UK – Ø148 × 36 mm

Product Code: 00105UK
Material: Zinc
Outside Diameter: 148 mm / 5.83 in
Height: 36 mm / 1.42 in
Ø1: 36 mm / 1.42 in
Ø2: 14.5 mm / 0.57 in
Weight: 2.08 kg / 4.59 lb

Model Selection

For replacement selection, compare the overall body dimensions together with the Ø1 and Ø2 insert dimensions. The 00102UK uses a non-circular 98 × 82 mm body, while 00101UK and 00105UK are specified by outside diameter.
