Tecnoseal Magnesium USA Type Rudder Disc Anode Pairs with Hardware

Name: Tecnoseal Magnesium USA Type Rudder Disc Anode Pairs with Hardware
SKU: Tecnoseal R1MG

ID 1399093

$ 13.32

1-2 weeks delivery time

Diameter, mm:

1 7/8"x1/4"
2 13/16"x1/2"
3 3/4"x1/2"
5"x5/8"
5"x7/8"
6 1/2"x7/8"

Item:

250 g
500 g
50 g
15 g
90 g
175 g

Tecnoseal magnesium USA Type disc sacrificial anode sets for marine rudders, supplied as pairs with mounting hardware. The range includes R1MG, R2MG, R3MG, R4MG, R5MG and R7MG models in nominal sizes from 1 7/8" x 1/4" to 6 1/2" x 7/8", with outside diameters from Ø47 to Ø165 mm and catalogue pair weights from 0.03 to 1.00 kg. Each set includes a stainless steel hex nut and socket cap screw.

Description
Ask a Question

Tecnoseal Magnesium USA Type Rudder Disc Anode Pairs with Hardware – 1 7/8" to 6 1/2"

The Tecnoseal USA Type Magnesium Disc Anodes are circular sacrificial anode sets for marine rudder applications. The range includes R1MG, R2MG, R3MG, R4MG, R5MG and R7MG models and is supplied as sets of two magnesium anodes with mounting hardware.

The range covers nominal inch sizes from 1 7/8" x 1/4" to 6 1/2" x 7/8". The available models differ in outside diameter, overall height, Ø1 and Ø2 mounting dimensions and weight.

Each set includes a stainless steel hex nut and socket cap screw. The captive hex nut is designed to facilitate underwater installation.

Key Features

Brand: Tecnoseal
Series: USA Type
Product Type: Rudder disc sacrificial anode set
Material: Magnesium
Application: Marine rudders
Configuration: Set of two anodes
Available Models: R1MG, R2MG, R3MG, R4MG, R5MG and R7MG
Nominal Inch Sizes: 1 7/8" x 1/4", 2 13/16" x 1/2", 3 3/4" x 1/2", 5" x 5/8", 5" x 7/8" and 6 1/2" x 7/8"
Outside Diameter Range: Ø47–165 mm
Catalogue Pair Weight Range: 0.03–1.00 kg
Mounting Hardware: Stainless steel hex nut and socket cap screw included

Available Models and Technical Specifications

Tecnoseal Code	Nominal Size	Diameter	Height	Ø1	Ø2	Weight per Pair	Calculated Weight per Anode
R1MG	1 7/8" x 1/4"	Ø47 mm	7 mm	9.5 mm	5 mm	0.03 kg / 30 g	15 g
R2MG	2 13/16" x 1/2"	Ø72 mm	11 mm	11 mm	7 mm	0.10 kg / 100 g	50 g
R3MG	3 3/4" x 1/2"	Ø92 mm	13 mm	13 mm	8.5 mm	0.18 kg / 180 g	90 g
R4MG	5" x 5/8"	Ø127 mm	15 mm	13 mm	9 mm	0.35 kg / 350 g	175 g
R5MG	5" x 7/8"	Ø127 mm	23 mm	13 mm	9 mm	0.50 kg / 500 g	250 g
R7MG	6 1/2" x 7/8"	Ø165 mm	22 mm	13 mm	9 mm	1.00 kg / 1000 g	500 g

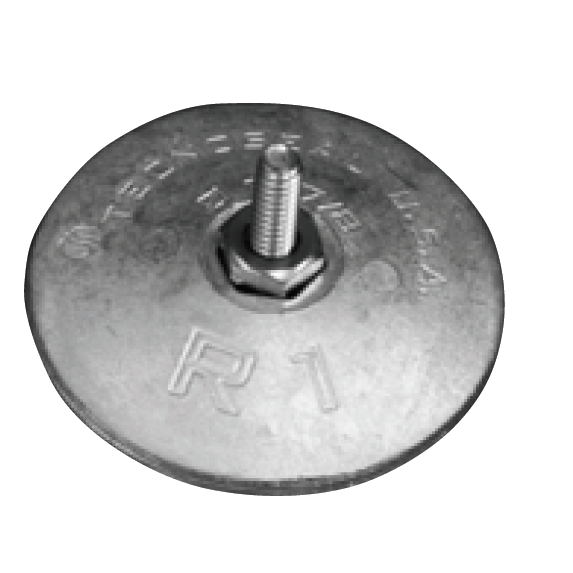

Tecnoseal R1MG – 1 7/8" x 1/4"

Product Code: R1MG
Material: Magnesium
Nominal Size: 1 7/8" x 1/4"
Outside Diameter: 47 mm
Height: 7 mm
Ø1: 9.5 mm
Ø2: 5 mm
Weight per Pair: 30 g
Calculated Weight per Anode: 15 g

Tecnoseal R2MG – 2 13/16" x 1/2"

Product Code: R2MG
Material: Magnesium
Nominal Size: 2 13/16" x 1/2"
Outside Diameter: 72 mm
Height: 11 mm
Ø1: 11 mm
Ø2: 7 mm
Weight per Pair: 100 g
Calculated Weight per Anode: 50 g

Tecnoseal R3MG – 3 3/4" x 1/2"

Product Code: R3MG
Material: Magnesium
Nominal Size: 3 3/4" x 1/2"
Outside Diameter: 92 mm
Height: 13 mm
Ø1: 13 mm
Ø2: 8.5 mm
Weight per Pair: 180 g
Calculated Weight per Anode: 90 g

Tecnoseal R4MG – 5" x 5/8"

Product Code: R4MG
Material: Magnesium
Nominal Size: 5" x 5/8"
Outside Diameter: 127 mm
Height: 15 mm
Ø1: 13 mm
Ø2: 9 mm
Weight per Pair: 350 g
Calculated Weight per Anode: 175 g

Tecnoseal R5MG – 5" x 7/8"

Product Code: R5MG
Material: Magnesium
Nominal Size: 5" x 7/8"
Outside Diameter: 127 mm
Height: 23 mm
Ø1: 13 mm
Ø2: 9 mm
Weight per Pair: 500 g
Calculated Weight per Anode: 250 g

Tecnoseal R7MG – 6 1/2" x 7/8"

Product Code: R7MG
Material: Magnesium
Nominal Size: 6 1/2" x 7/8"
Outside Diameter: 165 mm
Height: 22 mm
Ø1: 13 mm
Ø2: 9 mm
Weight per Pair: 1000 g
Calculated Weight per Anode: 500 g

Model Selection

Select the required model according to the nominal inch size and corresponding metric mounting dimensions. R4MG and R5MG both have a 5" outside diameter, but differ in thickness: R4MG is 5" x 5/8", while R5MG is 5" x 7/8".
