Tecnoseal Magnesium Disc Sacrificial Anodes for Rudders & Trim Tabs

ID 1399051

$ 9.35

1-2 weeks delivery time

Diameter, mm:

Item:

250 g
170 g
1000 g
110 g
20 g
60 g
360 g
1560 g

Tecnoseal magnesium disc sacrificial anodes for rudders and trim tabs, available in diameters from Ø50 to Ø225 mm. The range includes Standard Type models from Ø50 to Ø140 mm and Heavy Type models in Ø190 and Ø225 mm, with weights from 20 g to 1.56 kg. Depending on the model, overall height ranges from 11 to 33 mm, with Ø1 dimensions from 20 to 50 mm and Ø2 dimensions from 6.5 to 14 mm. Supplied individually without mounting hardware.

Description
Ask a Question

Tecnoseal Magnesium Disc Sacrificial Anodes for Rudders & Trim Tabs – Ø50–225 mm

The Tecnoseal Magnesium Disc Anodes are circular sacrificial anodes for marine rudders and flaps / trim tabs. The magnesium range covers outside diameters from Ø50 to Ø225 mm and includes both Standard Type and Heavy Type configurations.

The Standard Type range includes diameters from Ø50 to Ø140 mm, while the larger Ø190 and Ø225 mm models are listed as Heavy Type. Each version differs in outside diameter, overall height, Ø1, Ø2 and weight.

The Standard Ø50, Ø70, Ø90 and Ø110 mm Tecnoseal models are also represented in the Osculati catalogue under corresponding article numbers. These cross-references are included below for easier product identification.

Key Features

Brand: Tecnoseal
Product Type: Disc sacrificial anode
Material: Magnesium
Applications: Rudders and flaps / trim tabs
Available Diameters: Ø50, Ø70, Ø90, Ø110, Ø125, Ø140, Ø190 and Ø225 mm
Available Types: Standard and Heavy
Overall Height Range: 11–33 mm
Weight Range: 0.02–1.56 kg
Osculati Cross-References: Available for Standard Ø50–110 mm models

Available Magnesium Models

Tecnoseal Code	Osculati Reference	Type	Diameter	Height	Ø1	Ø2	Weight
00100MG	43.918.00	Standard	50 mm	11 mm	20 mm	6.5 mm	0.02 kg / 20 g
00101MG	43.918.01	Standard	70 mm	13 mm	22 mm	8.5 mm	0.06 kg / 60 g
00102MG	43.918.02	Standard	90 mm	17 mm	31 mm	8.5 mm	0.11 kg / 110 g
00103MG	43.918.03	Standard	110 mm	18 mm	31 mm	10.5 mm	0.17 kg / 170 g
00104MG	—	Standard	125 mm	21 mm	31 mm	10.5 mm	0.25 kg / 250 g
00105MG	—	Standard	140 mm	30 mm	33 mm	12.5 mm	0.36 kg / 360 g
00106MG	—	Heavy	190 mm	27 mm	35 mm	13 mm	1.00 kg / 1000 g
00107MG	—	Heavy	225 mm	33 mm	50 mm	14 mm	1.56 kg / 1560 g

Standard Type Magnesium Disc Anodes

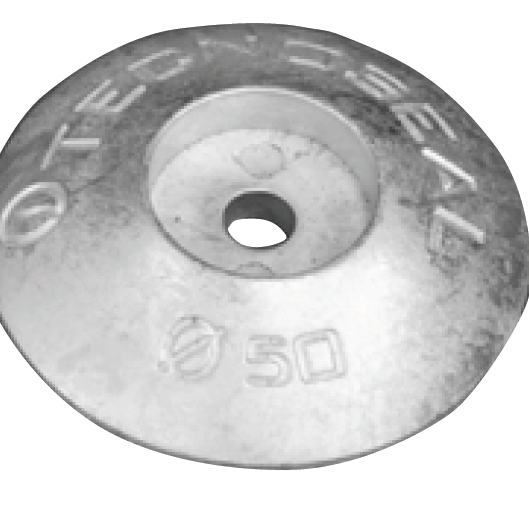

Tecnoseal 00100MG / Osculati 43.918.00: Ø50 × 11 mm, Ø1 20 mm, Ø2 6.5 mm, 20 g.
Tecnoseal 00101MG / Osculati 43.918.01: Ø70 × 13 mm, Ø1 22 mm, Ø2 8.5 mm, 60 g.
Tecnoseal 00102MG / Osculati 43.918.02: Ø90 × 17 mm, Ø1 31 mm, Ø2 8.5 mm, 110 g.
Tecnoseal 00103MG / Osculati 43.918.03: Ø110 × 18 mm, Ø1 31 mm, Ø2 10.5 mm, 170 g.
Tecnoseal 00104MG: Ø125 × 21 mm, Ø1 31 mm, Ø2 10.5 mm, 250 g.
Tecnoseal 00105MG: Ø140 × 30 mm, Ø1 33 mm, Ø2 12.5 mm, 360 g.
