Tecnoseal Magnesium Spanish Type Rudder Anode Pairs with Hardware

Name: Tecnoseal Magnesium Spanish Type Rudder Anode Pairs with Hardware
SKU: Tecnoseal 00101EMG

ID 1399075

$ 29.92

1-2 weeks delivery time

Diameter, mm:

Item:

270 g
110 g
60 g

Tecnoseal magnesium Spanish Type sacrificial anode sets for marine rudders, supplied as a pair with mounting bolt and nuts. Available in Ø70, Ø90 and Ø130 mm sizes, with heights of 6.5, 7.7 and 9 mm and set weights of 60, 110 and 270 g respectively. All versions feature Ø13 mm and Ø8.5 mm central mounting dimensions.

Description
Ask a Question

Tecnoseal Magnesium Spanish Type Rudder Anode Pairs with Hardware – Ø70–130 mm

The Tecnoseal Magnesium Spanish Type Rudder Anodes are circular sacrificial anode sets designed for marine rudder applications. Each model is supplied as a set of two magnesium anodes with mounting bolt and nuts.

The range includes three sizes with outside diameters of Ø70, Ø90 and Ø130 mm. The models differ in outside diameter, height and weight, while all three use the same Ø13 mm and Ø8.5 mm central mounting dimensions.

Key Features

Brand: Tecnoseal
Product Type: Spanish Type rudder sacrificial anode set
Material: Magnesium
Application: Marine rudders
Configuration: Set of two anodes
Mounting Hardware: Bolt and nuts included
Available Diameters: Ø70, Ø90 and Ø130 mm
Height Range: 6.5–9 mm
Set Weight Range: 0.06–0.27 kg
Ø1: 13 mm
Ø2: 8.5 mm

Available Models and Technical Specifications

Tecnoseal Code	Diameter	Height	Ø1	Ø2	Weight	Supply
00101EMG	Ø70 mm	6.5 mm	13 mm	8.5 mm	0.06 kg / 60 g	Pair with bolt and nuts
00102EMG	Ø90 mm	7.7 mm	13 mm	8.5 mm	0.11 kg / 110 g	Pair with bolt and nuts
00104EMG	Ø130 mm	9 mm	13 mm	8.5 mm	0.27 kg / 270 g	Pair with bolt and nuts

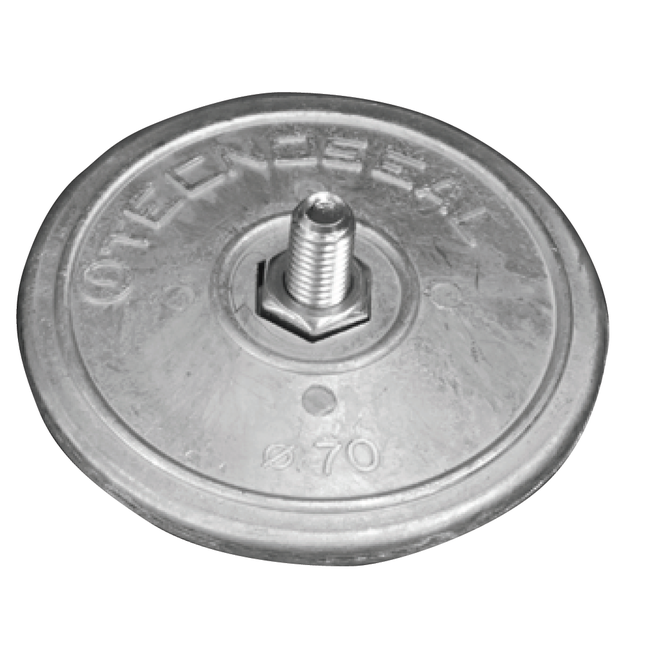

Tecnoseal 00101EMG – Ø70 mm

Product Code: 00101EMG
Material: Magnesium
Outside Diameter: 70 mm / 2.76 in
Height: 6.5 mm / 0.26 in
Ø1: 13 mm / 0.51 in
Ø2: 8.5 mm / 0.33 in
Weight: 0.06 kg / 0.13 lb
Supply: Set of two with bolt and nuts

Tecnoseal 00102EMG – Ø90 mm

Product Code: 00102EMG
Material: Magnesium
Outside Diameter: 90 mm / 3.54 in
Height: 7.7 mm / 0.30 in
Ø1: 13 mm / 0.51 in
Ø2: 8.5 mm / 0.33 in
Weight: 0.11 kg / 0.24 lb
Supply: Set of two with bolt and nuts

Tecnoseal 00104EMG – Ø130 mm

Product Code: 00104EMG
Material: Magnesium
Outside Diameter: 130 mm / 5.12 in
Height: 9 mm / 0.35 in
Ø1: 13 mm / 0.51 in
Ø2: 8.5 mm / 0.33 in
Weight: 0.27 kg / 0.60 lb
Supply: Set of two with bolt and nuts

Model Selection

All three models use the same Ø13 mm and Ø8.5 mm central mounting dimensions. Select the required version according to the outside diameter, height and weight of the existing anode set.
