Tecnoseal Zinc Disc Sacrificial Anodes for Rudders & Trim Tabs

ID 1399021

$ 6.84

1-2 weeks delivery time

Diameter, mm:

Item:

300 g
80 g
420 g
680 g
500 g
190 g
140 g
990 g
980 g
1270 g
1450 g
2000 g
3800 g
6200 g

Tecnoseal zinc disc sacrificial anodes for rudders and trim tabs, available in Standard and Heavy configurations with diameters from Ø50 to Ø225 mm. The range includes individual zinc anodes weighing from 80 g to 6.20 kg, with heights from 11 to 33 mm and different central recess and fixing-hole diameters. Tecnoseal disc anodes are supplied individually without mounting hardware.

Description
Ask a Question

Tecnoseal Zinc Disc Sacrificial Anodes for Rudders & Trim Tabs – Standard & Heavy Type Ø50–225 mm

The Tecnoseal Zinc Disc Anodes are circular sacrificial anodes designed for marine rudders and flaps / trim tabs. The range includes Standard Type and Heavy Type disc anodes with outside diameters from Ø50 to Ø225 mm.

All variants in this product range are manufactured from zinc. Tecnoseal supplies the disc anodes individually and without mounting hardware. The available models differ in outside diameter, height, central recess diameter, fixing-hole diameter and weight.

The Standard Type Tecnoseal models from Ø50 to Ø140 mm are also represented in the Osculati catalogue under corresponding article numbers. These cross-references are included below for easier product identification.

Key Features

Brand: Tecnoseal
Product Type: Disc sacrificial anode
Material: Zinc
Applications: Rudders and flaps / trim tabs
Available Types: Standard and Heavy
Available Diameters: Ø50, Ø70, Ø90, Ø110, Ø125, Ø140, Ø190 and Ø225 mm
Weight Range: 0.08–6.20 kg
Mounting: Central fixing hole with recessed centre
Supply: Single anode without hardware
Osculati Cross-References: Available for Standard Type Ø50–140 mm models

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Type	Diameter	Height	Ø1	Ø2	Weight
00100	43.914.97	Standard	50 mm	11 mm	20 mm	6.5 mm	0.08 kg / 80 g
00100P	—	Heavy	50 mm	16 mm	21 mm	7.5 mm	0.14 kg / 140 g
00101 Same as Tecnoseal 02702	43.914.98	Standard	70 mm	13 mm	22 mm	8.5 mm	0.19 kg / 190 g
00101P	—	Heavy	70 mm	17 mm	22 mm	8.5 mm	0.30 kg / 300 g
00102	43.914.99	Standard	90 mm	17 mm	31 mm	8.5 mm	0.42 kg / 420 g
00102P	—	Heavy	90 mm	20 mm	27 mm	10 mm	0.50 kg / 500 g
00103	43.915.00	Standard	110 mm	18 mm	31 mm	10.5 mm	0.68 kg / 680 g
00103P	—	Heavy	110 mm	22 mm	31 mm	12 mm	0.99 kg / 990 g
00104	43.915.02	Standard	125 mm	21 mm	31 mm	10.5 mm	0.98 kg / 980 g
00104P	—	Heavy	125 mm	26 mm	31 mm	11 mm	1.27 kg / 1270 g
00105	43.915.03	Standard	140 mm	30 mm	33 mm	12.5 mm	1.45 kg / 1450 g
00105P	—	Heavy	140 mm	33 mm	31 mm	11 mm	2.00 kg / 2000 g
00106	—	Heavy	190 mm	27 mm	35 mm	13 mm	3.80 kg / 3800 g
00107	—	Heavy	225 mm	33 mm	50 mm	14 mm	6.20 kg / 6200 g

Standard Type Zinc Disc Anodes

The Standard Type range includes six sizes from Ø50 to Ø140 mm. Each model features a circular zinc body with a recessed central fixing arrangement.

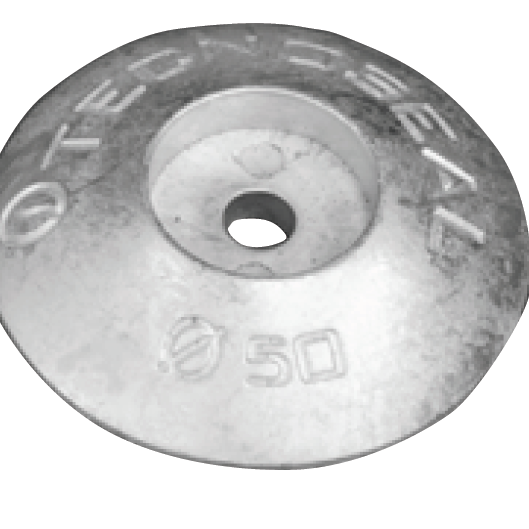

Tecnoseal 00100 / Osculati 43.914.97: Ø50 × 11 mm, Ø1 20 mm, Ø2 6.5 mm, 80 g.
Tecnoseal 00101 / Tecnoseal 02702 / Osculati 43.914.98: Ø70 × 13 mm, Ø1 22 mm, Ø2 8.5 mm, 190 g.
Tecnoseal 00102 / Osculati 43.914.99: Ø90 × 17 mm, Ø1 31 mm, Ø2 8.5 mm, 420 g.
Tecnoseal 00103 / Osculati 43.915.00: Ø110 × 18 mm, Ø1 31 mm, Ø2 10.5 mm, 680 g.
Tecnoseal 00104 / Osculati 43.915.02: Ø125 × 21 mm, Ø1 31 mm, Ø2 10.5 mm, 980 g.
Tecnoseal 00105 / Osculati 43.915.03: Ø140 × 30 mm, Ø1 33 mm, Ø2 12.5 mm, 1450 g.

Heavy Type Zinc Disc Anodes

The Heavy Type range uses a thicker disc configuration and includes diameters from Ø50 to Ø225 mm.

00100P: Ø50 × 16 mm, Ø1 21 mm, Ø2 7.5 mm, 140 g.
00101P: Ø70 × 17 mm, Ø1 22 mm, Ø2 8.5 mm, 300 g.
00102P: Ø90 × 20 mm, Ø1 27 mm, Ø2 10 mm, 500 g.
00103P: Ø110 × 22 mm, Ø1 31 mm, Ø2 12 mm, 990 g.
00104P: Ø125 × 26 mm, Ø1 31 mm, Ø2 11 mm, 1270 g.
00105P: Ø140 × 33 mm, Ø1 31 mm, Ø2 11 mm, 2000 g.
00106: Ø190 × 27 mm, Ø1 35 mm, Ø2 13 mm, 3800 g.
00107: Ø225 × 33 mm, Ø1 50 mm, Ø2 14 mm, 6200 g.

Osculati Cross-References

Tecnoseal Code	Osculati Code	Dimensions	Weight
00100	43.914.97	Ø50 × 11 mm	80 g
00101 / 02702	43.914.98	Ø70 × 13 mm	190 g
00102	43.914.99	Ø90 × 17 mm	420 g
00103	43.915.00	Ø110 × 18 mm	680 g
00104	43.915.02	Ø125 × 21 mm	980 g
00105	43.915.03	Ø140 × 30 mm	1450 g

Dimensions for Replacement Selection

When selecting a replacement, compare the outside diameter, overall height, central recess diameter and fixing-hole diameter with the existing anode.

Ø: Outside diameter of the disc
h: Overall height
Ø1: Diameter of the recessed central section
Ø2: Central fixing-hole diameter
