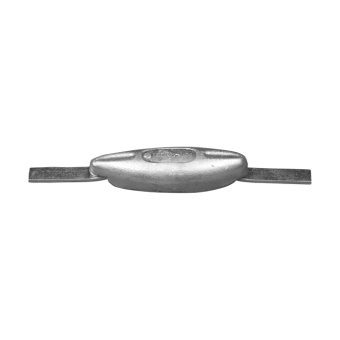

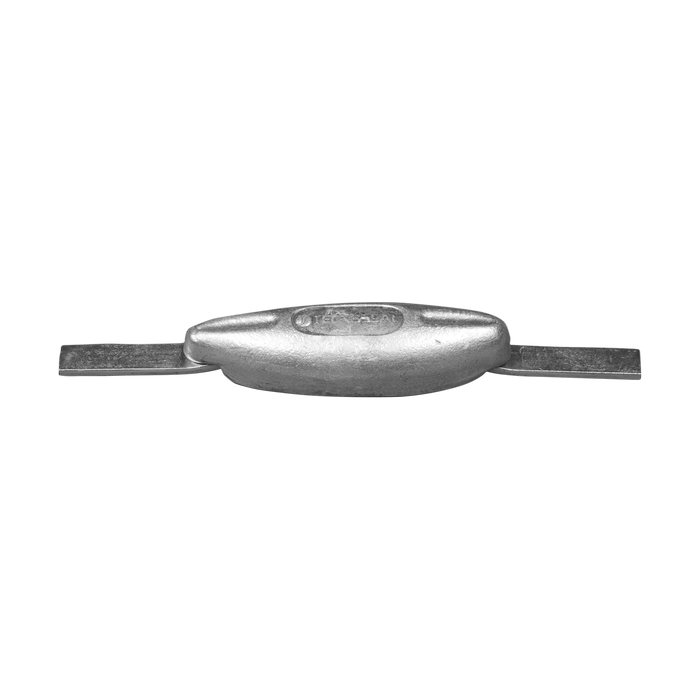

Tecnoseal Aluminium Spanish Type Weld-On Sacrificial Anodes with Steel Insert

ID 1399292

$ 29.19

1-2 weeks delivery time

Size:

120x40x22.5
160x57x25
225x70x31
225x80x35
250x90x35
250x90x50

Item:

980 g
200 g
390 g
780 g
2500 g
1250 g

Tecnoseal aluminium Spanish Type weld-on sacrificial anodes with integrated insert for hull and transom applications. The range includes six models weighing from 0.20 to 2.50 kg, with anode body dimensions from 120 × 40 × 22.5 mm to 250 × 90 × 50 mm and strap sizes from 205 × 15 × 3 mm to 400 × 30 × 6 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.

Description
Ask a Question

Tecnoseal Aluminium Spanish Type Weld-On Sacrificial Anodes with Steel Insert – 0.20–2.50 kg

The Tecnoseal Aluminium Spanish Type Weld-On Anodes are sacrificial anodes with integrated mounting inserts for hull and transom applications. The range includes six aluminium models with different body dimensions, weights and strap sizes.

Selected Tecnoseal models are also represented in the Osculati catalogue: Tecnoseal 00300EAL / Osculati 43.904.01, Tecnoseal 00301EAL / Osculati 43.905.11 and Tecnoseal 00306EAL / Osculati 43.911.10.

The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required version according to the anode body dimensions, weight and strap / insert dimensions.

Key Features

Brand: Tecnoseal
Product Type: Weld-on sacrificial anode with insert
Type: Spanish Type
Anode Material: Aluminium
Applications: Hull and transom
Mounting: Weld-on
Standard Insert: Steel
Optional Inserts: Aluminium or stainless steel available on request
Available Models: Tecnoseal 00300EAL / Osculati 43.904.01, Tecnoseal 00301EAL / Osculati 43.905.11, Tecnoseal 00302EAL, Tecnoseal 00303EAL, Tecnoseal 00304EAL and Tecnoseal 00306EAL / Osculati 43.911.10
Weight Range: 0.20–2.50 kg
Body Length Range: 120–250 mm
Body Width Range: 40–90 mm
Body Height Range: 22.5–50 mm

Available Models and Technical Specifications

Reference	Weight	Length (l)	Width (a)	Height (h)	Strap / Insert
Tecnoseal 00300EAL / Osculati 43.904.01	0.20 kg / 200 g	120 mm	40 mm	22.5 mm	205 × 15 × 3 mm
Tecnoseal 00301EAL / Osculati 43.905.11	0.39 kg / 390 g	160 mm	57 mm	25 mm	230 × 25 × 5 mm
Tecnoseal 00302EAL	0.78 kg / 780 g	225 mm	70 mm	31 mm	300 × 25 × 5 mm
Tecnoseal 00303EAL	0.98 kg / 980 g	225 mm	80 mm	35 mm	300 × 25 × 5 mm
Tecnoseal 00304EAL	1.25 kg / 1250 g	250 mm	90 mm	35 mm	400 × 30 × 6 mm
Tecnoseal 00306EAL / Osculati 43.911.10	2.50 kg / 2500 g	250 mm	90 mm	50 mm	400 × 30 × 6 mm

Tecnoseal 00300EAL / Osculati 43.904.01 – 200 g

Tecnoseal Code: 00300EAL
Osculati Reference: 43.904.01
Material: Aluminium
Body Dimensions: 120 × 40 × 22.5 mm
Strap / Insert: 205 × 15 × 3 mm
Weight: 0.20 kg / 200 g

Tecnoseal 00301EAL / Osculati 43.905.11 – 390 g

Tecnoseal Code: 00301EAL
Osculati Reference: 43.905.11
Material: Aluminium
Body Dimensions: 160 × 57 × 25 mm
Strap / Insert: 230 × 25 × 5 mm
Weight: 0.39 kg / 390 g

Tecnoseal 00302EAL – 780 g

Product Code: 00302EAL
Material: Aluminium
Body Dimensions: 225 × 70 × 31 mm
Strap / Insert: 300 × 25 × 5 mm
Weight: 0.78 kg / 780 g

Tecnoseal 00303EAL – 980 g

Product Code: 00303EAL
Material: Aluminium
Body Dimensions: 225 × 80 × 35 mm
Strap / Insert: 300 × 25 × 5 mm
Weight: 0.98 kg / 980 g

Tecnoseal 00304EAL – 1250 g

Product Code: 00304EAL
Material: Aluminium
Body Dimensions: 250 × 90 × 35 mm
Strap / Insert: 400 × 30 × 6 mm
Weight: 1.25 kg / 1250 g

Tecnoseal 00306EAL / Osculati 43.911.10 – 2500 g

Tecnoseal Code: 00306EAL
Osculati Reference: 43.911.10
Material: Aluminium
Body Dimensions: 250 × 90 × 50 mm
Strap / Insert: 400 × 30 × 6 mm
Weight: 2.50 kg / 2500 g

Dimensions for Model Selection

l: Anode body length
a: Anode body width
h: Anode body height
Strap / Insert: Integrated mounting insert dimensions

For replacement selection, compare the Tecnoseal or corresponding Osculati reference together with the anode body dimensions, weight and strap / insert dimensions.
