Tecnoseal aluminium Teardrop Type weld-on sacrificial anodes with integrated mounting strap, available in seven sizes from 0.60 to 5.05 kg. The range covers anode body dimensions from 120 × 78 × 25 mm to 280 × 175 × 60 mm, with strap sizes from 230 × 25 × 5 mm to 400 × 30 × 6 mm. The standard version is supplied with a steel insert, while aluminium or stainless steel inserts are available on request.
- Description
- Ask a Question
-

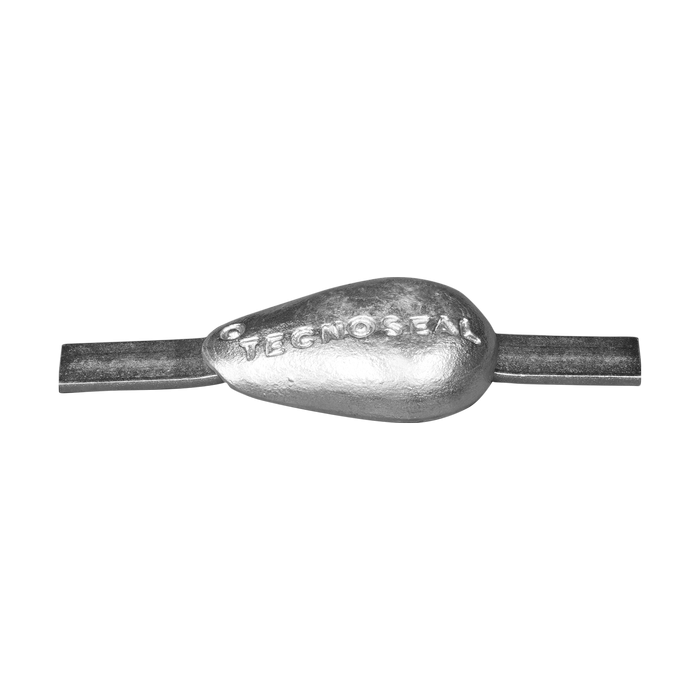

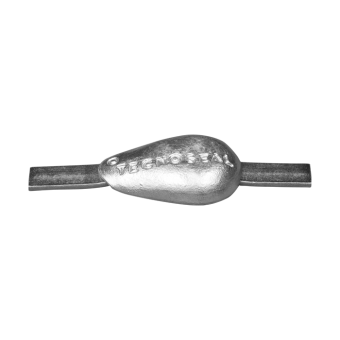

Tecnoseal Aluminium Teardrop Type Weld-On Sacrificial Anodes with Steel Insert – 0.60–5.05 kg
The Tecnoseal Aluminium Teardrop Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap. The range includes seven aluminium models with different body dimensions, weights and strap sizes.
The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required version according to the anode body dimensions, weight and strap / insert dimensions.
Key Features
- Brand: Tecnoseal
- Product Type: Weld-on sacrificial anode with strap
- Type: Teardrop Type
- Anode Material: Aluminium
- Mounting: Weld-on
- Standard Insert: Steel
- Optional Inserts: Aluminium or stainless steel available on request
- Available Models: 00350AL, 00351AL, 00352AL, 00353AL, 00360AL, 00361AL and 00362AL
- Weight Range: 0.60–5.05 kg
- Body Length Range: 120–280 mm
- Body Width Range: 78–175 mm
- Body Height Range: 25–60 mm
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) Height (h) Strap / Insert 00350AL 0.60 kg / 600 g 120 mm 78 mm 25 mm 230 × 25 × 5 mm 00351AL 0.86 kg / 860 g 135 mm 87 mm 35 mm 250 × 25 × 5 mm 00352AL 1.20 kg / 1200 g 160 mm 100 mm 40 mm 250 × 25 × 5 mm 00353AL 2.00 kg / 2000 g 220 mm 140 mm 40 mm 340 × 25 × 5 mm 00360AL 4.50 kg / 4500 g 280 mm 175 mm 50 mm 400 × 30 × 6 mm 00361AL 4.30 kg / 4300 g 280 mm 175 mm 55 mm 400 × 30 × 6 mm 00362AL 5.05 kg / 5050 g 280 mm 175 mm 60 mm 400 × 30 × 6 mm
Tecnoseal 00350AL – 600 g
- Product Code: 00350AL
- Material: Aluminium
- Body Dimensions: 120 × 78 × 25 mm
- Strap / Insert: 230 × 25 × 5 mm
- Weight: 0.60 kg / 600 g
Tecnoseal 00351AL – 860 g
- Product Code: 00351AL
- Material: Aluminium
- Body Dimensions: 135 × 87 × 35 mm
- Strap / Insert: 250 × 25 × 5 mm
- Weight: 0.86 kg / 860 g
Tecnoseal 00352AL – 1200 g
- Product Code: 00352AL
- Material: Aluminium
- Body Dimensions: 160 × 100 × 40 mm
- Strap / Insert: 250 × 25 × 5 mm
- Weight: 1.20 kg / 1200 g
Tecnoseal 00353AL – 2000 g
- Product Code: 00353AL
- Material: Aluminium
- Body Dimensions: 220 × 140 × 40 mm
- Strap / Insert: 340 × 25 × 5 mm
- Weight: 2.00 kg / 2000 g
Tecnoseal 00360AL – 4500 g
- Product Code: 00360AL
- Material: Aluminium
- Body Dimensions: 280 × 175 × 50 mm
- Strap / Insert: 400 × 30 × 6 mm
- Weight: 4.50 kg / 4500 g
Tecnoseal 00361AL – 4300 g
- Product Code: 00361AL
- Material: Aluminium
- Body Dimensions: 280 × 175 × 55 mm
- Strap / Insert: 400 × 30 × 6 mm
- Weight: 4.30 kg / 4300 g
Tecnoseal 00362AL – 5050 g
- Product Code: 00362AL
- Material: Aluminium
- Body Dimensions: 280 × 175 × 60 mm
- Strap / Insert: 400 × 30 × 6 mm
- Weight: 5.05 kg / 5050 g
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- Strap / Insert: Integrated mounting strap dimensions
For replacement selection, compare the anode body dimensions, weight and strap / insert dimensions with the existing installation.
-
