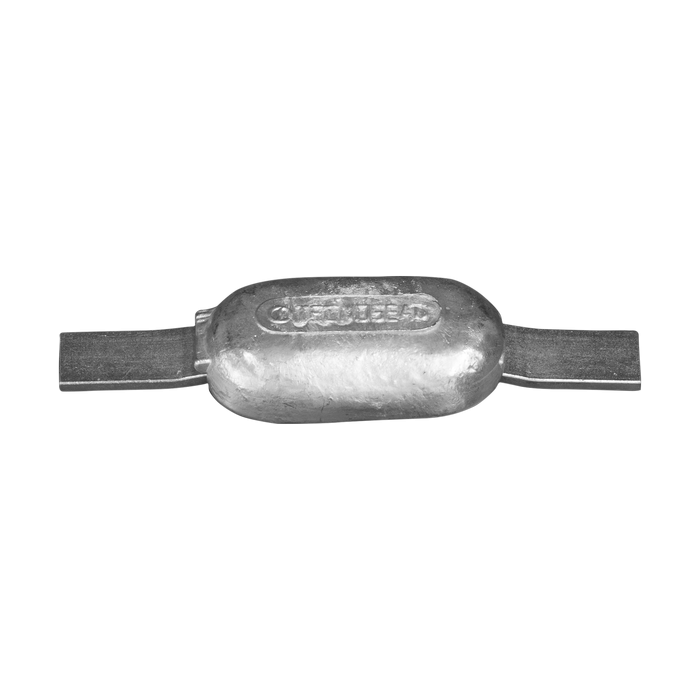

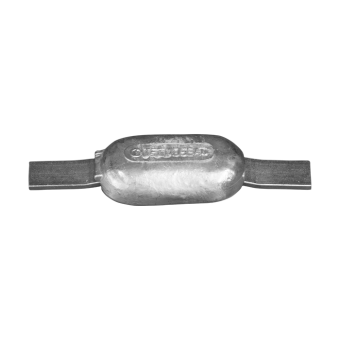

Tecnoseal aluminium Oval Type weld-on sacrificial anodes with integrated mounting strap for hull and transom applications. The range includes 14 models weighing from 0.39 to 5.50 kg, with anode body dimensions from 100 × 60 × 18 mm to 400 × 152 × 33 mm and strap sizes from 200 × 25 × 5 mm to 550 × 40 × 6 mm. The standard configuration uses a steel insert, while aluminium or stainless steel inserts are available on request.
- Description
- Ask a Question
-
Tecnoseal Aluminium Oval Type Weld-On Sacrificial Anodes with Strap for Hull & Transom – 0.39–5.50 kg
The Tecnoseal Aluminium Oval Type Weld-On Anodes are sacrificial anodes with integrated mounting straps for hull and transom applications. The range includes multiple body sizes and weights from 0.39 to 5.50 kg.
The standard configuration uses a steel insert. Aluminium or stainless steel inserts are also available on request. Individual models differ in body length, width, height, weight and strap dimensions.
Key Features
- Brand: Tecnoseal
- Product Type: Weld-on sacrificial anode with strap
- Type: Oval Type
- Anode Material: Aluminium
- Applications: Hull and transom
- Mounting: Weld-on
- Standard Insert: Steel
- Optional Inserts: Aluminium or stainless steel available on request
- Weight Range: 0.39–5.50 kg
- Body Length Range (l): 100–400 mm
- Body Width Range (a): 60–152 mm
- Body Height Range (h): 18–46 mm
Available Models and Technical Specifications
Tecnoseal Code Weight Length (l) Width (a) Height (h) Strap 00300AL 0.39 kg / 390 g 100 mm 60 mm 18 mm 200 × 25 × 5 mm 00301AL 0.55 kg / 550 g 110 mm 63 mm 26 mm 200 × 25 × 5 mm 00302AL 0.80 kg / 800 g 200 mm 70 mm 25 mm 300 × 25 × 5 mm 00303AL 1.00 kg / 1000 g 210 mm 70 mm 28 mm 300 × 25 × 5 mm 00304AL 1.50 kg / 1500 g 200 mm 90 mm 33 mm 300 × 25 × 5 mm 00304-1AL 1.65 kg / 1650 g 200 mm 90 mm 40 mm 300 × 25 × 5 mm 00305AL 1.80 kg / 1800 g 240 mm 90 mm 36 mm 340 × 25 × 5 mm 00306AL 2.50 kg / 2500 g 300 mm 80 mm 40 mm 400 × 30 × 6 mm 00307AL 3.00 kg / 3000 g 295 mm 90 mm 40 mm 400 × 30 × 6 mm 00307-2AL 3.20 kg / 3200 g 220 mm 100 mm 46 mm 350 × 40 × 8 mm 00308AL 3.50 kg / 3500 g 295 mm 125 mm 38 mm 400 × 30 × 6 mm 00308-5AL 3.80 kg / 3800 g 320 mm 147 mm 35 mm 400 × 30 × 6 mm 00309AL 4.50 kg / 4500 g 320 mm 147 mm 38 mm 400 × 30 × 6 mm 00310AL 5.50 kg / 5500 g 400 mm 152 mm 33 mm 550 × 40 × 6 mm
Compact Oval Type Aluminium Anodes
- 00300AL: 100 × 60 × 18 mm body, 200 × 25 × 5 mm strap, 390 g.
- 00301AL: 110 × 63 × 26 mm body, 200 × 25 × 5 mm strap, 550 g.
- 00302AL: 200 × 70 × 25 mm body, 300 × 25 × 5 mm strap, 800 g.
- 00303AL: 210 × 70 × 28 mm body, 300 × 25 × 5 mm strap, 1000 g.
Medium Oval Type Aluminium Anodes
- 00304AL: 200 × 90 × 33 mm body, 300 × 25 × 5 mm strap, 1500 g.
- 00304-1AL: 200 × 90 × 40 mm body, 300 × 25 × 5 mm strap, 1650 g.
- 00305AL: 240 × 90 × 36 mm body, 340 × 25 × 5 mm strap, 1800 g.
- 00306AL: 300 × 80 × 40 mm body, 400 × 30 × 6 mm strap, 2500 g.
- 00307AL: 295 × 90 × 40 mm body, 400 × 30 × 6 mm strap, 3000 g.
- 00307-2AL: 220 × 100 × 46 mm body, 350 × 40 × 8 mm strap, 3200 g.
Large Oval Type Aluminium Anodes
- 00308AL: 295 × 125 × 38 mm body, 400 × 30 × 6 mm strap, 3500 g.
- 00308-5AL: 320 × 147 × 35 mm body, 400 × 30 × 6 mm strap, 3800 g.
- 00309AL: 320 × 147 × 38 mm body, 400 × 30 × 6 mm strap, 4500 g.
- 00310AL: 400 × 152 × 33 mm body, 550 × 40 × 6 mm strap, 5500 g.
Dimensions for Model Selection
- l: Anode body length
- a: Anode body width
- h: Anode body height
- Strap: Insert / mounting strap dimensions
For replacement selection, compare the anode body dimensions and strap dimensions with the existing installation.
-
