MME Zinc Alloy Rod Sacrificial Anodes

ID 1398898

$ 35.82

1-2 weeks delivery time

Diameter, mm:

Length, mm:

The MME ZR Zinc Alloy Rod Anodes are cylindrical sacrificial anodes designed for cathodic corrosion protection in marine and industrial applications. Manufactured from zinc alloy specified according to U.S. MIL Spec. A-18001K, the range includes 13 variants with diameters of 20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 125 and 150 mm. All models have a nominal length of 500 mm, with an additional 600 mm version available in Ø20 mm. Nominal weights range from 1.12 to 63.09 kg. The zinc alloy has a nominal electrochemical capacity of 780 Ah/kg and a nominal potential of -1050 mV versus an Ag/AgCl reference cell in seawater. Each anode is supplied individually.

Description
Ask a Question

MME Zinc Alloy Rod Sacrificial Anodes – Ø20–150 mm, 500–600 mm Length

The MME ZR Zinc Alloy Rod Anodes are cylindrical sacrificial anodes designed to provide cathodic corrosion protection for metal components in marine and industrial applications. Manufactured from zinc alloy, these anodes are available in different diameters and lengths to accommodate specific dimensional requirements.

The range includes 13 variants with diameters from 20 to 150 mm. All diameter options are available in a nominal length of 500 mm, while the Ø20 mm version is also available in a length of 600 mm. Nominal weights range from 1.12 to 63.09 kg, depending on the selected model.

The zinc alloy specifications are in accordance with U.S. MIL Spec. A-18001K. The alloy has a nominal electrochemical capacity of 780 Ah/kg and a nominal solution potential of -1050 mV versus an Ag/AgCl reference cell in seawater.

Key Features

Brand: MME
Product Series: ZR
Product Type: Sacrificial rod anode
Material: Zinc alloy
Shape: Cylindrical rod
Application: Cathodic corrosion protection
Diameter Range: 20–150 mm
Available Diameters: 20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 125 and 150 mm
Available Lengths: 500 and 600 mm
600 mm Length: Available for Ø20 mm only
Nominal Weight Range: 1.12–63.09 kg
Zinc Alloy Specification: U.S. MIL Spec. A-18001K
Nominal Electrochemical Capacity: 780 Ah/kg
Nominal Solution Potential: -1050 mV vs. Ag/AgCl reference cell in seawater
Available Variants: 13
Sales Unit: 1 piece

Technical Specifications and Available Models

The MME ZR series includes 13 cylindrical zinc alloy anodes with different diameters, lengths and nominal weights. All dimensions are specified in millimetres.

Model / Product Number	Technical Specifications
MMEZR20	Diameter: 20 mm Length: 500 mm Nominal Weight: 1.12 kg EAN: 8720193042558
MMEZR20-600	Diameter: 20 mm Length: 600 mm Nominal Weight: 1.35 kg EAN: 8720193042565
MMEZR25	Diameter: 25 mm Length: 500 mm Nominal Weight: 1.75 kg EAN: 8720193042572
MMEZR30	Diameter: 30 mm Length: 500 mm Nominal Weight: 2.52 kg EAN: 8720193042589
MMEZR40	Diameter: 40 mm Length: 500 mm Nominal Weight: 4.49 kg EAN: 8720193042596
MMEZR50	Diameter: 50 mm Length: 500 mm Nominal Weight: 7.01 kg EAN: 8720193042602
MMEZR60	Diameter: 60 mm Length: 500 mm Nominal Weight: 10.09 kg EAN: 8720193042619
MMEZR70	Diameter: 70 mm Length: 500 mm Nominal Weight: 13.74 kg EAN: 8720193042626
MMEZR80	Diameter: 80 mm Length: 500 mm Nominal Weight: 17.94 kg EAN: 8720193042633
MMEZR90	Diameter: 90 mm Length: 500 mm Nominal Weight: 22.71 kg EAN: 8720193042640
MMEZR100	Diameter: 100 mm Length: 500 mm Nominal Weight: 28.04 kg EAN: 8720193042527
MMEZR125	Diameter: 125 mm Length: 500 mm Nominal Weight: 43.81 kg EAN: 8720193042534
MMEZR150	Diameter: 150 mm Length: 500 mm Nominal Weight: 63.09 kg EAN: 8720193042541

Construction and Dimensions

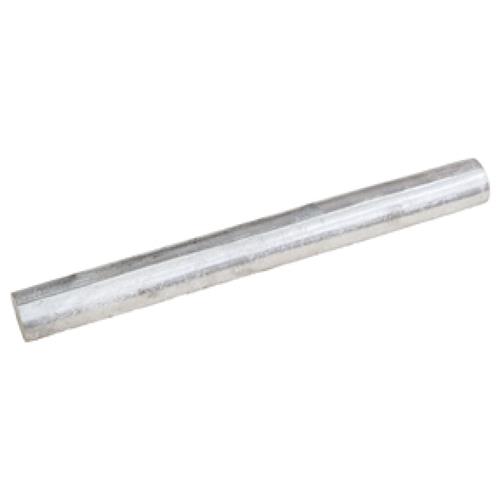

The MME ZR anodes are manufactured from zinc alloy and feature a solid cylindrical rod configuration. The manufacturer specifies two dimensional parameters: rod diameter (D) and overall length.

Cross-Section: Circular.
Body Shape: Cylindrical rod.
Material: Zinc alloy.
Minimum Diameter: 20 mm.
Maximum Diameter: 150 mm.
Standard Length: 500 mm.
Additional Length: 600 mm for the Ø20 mm version.

The nominal weight depends on the diameter and length of the selected rod. The Ø20 × 500 mm model weighs 1.12 kg, while the Ø20 × 600 mm version weighs 1.35 kg.

The Ø150 × 500 mm model has the highest nominal weight in the range at 63.09 kg.

Zinc Alloy Composition

The zinc alloy specifications are in accordance with U.S. MIL Spec. A-18001K. The specified alloy composition is as follows:

Element	Composition (%)
Cadmium	0.025–0.07
Aluminium	0.10–0.50
Zinc	Remainder
Copper	0.005 max.
Iron	0.005 max.
Lead	0.006 max.
Other Elements, Total	0.10 max.

Electrochemical Properties

The manufacturer specifies the following nominal electrochemical characteristics for the zinc alloy:

Property	Specified Value
Electrochemical Capacity	780 Ah/kg nominal
Solution Potential	-1050 mV nominal
Reference Electrode	Ag/AgCl
Reference Environment	Seawater
Alloy Specification	U.S. MIL Spec. A-18001K

Dimensions and Model Selection

The MME ZR series is available in 12 diameter options and 13 dimensional combinations. Dimensions are specified as diameter × length.

MMEZR20: Ø20 × 500 mm, 1.12 kg.
MMEZR20-600: Ø20 × 600 mm, 1.35 kg.
MMEZR25: Ø25 × 500 mm, 1.75 kg.
MMEZR30: Ø30 × 500 mm, 2.52 kg.
MMEZR40: Ø40 × 500 mm, 4.49 kg.
MMEZR50: Ø50 × 500 mm, 7.01 kg.
MMEZR60: Ø60 × 500 mm, 10.09 kg.
MMEZR70: Ø70 × 500 mm, 13.74 kg.
MMEZR80: Ø80 × 500 mm, 17.94 kg.
MMEZR90: Ø90 × 500 mm, 22.71 kg.
MMEZR100: Ø100 × 500 mm, 28.04 kg.
MMEZR125: Ø125 × 500 mm, 43.81 kg.
MMEZR150: Ø150 × 500 mm, 63.09 kg.

When selecting a rod anode, compare the required diameter, length and nominal weight with the specifications of the intended cathodic protection arrangement.

Application and Cathodic Protection

The MME ZR zinc alloy rods are sacrificial anodes intended for cathodic corrosion protection. The zinc alloy functions as a sacrificial material, corroding preferentially to help protect electrically connected metal components.

The range provides different diameters and weights for applications requiring cylindrical zinc alloy anodes. The appropriate configuration should be selected according to the dimensional requirements of the intended installation.

Technical Notes

All dimensions and weights are nominal.
Dimensions are specified in millimetres.
Technical data is subject to change without prior notice.
Other specifications are available on request from the manufacturer.

Sales Unit: 1 zinc alloy rod anode.
