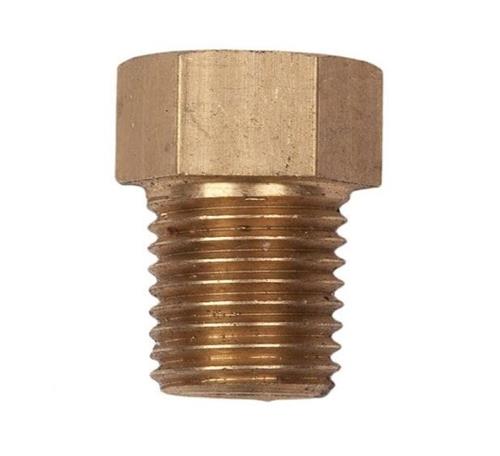

MME Bronze Plugs for Zinc Pencil Anodes

MME Bronze Plugs for Zinc Pencil Anodes – Ø10–25 mm, 1/4"–1" NPT

The MME Pencil Anode Plugs are designed for use with zinc pencil anodes of different diameters. These threaded mounting components provide a connection for installing compatible pencil anodes.

The range includes five models suitable for pencil anodes with diameters of 10, 12, 16, 20 and 25 mm. Each model has a corresponding NPT connection size, ranging from 1/4" to 1". The plug lengths vary from 19 to 36 mm.

The plugs are supplied individually and should be selected according to the diameter of the pencil anode and the required threaded connection.

Key Features

• Brand: MME
• Product Type: Threaded plug for zinc pencil anodes
• Material: Bronze
• Compatible Pencil Anode Diameters: 10, 12, 16, 20 and 25 mm
• Connection Thread: NPT
• Available Thread Sizes: 1/4", 3/8", 1/2", 3/4" and 1"
• Plug Length Range: 19–36 mm
• Available Models: MMEVMN070, MMEVMN071, MMEVMN072, MMEVMN073 and MMEVMN074
• Available Variants: 5
• Sales Unit: 1 piece

Technical Specifications and Available Models

The following table provides the compatibility, connection thread, plug length and product identification for each variant. All dimensional values are specified in millimetres unless otherwise indicated.

Construction and Threaded Connections

The MME plugs are designed as threaded mounting components for zinc pencil anodes. Each version corresponds to a specific pencil anode diameter and NPT connection size.

• MMEVMN070: For Ø10 mm pencil anodes, 1/4" NPT connection, 19 mm length.
• MMEVMN071: For Ø12 mm pencil anodes, 3/8" NPT connection, 23 mm length.
• MMEVMN072: For Ø16 mm pencil anodes, 1/2" NPT connection, 22 mm length.
• MMEVMN073: For Ø20 mm pencil anodes, 3/4" NPT connection, 36 mm length.
• MMEVMN074: For Ø25 mm pencil anodes, 1" NPT connection, 36 mm length.

Compatibility and Model Selection

When selecting an MME pencil anode plug, two specifications should be checked:

• Pencil Anode Diameter: The plug must correspond to the diameter of the zinc pencil anode being installed.
• Connection Thread: The NPT thread size must match the required threaded connection.

The available variants cover pencil diameters from 10 to 25 mm, with a dedicated plug for each diameter.

The MMEVMN073 and MMEVMN074 share the same specified length of 36 mm but have different connection threads and pencil anode compatibility.

Product Identification

Sales Unit: 1 pencil anode plug.
