The MME M Clamp is a steel mounting component designed for securing tank anodes. It features an M-shaped clamping arrangement with a maximum clamping width of 40 mm and two high-tensile steel set bolts: M10 × 40 mm and M10 × 75 mm, both with lock nuts. The technical drawing specifies a Ø14 mm upper mounting hole and a nominal net weight of 0.95 kg. Product number MMEVMN010, EAN 8720193042244. Supplied individually.
- Description
- Ask a Question
-
MME M Clamp for Tank Anodes – Steel, 40 mm Maximum Clamping Width, M10 Bolts
The MME M Clamp is a steel mounting component designed for securing tank anodes. Its M-shaped clamping arrangement provides a mechanical attachment solution for tank anode installations, with a maximum clamping width of 40 mm.
The clamp is equipped with two high-tensile steel set bolts, M10 × 40 mm and M10 × 75 mm, both fitted with lock nuts. The technical drawing also specifies a 14 mm diameter upper mounting hole and a nominal net weight of 0.95 kg.
Key Features
- Brand: MME
- Product Number: MMEVMN010
- Product Type: Tank anode mounting clamp
- Material: Steel
- Clamp Design: M-shaped
- Application: Securing tank anodes
- Maximum Clamping Width: 40 mm
- Upper Set Bolt: M10 × 40 mm with lock nut
- Clamping Set Bolt: M10 × 75 mm with lock nut
- Set Bolt Material: High-tensile steel
- Upper Mounting Hole Diameter: 14 mm
- Nominal Net Weight: 0.95 kg
- Sales Unit: 1 piece
Technical Specifications
Specification Value Brand MME Product Number MMEVMN010 Product Type M Clamp for Tank Anodes Material Steel Maximum Clamping Width 40 mm Upper Set Bolt M10 × 40 mm Clamping Set Bolt M10 × 75 mm Bolt Material High-tensile steel Lock Nuts Specified for both bolts Upper Mounting Hole Diameter 14 mm Nominal Net Weight 0.95 kg Nominal Gross Weight 0.95 kg EAN Code 8720193042244 Sales Unit 1 piece

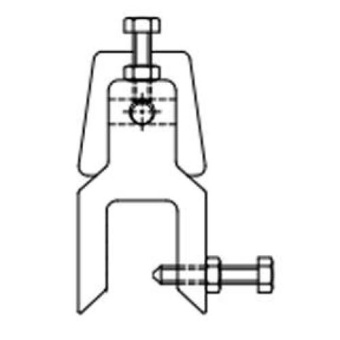

Clamp Construction
The MME M Clamp features a steel body with an M-shaped clamping arrangement. It is designed to secure tank anodes using two set bolts with lock nuts.
- Upper Connection: M10 × 40 mm high-tensile steel set bolt with lock nut.
- Clamping Connection: M10 × 75 mm high-tensile steel set bolt with lock nut.
- Maximum Clamping Width: 40 mm.
- Upper Mounting Hole: Ø14 mm.
The clamping arrangement should be checked against the mounting dimensions of the tank anode and the intended installation location.

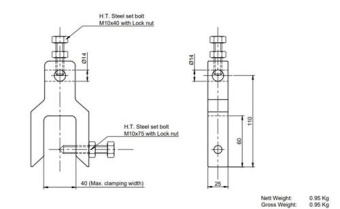

Dimensions and Installation Requirements
The technical drawing specifies a maximum clamping width of 40 mm. The clamp is equipped with two M10 set bolts of different lengths, providing the upper connection and the clamping arrangement.
The drawing also indicates a width of 25 mm and vertical reference dimensions of 60 and 110 mm. These dimensions should be interpreted together with the technical drawing when checking installation compatibility.

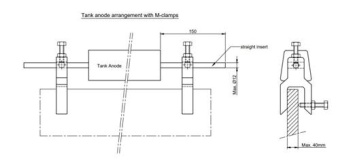

Application
The MME M Clamp is specifically designed for securing tank anodes. Its steel construction and bolted clamping arrangement provide a mechanical mounting solution for tank anode installations.
Product Identification and Packaging
- Brand: MME
- Product Number: MMEVMN010
- EAN Code: 8720193042244
- Sales Unit: 1 piece
- Packaging: Loose
- Logistics Packaging: Pallet
- Packaging Unit: 1 piece
-
