E. Polipodio RI008 Riva shaft nut anode assembly for Ø40 mm shaft installations, corresponding to Trem L8113140 and model RI-5. The complete assembly consists of a bronze ogive with zinc anode and CE screw. Technical dimensions are A Ø52 mm and overall height H 88 mm, with F thread size 26x2 mm. Material of the sacrificial anode is zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio RI008 Riva Shaft Nut Zinc Anode with Bronze Ogive – Ø40 mm, Thread 26x2
The E. Polipodio RI008 Riva Shaft Nut Anode is a complete Riva-type shaft installation comprising a bronze ogive, zinc sacrificial anode and CE screw. It corresponds to Trem L8113140 and is listed as model RI-5 Ø40.

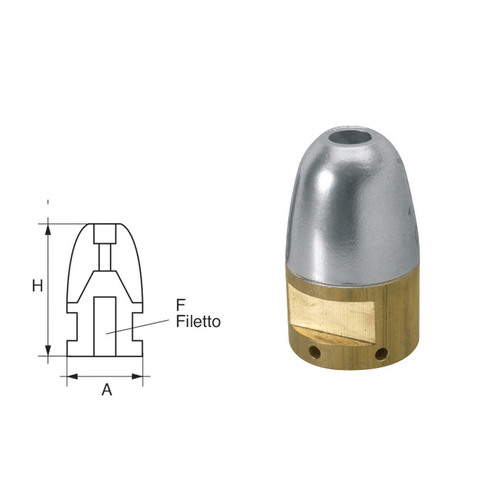

The assembly is specified for a Ø40 mm shaft. It has an outside dimension A of Ø52 mm, an overall height H of 88 mm and an F thread size of 26x2 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: RI008
- Trem Reference: L8113140
- Model: RI-5 Ø40
- Type: Riva shaft nut anode assembly
- Shaft Size: Ø40 mm
- Anode Material: Zinc (ZN)
- Ogive: Bronze
- A: Ø52 mm
- H: 88 mm
- F Thread: 26x2 mm
- Supply: Bronze ogive complete with zinc anode and CE screw
Cross Reference
E. Polipodio Trem Model Shaft Size A H F Material RI008 L8113140 RI-5 Ø40 mm Ø52 mm 88 mm 26x2 mm Zinc (ZN)
For replacement selection, compare the shaft diameter, model, A and H dimensions and F thread specification with the existing Riva shaft installation.
-
