MME Zinc Tank Sacrificial Anodes with Mounting Strips

MME Zinc Tank Sacrificial Anodes with Mounting Strips – 205–1250 mm, ZT / ZTST

The MME Zinc Tank Sacrificial Anodes are designed to provide corrosion protection for metal tanks and tank systems. Manufactured from zinc, these anodes are available in different body dimensions and mounting strip configurations to accommodate specific installation requirements.

The range includes 26 variants in 13 dimensional configurations. Each size is available in two versions: ZT with a bent-end mounting strip and ZTST with a straight mounting strip.

The rectangular zinc bodies measure from 205 to 1250 mm in length, with widths ranging from 50 to 80 mm and heights from 45 to 95 mm. The specified mounting strip lengths range from 695 to 1870 mm.

Key Features

• Brand: MME
• Product Type: Tank sacrificial anode
• Anode Material: Zinc
• Body Shape: Rectangular
• Application: Corrosion protection for metal tanks
• Function: Sacrificial corrosion protection
• Mounting Arrangement: Extended mounting strip
• Available Versions: ZT and ZTST
• ZT Version: Bent-end mounting strip
• ZTST Version: Straight mounting strip
• Body Length Range: 205–1250 mm
• Body Width Range: 50–80 mm
• Body Height Range: 45–95 mm
• Mounting Strip Length Range: 695–1870 mm
• Available Body Sizes: 13
• Total Product Variants: 26
• Sales Unit: 1 piece

Mounting Strip Configurations

The MME Zinc Tank Anodes are available in two mounting configurations, identified by their manufacturer model designations.

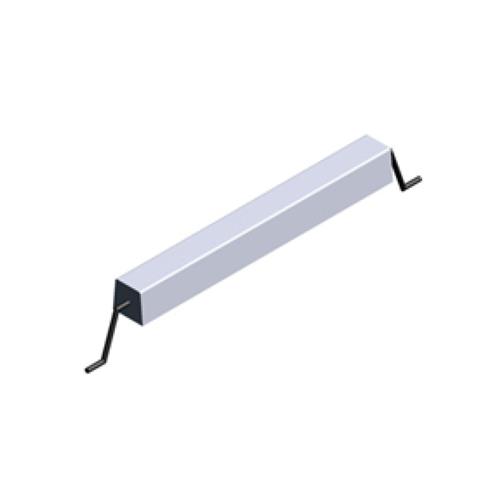

ZT – Bent-End Mounting Strip

The ZT version features an extended mounting strip with bent ends. The mounting strip projects from the zinc anode body and has angled end sections.

• Version: ZT
• Mounting Strip Design: Bent ends
• Anode Body Material: Zinc

ZTST – Straight Mounting Strip

The ZTST version features a straight mounting strip extending from both ends of the zinc anode body.

• Version: ZTST
• Mounting Strip Design: Straight
• Anode Body Material: Zinc

Corresponding ZT and ZTST models have identical stated body dimensions and mounting strip lengths but different product numbers, EAN codes and mounting configurations.

Technical Specifications and Available Models

The following table lists all 26 product variants in the original order. Body dimensions are specified as length × width × height. All dimensions are in millimetres.

Body Dimensions and Model Selection

The MME zinc tank anode range includes 13 dimensional configurations. Body dimensions are specified as length × width × height.

• MME60ZT / MME60ZTST: 205 × 65 × 70 mm, strip length 720 mm.
• MME89ZT / MME89ZTST: 305 × 63 × 70 mm, strip length 765 mm.
• MME100ZT / MME100ZTST: 500 × 50 × 67 mm, strip length 960 mm.
• MME120ZT / MME120ZTST: 235 × 80 × 95 mm, strip length 695 mm.
• MME150ZT / MME150ZTST: 650 × 65 × 60 mm, strip length 1150 mm.
• MME156ZT / MME156ZTST: 305 × 80 × 95 mm, strip length 765 mm.
• MME200ZT / MME200ZTST: 800 × 60 × 60 mm, strip length 1310 mm.
• MME210ZT / MME210ZTST: 1200 × 57 × 45 mm, strip length 1660 mm.
• MME215ZT / MME215ZTST: 500 × 80 × 75 mm, strip length 960 mm.
• MME250ZT / MME250ZTST: 1100 × 60 × 65 mm, strip length 1560 mm.
• MME300ZT / MME300ZTST: 1250 × 65 × 65 mm, strip length 1870 mm.
• MME400ZT / MME400ZTST: 1250 × 65 × 68 mm, strip length 1870 mm.
• MME500ZT / MME500ZTST: 1250 × 67 × 85 mm, strip length 1870 mm.

Several models share the same body length but differ in width or height. The MME300ZT, MME400ZT and MME500ZT families all have a body length of 1250 mm and a strip length of 1870 mm, but their body cross-sections are different.

For accurate replacement selection, compare all three body dimensions rather than body length alone.

Mounting Strip Specifications

The mounting strip length is specified separately from the zinc body length. The range includes the following strip length configurations:

Corresponding ZT and ZTST models have the same stated strip length. The mounting configuration differs between the bent-end and straight-strip versions.

The mounting strip material, width and thickness are not specified in the available product information.

Application and Corrosion Protection

The MME zinc tank anodes provide sacrificial corrosion protection for metal tanks and tank systems. The zinc body functions as a sacrificial component to help protect electrically connected metal surfaces against corrosion.

The range offers 13 body sizes and two mounting strip configurations. Selection should be based on the required body dimensions, strip length and mounting arrangement.

Product Identification

All 26 variants have individual manufacturer product numbers and EAN codes. The full identification information is included in the technical specifications table above.

Sales Unit: 1 zinc tank sacrificial anode.
