MME Zinc Pencil Anodes

ID 1398856

$ 6.13

1-2 weeks delivery time

Diameter, mm:

Length, mm:

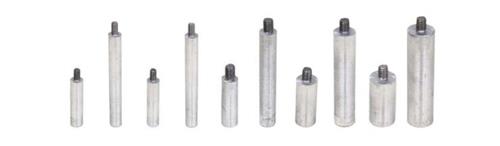

The MME Zinc Pencil Anodes are rod-shaped sacrificial anodes designed to provide corrosion protection for metal components. Manufactured from zinc, the range includes 10 variants with diameters of 10, 12, 16, 20 and 25 mm, each available in lengths of 50 or 100 mm. The cylindrical design provides a range of dimensional options for selecting replacement anodes according to the required diameter and length. Available models include MMEZP10-100, MMEZP10-50, MMEZP12-100, MMEZP12-50, MMEZP16-100, MMEZP16-50, MMEZP20-100, MMEZP20-50, MMEZP25-100 and MMEZP25-50. Each anode is supplied individually.

Description
Ask a Question

MME Zinc Pencil Anodes – Ø10–25 mm, 50–100 mm Length

The MME Zinc Pencil Anodes are rod-shaped sacrificial anodes designed to provide corrosion protection for metal components. Manufactured from zinc, these anodes are available in different diameters and lengths to accommodate specific replacement dimensions.

The range includes 10 product variants with diameters of 10, 12, 16, 20 and 25 mm. Each diameter is available in two lengths: 50 mm and 100 mm. All models feature a cylindrical rod-shaped body and are supplied individually.

Key Features

Brand: MME
Product Type: Pencil sacrificial anode
Material: Zinc
Shape: Rod / Cylindrical
Function: Sacrificial corrosion protection
Available Diameters: 10, 12, 16, 20 and 25 mm
Available Lengths: 50 and 100 mm
Diameter Range: 10–25 mm
Length Range: 50–100 mm
Available Variants: 10 models
Sales Unit: 1 piece

Technical Specifications and Available Models

The MME zinc pencil anode range includes 10 models with different diameter and length combinations. All dimensions are specified in millimetres.

Product Number	Technical Specifications
MMEZP10-100	Diameter: 10 mm Length: 100 mm Material: Zinc EAN: 8720193042428
MMEZP10-50	Diameter: 10 mm Length: 50 mm Material: Zinc EAN: 8720193042435
MMEZP12-100	Diameter: 12 mm Length: 100 mm Material: Zinc EAN: 8720193042442
MMEZP12-50 (1/4")	Diameter: 12 mm Length: 50 mm Material: Zinc EAN: 8720193042459
MMEZP16-100	Diameter: 16 mm Length: 100 mm Material: Zinc EAN: 8720193042466
MMEZP16-50	Diameter: 16 mm Length: 50 mm Material: Zinc EAN: 8720193042473
MMEZP20-100	Diameter: 20 mm Length: 100 mm Material: Zinc EAN: 8720193042480
MMEZP20-50	Diameter: 20 mm Length: 50 mm Material: Zinc EAN: 8720193042497
MMEZP25-100	Diameter: 25 mm Length: 100 mm Material: Zinc EAN: 8720193042503
MMEZP25-50	Diameter: 25 mm Length: 50 mm Material: Zinc EAN: 8720193042510

Zinc Anode Construction

The MME pencil anodes are manufactured from zinc and feature a cylindrical rod-shaped body. The models differ in diameter and overall length.

Material: Zinc.
Body Shape: Cylindrical rod.
Diameter Options: Ø10, Ø12, Ø16, Ø20 and Ø25 mm.
Length Options: 50 and 100 mm.

Each diameter is available in both length options, providing a total of 10 dimensional combinations.

Dimensions and Model Selection

The MME zinc pencil anode range is available in five diameter groups. Dimensions are specified as diameter × length.

Ø10 mm Zinc Pencil Anodes

MMEZP10-100: Ø10 × 100 mm.
MMEZP10-50: Ø10 × 50 mm.

Ø12 mm Zinc Pencil Anodes

MMEZP12-100: Ø12 × 100 mm.
MMEZP12-50 (1/4"): Ø12 × 50 mm.

Ø16 mm Zinc Pencil Anodes

MMEZP16-100: Ø16 × 100 mm.
MMEZP16-50: Ø16 × 50 mm.

Ø20 mm Zinc Pencil Anodes

MMEZP20-100: Ø20 × 100 mm.
MMEZP20-50: Ø20 × 50 mm.

Ø25 mm Zinc Pencil Anodes

MMEZP25-100: Ø25 × 100 mm.
MMEZP25-50: Ø25 × 50 mm.

When selecting a replacement pencil anode, compare the specified diameter and length with the dimensions required for the existing installation.

Corrosion Protection

The zinc pencil anodes are designed to provide sacrificial corrosion protection. The zinc body functions as a sacrificial component, corroding preferentially to help protect connected metal components against corrosion.

The range provides different diameter and length combinations for applications requiring zinc pencil anodes.

Product Identification

The following table lists the manufacturer product numbers and corresponding EAN codes for all 10 variants.

Product Number	EAN Code
MMEZP10-100	8720193042428
MMEZP10-50	8720193042435
MMEZP12-100	8720193042442
MMEZP12-50 (1/4")	8720193042459
MMEZP16-100	8720193042466
MMEZP16-50	8720193042473
MMEZP20-100	8720193042480
MMEZP20-50	8720193042497
MMEZP25-100	8720193042503
MMEZP25-50	8720193042510

Sales Unit: 1 zinc pencil anode.
