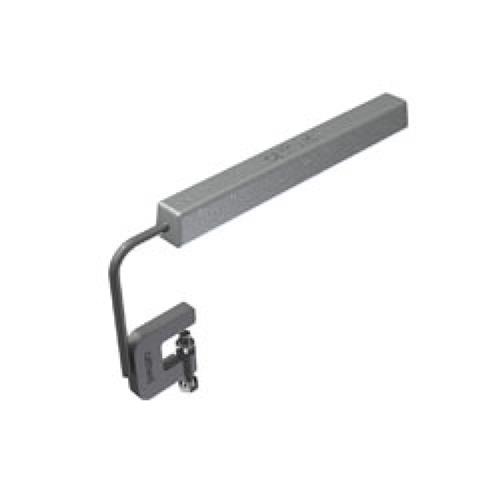

MME Pitguard Aluminium Sacrificial Anodes

ID 1398867

$ 72.12

1-2 weeks delivery time

Size:

205x63x70
305x63x70
235x80x95
305x80x95

The MME Pitguard Aluminium Anodes are designed to provide sacrificial corrosion protection for boat hulls and marine metal components. Manufactured from aluminium, the range includes four models with body lengths of 205, 235 and 305 mm, widths of 63 or 80 mm and heights of 70 or 95 mm. The MME22AP and MME33AP feature bodies measuring 205 × 63 × 70 mm and 305 × 63 × 70 mm, respectively, while the MME45AP and MME58AP measure 235 × 80 × 95 mm and 305 × 80 × 95 mm. Specified anode strip lengths range from 260 to 360 mm, depending on the model. Each anode is supplied individually.

Description
Ask a Question

MME Pitguard Aluminium Sacrificial Anodes – 205–305 mm, 4 Sizes

The MME Pitguard Aluminium Anodes are designed to provide sacrificial corrosion protection for boat hulls and marine metal components. Manufactured from aluminium, these anodes are available in four models with different body dimensions and anode strip lengths.

The range includes MME22AP, MME33AP, MME45AP and MME58AP. The anode bodies measure between 205 and 305 mm in length, with widths of 63 or 80 mm and heights of 70 or 95 mm. Specified anode strip lengths range from 260 to 360 mm.

Key Features

Brand: MME
Product Series: Pitguard
Product Type: Sacrificial anode
Anode Material: Aluminium
Application: Corrosion protection for boat hulls and marine metal components
Function: Sacrificial corrosion protection
Body Length Range: 205–305 mm
Available Body Widths: 63 and 80 mm
Available Body Heights: 70 and 95 mm
Anode Strip Length Range: 260–360 mm
Available Models: MME22AP, MME33AP, MME45AP and MME58AP
Sales Unit: 1 piece

Technical Specifications and Available Models

The MME Pitguard aluminium anode range includes four models with different body dimensions and strip lengths. All dimensions are specified in millimetres.

Model / Product Number	Technical Specifications
MME22AP	Body Length: 205 mm Body Width: 63 mm Body Height: 70 mm Anode Strip Length: 260 mm Material: Aluminium
MME33AP	Body Length: 305 mm Body Width: 63 mm Body Height: 70 mm Anode Strip Length: 360 mm Material: Aluminium
MME45AP	Body Length: 235 mm Body Width: 80 mm Body Height: 95 mm Anode Strip Length: 290 mm Material: Aluminium
MME58AP	Body Length: 305 mm Body Width: 80 mm Body Height: 95 mm Anode Strip Length: 360 mm Material: Aluminium

Construction and Dimensions

The MME Pitguard anodes are manufactured from aluminium and feature model-specific body dimensions and anode strip lengths.

The range includes two dimensional groups:

63 mm Width / 70 mm Height: MME22AP and MME33AP, with body lengths of 205 and 305 mm respectively.
80 mm Width / 95 mm Height: MME45AP and MME58AP, with body lengths of 235 and 305 mm respectively.

The anode strip length is specified separately from the body length and varies according to the selected model.

Anode Strip Specifications

The following anode strip lengths are specified for the individual models:

MME22AP: 260 mm.
MME33AP: 360 mm.
MME45AP: 290 mm.
MME58AP: 360 mm.

The MME33AP and MME58AP share the same specified strip length of 360 mm but have different body widths and heights.

Dimensions and Model Selection

The four variants have different body dimensions. All dimensions are specified as length × width × height.

MME22AP: Aluminium anode measuring 205 × 63 × 70 mm, with a specified anode strip length of 260 mm.
MME33AP: Aluminium anode measuring 305 × 63 × 70 mm, with a specified anode strip length of 360 mm.
MME45AP: Aluminium anode measuring 235 × 80 × 95 mm, with a specified anode strip length of 290 mm.
MME58AP: Aluminium anode measuring 305 × 80 × 95 mm, with a specified anode strip length of 360 mm.

The MME22AP and MME33AP share the same width of 63 mm and height of 70 mm. The MME33AP has a longer body and a longer anode strip.

The MME45AP and MME58AP share the same width of 80 mm and height of 95 mm. They differ in body length and anode strip length.

When selecting a replacement anode, compare the body dimensions and anode strip length with the required installation dimensions.

Application and Corrosion Protection

The MME Pitguard aluminium anodes are designed to provide sacrificial corrosion protection for marine metal components. The aluminium anode functions as a sacrificial component, corroding preferentially to help protect the connected metal structure against corrosion.

The range provides four dimensional configurations for marine corrosion protection applications.
