ID
1398613
$ 18.96
1-2 weeks delivery time
Size:
- 110x60x28
- 180x65x25
- 200x70x25
- 150x90x40
- 200x95x25

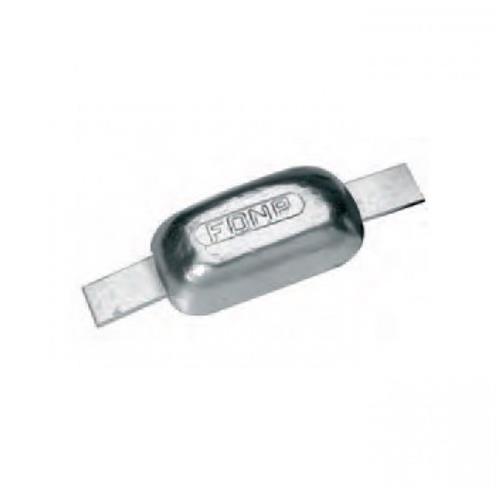

The Hollex Aluminium Weld-On Anode is a rectangular sacrificial anode designed for welded installation on boat hulls and rudders to protect metal components against corrosion in brackish water. Available in five models with body dimensions ranging from 110 × 60 × 28 mm to 200 × 95 × 25 mm, including a 150 × 90 × 40 mm version. The anodes feature welding strips with lengths of 190 or 300 mm. Models FAL-06, FAL-09, FAL-1 and FAL-14 have a strip width of 30 mm and a strip D dimension of 5 mm. Manufactured from aluminium for sacrificial corrosion protection.
- Description
- Ask a Question
-
Hollex Aluminium Weld-On Hull and Rudder Anode – Rectangular, FAL Series
The Hollex Aluminium Weld-On Anode is a rectangular sacrificial anode designed to protect metal components of boat hulls and rudders against corrosion. The aluminium anode corrodes preferentially, helping to protect other metal parts of the vessel.
Designed for welded installation, these anodes are suitable for brackish water environments where freshwater and saltwater mix. The range includes five FAL models with different body dimensions and welding strip lengths, allowing selection according to the required anode size.
Key Features
- Brand: Hollex
- Product Type: Sacrificial weld-on anode
- Material: Aluminium
- Shape: Rectangular
- Installation Type: Weld-on
- Application: Boat hulls and rudders
- Suitable Water Type: Brackish water
- Function: Sacrificial corrosion protection for metal components
- Available Models: FAL-06, FAL-09, FAL-1, FAL-14 and FAL-1/3
Technical Specifications and Available Models
Model Product No. Length (mm) Width (mm) Height (mm) Strip L (mm) Strip B (mm) Strip D (mm) FAL-06 5972 110 60 28 190 30 5 FAL-09 5969 180 65 25 300 30 5 FAL-1 5967 200 70 25 300 30 5 FAL-14 5975 200 95 25 300 30 5 FAL-1/3 115102789 150 90 40 300 Not specified Not specified
Dimensions and Model Selection
The anode body dimensions are specified as length × width × height. Welding strip dimensions are identified separately as Strip L, Strip B and Strip D.
- FAL-06: 110 × 60 × 28 mm body with a 190 mm welding strip.
- FAL-09: 180 × 65 × 25 mm body with a 300 mm welding strip.
- FAL-1: 200 × 70 × 25 mm body with a 300 mm welding strip.
- FAL-14: 200 × 95 × 25 mm body with a 300 mm welding strip.
- FAL-1/3: 150 × 90 × 40 mm body with a 300 mm welding strip.
Installation and Corrosion Protection
The anode is designed to be welded to the boat's hull or rudder. It functions as a sacrificial component, corroding instead of other metal parts to help prevent corrosion damage.
Aluminium weld-on anodes are suitable for brackish water environments. Anode material selection depends on the type of water in which the vessel operates:
- Magnesium Anodes: Freshwater environments.
- Zinc Anodes: Saltwater environments.
- Aluminium Anodes: Brackish water environments.
Product Identification
Model Product Number EAN Code FAL-06 5972 1957000030560 FAL-09 5969 1957000001577 FAL-1 5967 1957000029557 FAL-14 5975 1957000030546 FAL-1/3 115102789 Not specified
Sales Unit: 1 piece for models FAL-06, FAL-09, FAL-1 and FAL-14.
-
