Super Marine zinc narrow shaft collar anodes designed for sacrificial corrosion protection where installation space around the propeller shaft is limited. The range covers shaft diameters from Ø19 to Ø60 mm with collar thicknesses from 15 to 27.5 mm. Selected Ø25 and Ø30 mm sizes are available both packaged and in bulk versions, while the remaining models are supplied packaged.
- Description
- Ask a Question
-

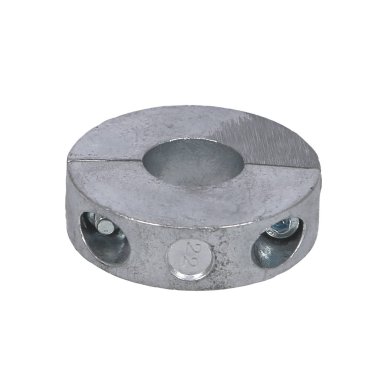

Super Marine Zinc Narrow Shaft Collar Anodes – Shaft Ø19–60 mm
The Super Marine zinc narrow shaft collar anodes are compact sacrificial anodes designed for direct installation around marine propeller shafts where limited axial space is available.
The range covers shaft diameters from Ø19 to Ø60 mm. Each model has a specific collar thickness matched to the shaft size. Ø25 and Ø30 mm versions are available in both packaged and bulk configurations.
Available Models
VDM Code Shaft Diameter Thickness Weight Supply ANO801 Ø19 mm 25.4 mm 0.32 kg Packaged ANO806 Ø22 mm 15 mm 0.22 kg Packaged ANO812 Ø25 mm 15 mm 0.22 kg Packaged ANO900812 Ø25 mm 15 mm 0.22 kg Bulk ANO818 Ø30 mm 15 mm 0.20 kg Packaged ANO900818 Ø30 mm 15 mm 0.20 kg Bulk ANO836 Ø35 mm 15 mm 0.32 kg Packaged ANO841 Ø40 mm 16 mm 0.32 kg Packaged ANO851 Ø45 mm 17 mm 0.43 kg Packaged ANO852 Ø50 mm 25 mm 0.61 kg Packaged ANO861 Ø60 mm 27.5 mm 1.56 kg Packaged
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Narrow shaft collar anode
- Shaft Diameter Range: Ø19–60 mm
- Thickness Range: 15–27.5 mm
- Application: Sacrificial corrosion protection of marine propeller shafts
Select the correct model according to the propeller shaft diameter, available installation width and required supply configuration.
-
