ID
1401025
$ 12.15
1-2 weeks delivery time
Shaft Diameter:
- 22
- 25
- 28.6
- 30
- 35
- 38
- 40
- 50
- 55
- 57.1
- 70
- 75
- 80
Weight, kg:
- 310 g
- 551 g
- 450 g
- 557 g
- 730 g
- 760 g
- 1429 g
- 1075 g
- 1080 g
- 1010 g
- 3484 g
- 2570 g
- 4160 g
Item:
- Packaged
- Bulk + Screws
Super Marine zinc shaft rounded anodes for sacrificial corrosion protection of marine propeller shafts. The range covers shaft diameters from Ø19 to Ø90 mm, including metric and imperial-equivalent sizes, with zinc weights from 0.31 to 4.16 kg. Depending on the model, the anodes are supplied packaged or in bulk with mounting screws, with selected shaft sizes available in both configurations.
- Description
- Ask a Question
-
Super Marine Zinc Shaft Rounded Anodes – Shaft Ø19–90 mm

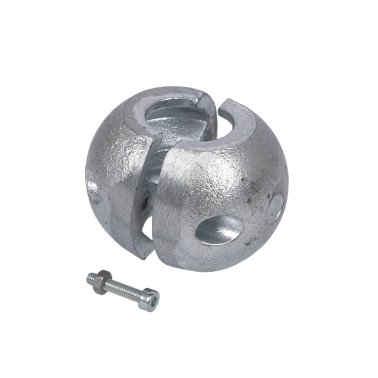

The Super Marine zinc shaft rounded anodes are sacrificial anodes designed for corrosion protection of marine propeller shafts. Their split construction allows installation directly around the shaft.
The range covers shaft diameters from Ø19 to Ø90 mm. Selected sizes are available in both packaged and bulk-with-screws versions, while larger sizes are supplied in bulk with mounting screws.
Available Models
VDM Code Shaft Diameter Weight Supply ANO800 Ø19 mm 0.38 kg Packaged ANO805 Ø22 mm 0.31 kg Packaged ANO900805 Ø22 mm 0.31 kg Bulk + Screws ANO810 Ø25 mm 0.551 kg Packaged ANO900810 Ø25 mm 0.551 kg Bulk + Screws ANO811 Ø25.4 mm 0.45 kg Packaged ANO814 Ø28 mm 0.58 kg Packaged ANO815 Ø28.6 mm 0.45 kg Packaged ANO817 Ø30 mm 0.557 kg Packaged ANO900817 Ø30 mm 0.557 kg Bulk + Screws ANO820 Ø31.8 mm 0.53 kg Packaged ANO834 Ø34 mm 0.79 kg Packaged ANO835 Ø35 mm 0.73 kg Packaged ANO900835 Ø35 mm 0.73 kg Bulk + Screws ANO838 Ø38 mm 0.76 kg Packaged ANO840 Ø40 mm 1.429 kg Packaged ANO900840 Ø40 mm 1.429 kg Bulk + Screws ANO845 Ø45 mm 1.262 kg Packaged ANO850 Ø50 mm 1.075 kg Packaged ANO900850 Ø50 mm 1.075 kg Bulk + Screws ANO8508 Ø50.8 mm 1.347 kg Bulk + Screws ANO855 Ø55 mm 1.08 kg Bulk + Screws ANO857 Ø57.1 mm 1.01 kg Bulk + Screws ANO860 Ø60 mm 2.268 kg Bulk + Screws ANO865 Ø65 mm 3.50 kg Bulk + Screws ANO870 Ø70 mm 3.484 kg Bulk + Screws ANO875 Ø75 mm 2.57 kg Bulk + Screws ANO880 Ø80 mm 4.16 kg Bulk + Screws ANO42500 Ø90 mm 3.65 kg Bulk + Screws
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Shaft rounded anode
- Shaft Diameter Range: Ø19–90 mm
- Supply Options: Packaged or Bulk + Screws
- Application: Sacrificial corrosion protection of marine propeller shafts
Select the correct model according to the propeller shaft diameter and required supply configuration.
-
