ID
1398632
$ 25.28
1-2 weeks delivery time
Size:
- 150x60x25
- 250x65x38
- 250x70x38

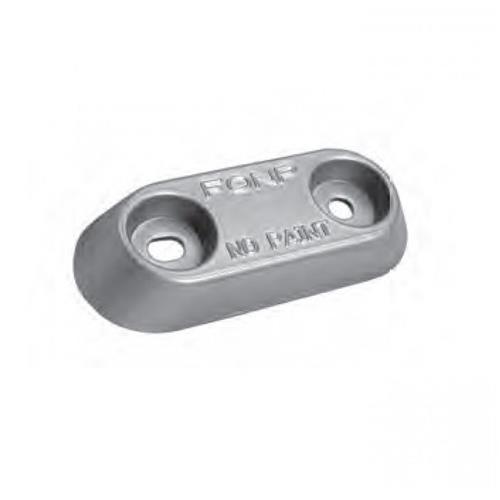

The Hollex Type V Zinc Anode is a rectangular sacrificial anode designed for corrosion protection of boat hulls and rudders in saltwater environments. Available in three models: V 15C (150 × 60 × 25 mm), V 25C (250 × 65 × 38 mm) and V 35C (250 × 70 × 38 mm). The anodes feature two mounting holes with centre-to-centre spacings of 80, 140 or 200 mm, depending on the model. Manufactured from zinc, these anodes provide sacrificial corrosion protection for metal components and are supplied individually.
- Description
- Ask a Question
-
Hollex Type V Zinc Hull and Rudder Anode – Rectangular, 150–250 mm
The Hollex Type V Zinc Hull and Rudder Anode is a rectangular sacrificial anode designed to protect metal components of boats against corrosion. Manufactured from zinc, it is suitable for use in saltwater environments.
The anode is designed for installation on boat hulls and rudders and features two mounting holes. Three models are available, with body lengths of 150 and 250 mm. The body width, height and mounting hole spacing vary by model, allowing selection according to the required installation dimensions.
Key Features
- Brand: Hollex
- Product Type: Sacrificial hull and rudder anode
- Series: Type V
- Material: Zinc
- Shape: Rectangular
- Application: Boat hulls and rudders
- Suitable Water Type: Saltwater
- Function: Sacrificial corrosion protection for metal components
- Mounting: Two mounting holes
- Available Models: V 15C, V 25C and V 35C
- Sales Unit: 1 piece
Technical Specifications and Available Models
Specification V 15C V 25C V 35C Product Number 5952 5954 5956 Material Zinc Zinc Zinc Shape Rectangular Rectangular Rectangular Length 150 mm 250 mm 250 mm Width 60 mm 65 mm 70 mm Height 25 mm 38 mm 38 mm Hole Spacing (H.o.H.) 80 mm 140 mm 200 mm Sales Unit 1 piece 1 piece 1 piece
Dimensions and Model Selection
The Type V series includes three zinc anodes with different body dimensions and mounting hole spacings. Body dimensions are specified as length × width × height.
- V 15C (5952): 150 × 60 × 25 mm body with 80 mm mounting hole spacing.
- V 25C (5954): 250 × 65 × 38 mm body with 140 mm mounting hole spacing.
- V 35C (5956): 250 × 70 × 38 mm body with 200 mm mounting hole spacing.
Models V 25C and V 35C have the same body length and height but differ in width and mounting hole spacing. These dimensions should be checked when selecting a replacement anode.
Mounting and Corrosion Protection
The rectangular anode features two mounting holes for installation on the boat's hull or rudder. When selecting a replacement, the overall body dimensions and centre-to-centre mounting hole distance should be matched to the required installation dimensions.
The zinc anode acts as a sacrificial component, corroding preferentially to help protect other metal parts of the vessel from corrosion damage.
The appropriate anode material depends on the water environment in which the vessel operates:
- Magnesium Anodes: Suitable for freshwater environments.
- Zinc Anodes: Suitable for saltwater environments.
- Aluminium Anodes: Suitable for brackish water environments where freshwater and saltwater mix.
Product Identification
Model Product Number EAN Code V 15C 5952 1957000007753 V 25C 5954 1957000007760 V 35C 5956 1957000008552
Package Contents: 1 zinc hull and rudder anode.
-
