ID
1398622
$ 31.60
1-2 weeks delivery time
Size:
- 110x60x28
- 200x70x25
- 200x95x25
- 180x65x30
- 150x90x25
The Hollex Zinc Weld-On Anode is a rectangular sacrificial anode designed for welded installation on boat hulls and rudders to protect metal components against corrosion in saltwater environments. Available in five models (F1, F1-2, F1-3, FR-2 and F-2.7), with body dimensions ranging from 110 × 60 × 28 mm to 200 × 95 × 25 mm. Depending on the model, the anodes feature welding strips measuring 190, 290 or 300 mm in length, with a uniform strip width of 30 mm and a D dimension of 5 mm. Manufactured from zinc and supplied individually for marine corrosion protection.
- Description
- Ask a Question
-

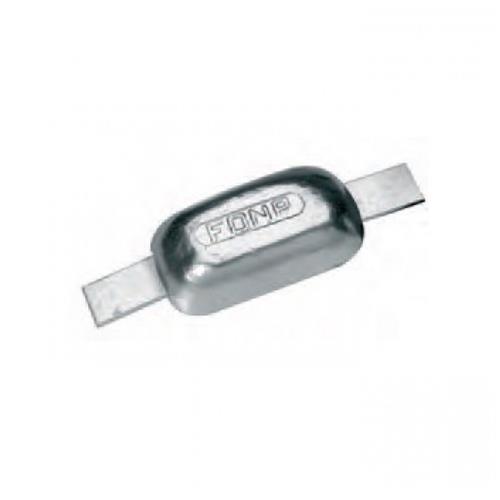

Hollex Zinc Weld-On Hull and Rudder Anode – Rectangular, F Series
The Hollex Zinc Weld-On Anode is a rectangular sacrificial anode designed to protect metal components of boat hulls and rudders against corrosion in saltwater environments. The zinc anode corrodes preferentially, helping to protect other metal parts of the vessel from corrosion damage.
Designed for welded installation, these anodes are suitable for saltwater applications, including ocean environments. The range includes five models with different body dimensions and welding strip lengths, allowing selection according to the required anode size.
Key Features
- Brand: Hollex
- Product Type: Sacrificial weld-on anode
- Material: Zinc
- Shape: Rectangular
- Installation Type: Weld-on
- Application: Boat hulls and rudders
- Suitable Water Type: Saltwater
- Function: Sacrificial corrosion protection for metal components
- Available Models: F1, F1-2, F1-3, FR-2 and F-2.7
- Sales Unit: 1 piece
Technical Specifications and Available Models
Model Product No. Body Dimensions (L × W × H) Strip Dimensions (L × B × D) F1 5971 110 × 60 × 28 mm 190 × 30 × 5 mm F1-2 5966 200 × 70 × 25 mm 300 × 30 × 5 mm F1-3 5976 150 × 90 × 25 mm 290 × 30 × 5 mm FR-2 5968 180 × 65 × 30 mm 300 × 30 × 5 mm F-2.7 5974 200 × 95 × 25 mm 300 × 30 × 5 mm
Dimensions and Model Selection
The zinc anode range is available in five sizes. Body dimensions are specified as length × width × height, while the welding strip dimensions are identified separately as Strip L, Strip B and Strip D.
- F1 (5971): 110 × 60 × 28 mm body with a 190 × 30 × 5 mm welding strip.
- F1-2 (5966): 200 × 70 × 25 mm body with a 300 × 30 × 5 mm welding strip.
- F1-3 (5976): 150 × 90 × 25 mm body with a 290 × 30 × 5 mm welding strip.
- FR-2 (5968): 180 × 65 × 30 mm body with a 300 × 30 × 5 mm welding strip.
- F-2.7 (5974): 200 × 95 × 25 mm body with a 300 × 30 × 5 mm welding strip.
Installation and Corrosion Protection
The anode is designed to be welded to the boat's hull or rudder. It functions as a sacrificial component, corroding instead of other metal parts to help prevent corrosion damage.
Zinc anodes are intended for saltwater applications. The appropriate anode material depends on the water environment in which the vessel operates:
- Magnesium Anodes: Suitable for freshwater environments.
- Zinc Anodes: Suitable for saltwater environments, including ocean waters.
- Aluminium Anodes: Suitable for brackish water environments where freshwater and saltwater mix.
Product Identification
Model Product Number EAN Code F1 5971 1957000022572 F1-2 5966 1957000022503 F1-3 5976 1957000022497 FR-2 5968 1957000022541 F-2.7 5974 1957000030553
Package Contents: 1 zinc weld-on anode.
-
