Hollex MGF Magnesium Weld-On Hull & Rudder Rectangular Anode

ID 1398619

$ 24.85

1-2 weeks delivery time

Size:

110x60x28
180x65x30

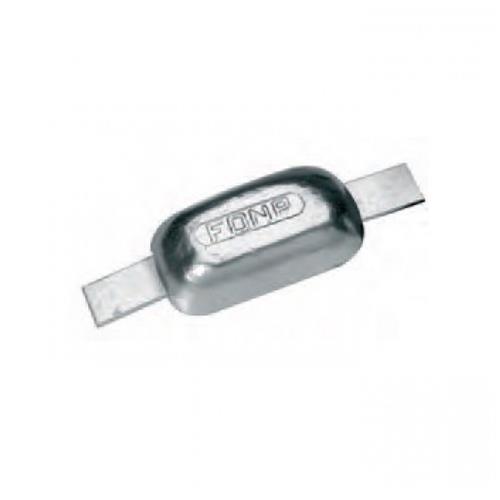

The Hollex Magnesium Weld-On Anode is a rectangular sacrificial anode designed for welded installation on boat hulls and rudders to protect metal components against corrosion in freshwater environments. Available in two models: MGF-1 (110 × 60 × 28 mm) with a 190 mm welding strip and MGF-3 (180 × 65 × 30 mm) with a 300 mm welding strip. Both versions feature a strip width of 30 mm and a strip D dimension of 5 mm. Manufactured from magnesium and supplied individually, these anodes are suitable for freshwater applications, including lakes and rivers.

Description
Ask a Question

Hollex Magnesium Weld-On Hull and Rudder Anode – Rectangular, MGF Series

The Hollex Magnesium Weld-On Anode is a rectangular sacrificial anode designed to protect metal components of boat hulls and rudders against corrosion in freshwater environments. The magnesium anode acts as a sacrificial component, corroding preferentially to help protect other metal parts of the vessel.

Designed for welded installation, these anodes are suitable for freshwater applications, including lakes and rivers. The MGF series includes two models with different body dimensions and welding strip lengths, allowing selection according to the required anode size.

Key Features

Brand: Hollex
Product Type: Sacrificial weld-on anode
Material: Magnesium
Shape: Rectangular
Installation Type: Weld-on
Application: Boat hulls and rudders
Suitable Water Type: Freshwater
Function: Sacrificial corrosion protection for metal components
Available Models: MGF-1 and MGF-3
Sales Unit: 1 piece

Technical Specifications and Available Models

Specification	MGF-1	MGF-3
Product Number	5973	5970
Material	Magnesium	Magnesium
Shape	Rectangular	Rectangular
Body Length	110 mm	180 mm
Body Width	60 mm	65 mm
Body Height	28 mm	30 mm
Strip L	190 mm	300 mm
Strip B	30 mm	30 mm
Strip D	5 mm	5 mm
Sales Unit	1 piece	1 piece

Dimensions and Model Selection

The MGF series is available in two sizes. Body dimensions are specified as length × width × height, while the welding strip dimensions are identified separately as Strip L, Strip B and Strip D.

MGF-1 (5973): Body dimensions of 110 × 60 × 28 mm, with a welding strip measuring 190 × 30 × 5 mm.
MGF-3 (5970): Body dimensions of 180 × 65 × 30 mm, with a welding strip measuring 300 × 30 × 5 mm.

Installation and Corrosion Protection

The anode is designed to be welded to the boat's hull or rudder. It functions as a sacrificial component, corroding instead of other metal parts to help prevent corrosion damage.

Magnesium anodes are intended for freshwater applications. Selecting the appropriate anode material depends on the water environment in which the vessel operates:

Magnesium Anodes: Suitable for freshwater environments, including lakes and rivers.
Zinc Anodes: Suitable for saltwater environments.
Aluminium Anodes: Suitable for brackish water environments where freshwater and saltwater mix.

Product Identification

Model	Product Number	EAN Code
MGF-1	5973	1957000007166
MGF-3	5970	1957000007128

Package Contents: 1 magnesium weld-on anode.
