Osculati Zinc Bolt-On Sacrificial Anodes with Rubber Plate

ID 1400016

$ 61.77

1-2 weeks delivery time

Size:

147x65x22
151x69x26
200x80x22
210x100x32
300x160x28

Item:

1500 g
2500 g
1200 g
8000 g
4180 g

Osculati bolt-on zinc sacrificial anodes fitted with a rubber plate, available in five sizes for marine bolt-on installations. The range includes models from 147 to 300 mm in length, 65 to 160 mm in width and 22 to 32 mm in height, with weights from 1.2 to 8.0 kg. Hole spacing ranges from 70 to 160 mm, with mounting-hole sizes of 13x35 mm, 19x25 mm or 17x25 mm depending on the model. Select the required Osculati anode according to overall dimensions, hole spacing, mounting-hole size and weight.

Description
Ask a Question

Osculati Zinc Bolt-On Sacrificial Anodes with Rubber Plate – 147–300 mm

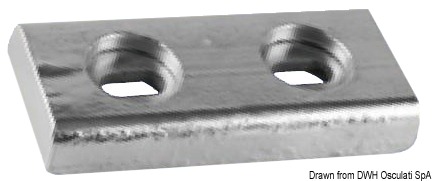

The Osculati Zinc Bolt-On Anodes are rectangular sacrificial anodes supplied with a rubber plate. The range includes five models with different overall dimensions, mounting-hole spacing, hole sizes and weights.

Available versions range from 147 to 300 mm in length, 65 to 160 mm in width and 22 to 32 mm in height. Anode weights range from 1.2 to 8.0 kg. Depending on the model, mounting-hole spacing ranges from 70 to 160 mm.

Key Features

Brand: Osculati
Type: Bolt-On Plate Anode
Material: Zinc
Rubber Plate: Fitted
Number of Variants: 5
Length Range (L): 147–300 mm
Width Range (A): 65–160 mm
Height Range (H): 22–32 mm
Hole Spacing Range (I): 70–160 mm
Weight Range: 1.2–8.0 kg

Available Models and Technical Specifications

Osculati Code	Length (L)	Width (A)	Height (H)	Hole Spacing (I)	Hole Size (Ø)	Weight
43.920.01	147 mm	65 mm	22 mm	70 mm	13x35 mm	1.2 kg / 1200 g
43.920.02	151 mm	69 mm	26 mm	75 mm	13x35 mm	1.5 kg / 1500 g
43.920.03	200 mm	80 mm	22 mm	110 mm	13x35 mm	2.5 kg / 2500 g
43.920.04	210 mm	100 mm	32 mm	110 mm	19x25 mm	4.18 kg / 4180 g
43.920.06	300 mm	160 mm	28 mm	160 mm	17x25 mm	8.0 kg / 8000 g

Osculati 43.920.01 – 147 × 65 × 22 mm

Material: Zinc
Length (L): 147 mm
Width (A): 65 mm
Height (H): 22 mm
Hole Spacing (I): 70 mm
Hole Size (Ø): 13x35 mm
Weight: 1.2 kg / 1200 g
Rubber Plate: Fitted

Osculati 43.920.02 – 151 × 69 × 26 mm

Material: Zinc
Length (L): 151 mm
Width (A): 69 mm
Height (H): 26 mm
Hole Spacing (I): 75 mm
Hole Size (Ø): 13x35 mm
Weight: 1.5 kg / 1500 g
Rubber Plate: Fitted

Osculati 43.920.03 – 200 × 80 × 22 mm

Material: Zinc
Length (L): 200 mm
Width (A): 80 mm
Height (H): 22 mm
Hole Spacing (I): 110 mm
Hole Size (Ø): 13x35 mm
Weight: 2.5 kg / 2500 g
Rubber Plate: Fitted

Osculati 43.920.04 – 210 × 100 × 32 mm

Material: Zinc
Length (L): 210 mm
Width (A): 100 mm
Height (H): 32 mm
Hole Spacing (I): 110 mm
Hole Size (Ø): 19x25 mm
Weight: 4.18 kg / 4180 g
Rubber Plate: Fitted

Osculati 43.920.06 – 300 × 160 × 28 mm

Material: Zinc
Length (L): 300 mm
Width (A): 160 mm
Height (H): 28 mm
Hole Spacing (I): 160 mm
Hole Size (Ø): 17x25 mm
Weight: 8.0 kg / 8000 g
Rubber Plate: Fitted

Dimensions for Model Selection

L: Overall anode length
A: Overall anode width
H: Overall anode height
I: Mounting-hole spacing
Ø: Mounting-hole size

For replacement selection, compare the overall length, width, height, mounting-hole spacing, hole size and anode weight with the existing installation.
