ID
1400372
$ 15.44
1-2 weeks delivery time
Size:
- 38x27x38
- 53x35x50
- 65x65x77
E. Polipodio zinc anodes for MTF applications, available in three dimensional configurations. OG001 / Trem L8113027, model F-MT-1, measures Ø38 mm in dimension A, Ø27 mm in dimension B and 38 mm in height. OG002 / Trem L8113035, model F-MT-2, measures Ø53 x Ø35 x 50 mm. OG003 / Trem L8113045, model F-MT-3, is the largest version with dimensions Ø65 x Ø65 x 77 mm. All variants are manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio MTF Zinc Anodes – OG001, OG002 & OG003, Ø38–65 mm
The E. Polipodio MTF Zinc Anodes are available in three sizes for MTF applications. The range includes E. Polipodio references OG001, OG002 and OG003, cross-referenced in the Trem catalogue as L8113027, L8113035 and L8113045.
All three variants are manufactured from zinc (ZN). Depending on the selected model, dimension A ranges from Ø38 to Ø65 mm, dimension B from Ø27 to Ø65 mm and overall height from 38 to 77 mm.
Key Features
- Brand: E. Polipodio
- Application: MTF
- Material: Zinc (ZN)
- Available References: OG001, OG002, OG003
- Dimension A Range: Ø38–65 mm
- Dimension B Range: Ø27–65 mm
- Height Range: 38–77 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A B H Material OG001 L8113027 F-MT-1 Ø38 mm Ø27 mm 38 mm Zinc (ZN) OG002 L8113035 F-MT-2 Ø53 mm Ø35 mm 50 mm Zinc (ZN) OG003 L8113045 F-MT-3 Ø65 mm Ø65 mm 77 mm Zinc (ZN)
E. Polipodio OG001 / Trem L8113027
- Model: F-MT-1
- Dimension A: Ø38 mm
- Dimension B: Ø27 mm
- Height H: 38 mm
- Material: Zinc (ZN)
- EAN: 8024827646038
E. Polipodio OG002 / Trem L8113035
- Model: F-MT-2
- Dimension A: Ø53 mm
- Dimension B: Ø35 mm
- Height H: 50 mm
- Material: Zinc (ZN)
- EAN: 8024827646045
E. Polipodio OG003 / Trem L8113045
- Model: F-MT-3
- Dimension A: Ø65 mm
- Dimension B: Ø65 mm
- Height H: 77 mm
- Material: Zinc (ZN)
- EAN: 8024827646052

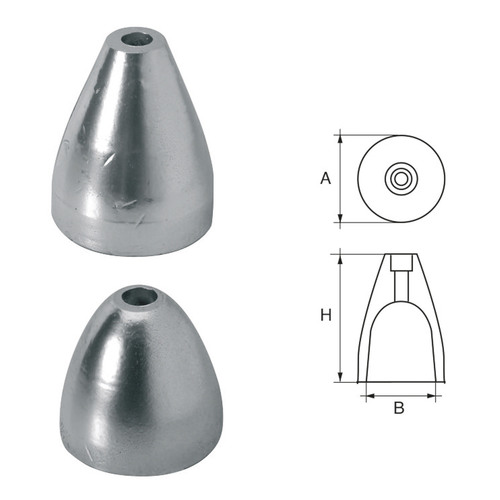

Dimensions for Model Selection
- A: Overall outside diameter
- B: Internal/base diameter according to the catalogue drawing
- H: Overall anode height
Select the required MTF anode according to the E. Polipodio reference and dimensions A, B and H.
-
