ID
1400321
$ 29.90
1-2 weeks delivery time
Size:
- 50x41.5x37x65
- 50x41.5x35x65
- 61x48x40x75
- 58.5x47x40x90
- 74x61x55x95
E. Polipodio zinc Axis Line Ferretti anodes, available in five configurations with Polipodio references OG006, OG007, OG007A, OG008 and OG008A and corresponding Trem references L8114040, L8114045, L8114050, L8114055 and L8114075. The range covers Ferretti models F-RA-3M/1, F-RA-3M/2, F-RA-3M/2A, F-RA-3M/3 and F-RA-3M/3A. Depending on the version, outside dimension A ranges from Ø50 to Ø74 mm, dimension B from Ø41.5 to Ø61 mm, dimension C from 35 to 55 mm and overall height H from 65 to 95 mm. All versions are manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio Zinc Axis Line Ferretti Anodes – OG006, OG007, OG007A, OG008 & OG008A
The E. Polipodio Axis Line Ferretti Anodes are zinc anodes available in five dimensional configurations for Ferretti shaft-line applications. The range includes Polipodio references OG006, OG007, OG007A, OG008 and OG008A.
Corresponding Trem references are L8114040, L8114045, L8114050, L8114055 and L8114075. Available Ferretti models are F-RA-3M/1, F-RA-3M/2, F-RA-3M/2A, F-RA-3M/3 and F-RA-3M/3A.
Key Features
- Brand: E. Polipodio
- Type: Axis Line Ferretti Anode
- Material: Zinc (ZN)
- Polipodio References: OG006, OG007, OG007A, OG008, OG008A
- Trem References: L8114040, L8114045, L8114050, L8114055, L8114075
- Models: F-RA-3M/1, F-RA-3M/2, F-RA-3M/2A, F-RA-3M/3, F-RA-3M/3A
- Dimension A: Ø50–74 mm
- Dimension B: Ø41.5–61 mm
- Dimension C: 35–55 mm
- Height H: 65–95 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A Ø B Ø C H Material OG006 L8114040 F-RA-3M/1 50 mm 41.5 mm 37 mm 65 mm Zinc (ZN) OG007 L8114045 F-RA-3M/2 50 mm 41.5 mm 35 mm 65 mm Zinc (ZN) OG007A L8114050 F-RA-3M/2A 61 mm 48 mm 40 mm 75 mm Zinc (ZN) OG008 L8114055 F-RA-3M/3 58.5 mm 47 mm 40 mm 90 mm Zinc (ZN) OG008A L8114075 F-RA-3M/3A 74 mm 61 mm 55 mm 95 mm Zinc (ZN)
E. Polipodio OG006 / Trem L8114040 – F-RA-3M/1
- Polipodio Reference: OG006
- Trem Reference: L8114040
- Model: F-RA-3M/1
- A: Ø50 mm
- B: Ø41.5 mm
- C: 37 mm
- H: 65 mm
- Material: Zinc (ZN)
- EAN: 8024827645710
E. Polipodio OG007 / Trem L8114045 – F-RA-3M/2
- Polipodio Reference: OG007
- Trem Reference: L8114045
- Model: F-RA-3M/2
- A: Ø50 mm
- B: Ø41.5 mm
- C: 35 mm
- H: 65 mm
- Material: Zinc (ZN)
- EAN: 8024827645727
E. Polipodio OG007A / Trem L8114050 – F-RA-3M/2A
- Polipodio Reference: OG007A
- Trem Reference: L8114050
- Model: F-RA-3M/2A
- A: Ø61 mm
- B: Ø48 mm
- C: 40 mm
- H: 75 mm
- Material: Zinc (ZN)
- EAN: 8024827645734
E. Polipodio OG008 / Trem L8114055 – F-RA-3M/3
- Polipodio Reference: OG008
- Trem Reference: L8114055
- Model: F-RA-3M/3
- A: Ø58.5 mm
- B: Ø47 mm
- C: 40 mm
- H: 90 mm
- Material: Zinc (ZN)
- EAN: 8024827645765
E. Polipodio OG008A / Trem L8114075 – F-RA-3M/3A
- Polipodio Reference: OG008A
- Trem Reference: L8114075
- Model: F-RA-3M/3A
- A: Ø74 mm
- B: Ø61 mm
- C: 55 mm
- H: 95 mm
- Material: Zinc (ZN)
- EAN: 8024827645772

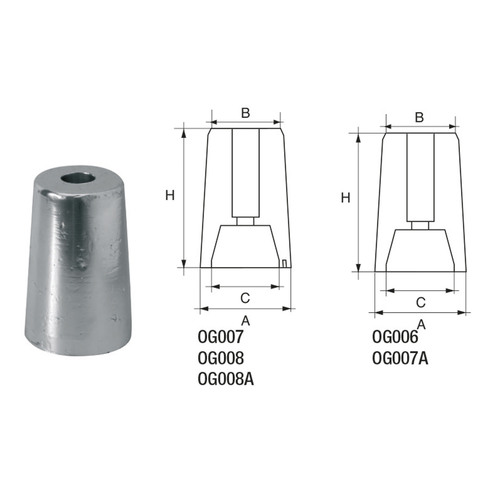

Dimensions for Model Selection
- A: Overall outside diameter
- B: Upper diameter
- C: Internal lower dimension shown in the catalogue drawing
- H: Overall height
For replacement selection, compare the E. Polipodio reference, Ferretti model and dimensions A, B, C and H with the existing anode.
-
