ID
1400337
$ 24.28
1-2 weeks delivery time
Size:
- Ø34x20x34
- Ø43x25x50
- Ø48x28x55
- Ø54x34x54
- Ø64x40x64
- Ø74x45x74
- Ø78x49x75
- Ø88x55x85
E. Polipodio Reggiani zinc anodes for shaft-line applications, available in eight configurations from model F-RG-2 to F-RG-9. Depending on the version, overall diameter A ranges from Ø34 to Ø88 mm, dimension B from 20 to 55 mm and overall height H from 34 to 85 mm. The range corresponds to E. Polipodio references OG017, OG018, OG019, OG020, OG021, OG022, OG047 and OG056 and Trem catalogue references L8110025 through L8110060. Select the required version according to model and dimensions A, B and H.
- Description
- Ask a Question
-
E. Polipodio Reggiani Zinc Shaft Line Anodes – Ø34–88 mm
The E. Polipodio Reggiani Zinc Anodes are designed for Reggiani shaft-line applications and are available in eight dimensional configurations. The range covers models F-RG-2 through F-RG-9.
Depending on the selected version, overall diameter A ranges from Ø34 to Ø88 mm, dimension B from 20 to 55 mm and overall height H from 34 to 85 mm. All versions shown in the catalogue are manufactured from zinc (ZN).
Key Features
- Brand: E. Polipodio
- Catalogue: Trem
- Type: Reggiani shaft-line anode
- Material: Zinc (ZN)
- Models: F-RG-2, F-RG-3, F-RG-4, F-RG-5, F-RG-6, F-RG-7, F-RG-8 and F-RG-9
- Overall Diameter A: Ø34–88 mm
- Dimension B: 20–55 mm
- Height H: 34–85 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A B H Material OG017 L8110025 F-RG-2 Ø34 mm 20 mm 34 mm Zinc OG018 L8110030 F-RG-3 Ø43 mm 25 mm 50 mm Zinc OG019 L8110035 F-RG-4 Ø48 mm 28 mm 55 mm Zinc OG020 L8110040 F-RG-5 Ø54 mm 34 mm 54 mm Zinc OG021 L8110045 F-RG-6 Ø64 mm 40 mm 64 mm Zinc OG022 L8110050 F-RG-7 Ø74 mm 45 mm 74 mm Zinc OG047 L8110055 F-RG-8 Ø78 mm 49 mm 75 mm Zinc OG056 L8110060 F-RG-9 Ø88 mm 55 mm 85 mm Zinc
E. Polipodio OG017 / Trem L8110025 – F-RG-2
- Model: F-RG-2
- A: Ø34 mm
- B: 20 mm
- H: 34 mm
- Material: Zinc
- EAN: 8024827645468
E. Polipodio OG018 / Trem L8110030 – F-RG-3
- Model: F-RG-3
- A: Ø43 mm
- B: 25 mm
- H: 50 mm
- Material: Zinc
- EAN: 8024827645475
E. Polipodio OG019 / Trem L8110035 – F-RG-4
- Model: F-RG-4
- A: Ø48 mm
- B: 28 mm
- H: 55 mm
- Material: Zinc
- EAN: 8024827645499
E. Polipodio OG020 / Trem L8110040 – F-RG-5
- Model: F-RG-5
- A: Ø54 mm
- B: 34 mm
- H: 54 mm
- Material: Zinc
- EAN: 8024827645512
E. Polipodio OG021 / Trem L8110045 – F-RG-6
- Model: F-RG-6
- A: Ø64 mm
- B: 40 mm
- H: 64 mm
- Material: Zinc
- EAN: 8024827645529
E. Polipodio OG022 / Trem L8110050 – F-RG-7
- Model: F-RG-7
- A: Ø74 mm
- B: 45 mm
- H: 74 mm
- Material: Zinc
- EAN: 8024827645536
E. Polipodio OG047 / Trem L8110055 – F-RG-8
- Model: F-RG-8
- A: Ø78 mm
- B: 49 mm
- H: 75 mm
- Material: Zinc
- EAN: 8024827645550
E. Polipodio OG056 / Trem L8110060 – F-RG-9
- Model: F-RG-9
- A: Ø88 mm
- B: 55 mm
- H: 85 mm
- Material: Zinc
- EAN: 8024827645574

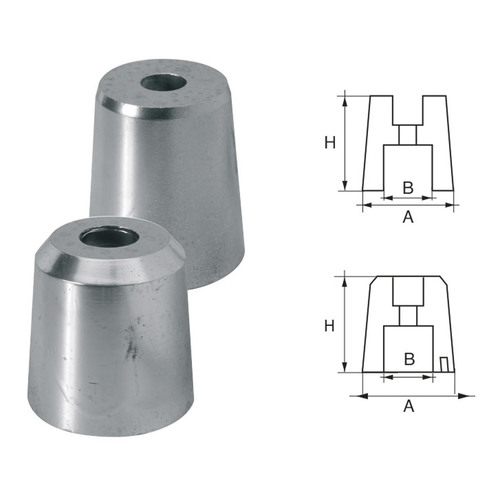

Dimensions for Model Selection
- A: Overall outside diameter
- B: Internal dimension shown in the catalogue drawing
- H: Overall anode height
Select the required Reggiani anode according to the model and compare dimensions A, B and H with the existing installation.
-
