ID
1400346
$ 19.96
1-2 weeks delivery time
Size:
- Ø32x24x39
- Ø37x26x46
- Ø47x36x60
- Ø52x41x70

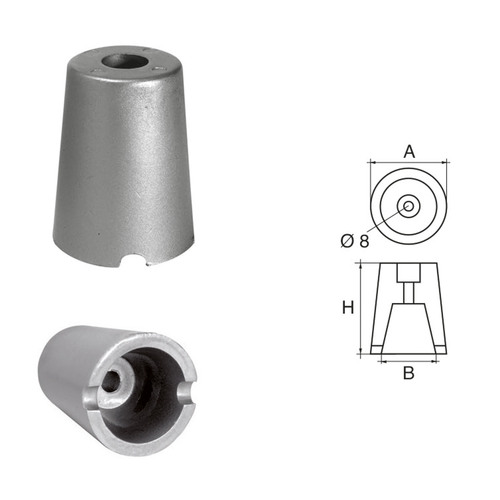

E. Polipodio Solé zinc shaft-line anodes available in four configurations, F-SO-1 through F-SO-4. Depending on the model, outside diameter A ranges from Ø32 to Ø52 mm, lower dimension B from 24 to 41 mm and overall height H from 39 to 70 mm. The catalogue drawing specifies a Ø8 mm central opening. All versions are manufactured from zinc (ZN). Select the required model according to dimensions A, B and H.
- Description
- Ask a Question
-
E. Polipodio Solé Zinc Shaft Line Anodes – F-SO-1 to F-SO-4, A Ø32–52 mm
The E. Polipodio Solé Zinc Shaft Line Anodes are available in four configurations identified as F-SO-1, F-SO-2, F-SO-3 and F-SO-4. All versions shown in the Trem catalogue are manufactured from zinc (ZN).
Depending on the selected model, outside diameter A ranges from Ø32 to Ø52 mm, lower dimension B from 24 to 41 mm and overall height H from 39 to 70 mm. The catalogue drawing also specifies a Ø8 mm central opening.
Key Features
- Brand: E. Polipodio
- Catalogue: Trem
- Type: Solé shaft-line anode
- Material: Zinc (ZN)
- Models: F-SO-1, F-SO-2, F-SO-3, F-SO-4
- Outside Diameter A: Ø32–52 mm
- Dimension B: 24–41 mm
- Height H: 39–70 mm
- Central Opening: Ø8 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model A B H Material OG069 L8110125 F-SO-1 Ø32 mm 24 mm 39 mm Zinc OG070 L8110130 F-SO-2 Ø37 mm 26 mm 46 mm Zinc OG071 L8110135 F-SO-3 Ø47 mm 36 mm 60 mm Zinc OG072 L8110140 F-SO-4 Ø52 mm 41 mm 70 mm Zinc
E. Polipodio OG069 / Trem L8110125 – F-SO-1
- A: Ø32 mm
- B: 24 mm
- H: 39 mm
- Material: Zinc
- EAN: 8024827645598
E. Polipodio OG070 / Trem L8110130 – F-SO-2
- A: Ø37 mm
- B: 26 mm
- H: 46 mm
- Material: Zinc
- EAN: 8024827645611
E. Polipodio OG071 / Trem L8110135 – F-SO-3
- A: Ø47 mm
- B: 36 mm
- H: 60 mm
- Material: Zinc
- EAN: 8024827645680
E. Polipodio OG072 / Trem L8110140 – F-SO-4
- A: Ø52 mm
- B: 41 mm
- H: 70 mm
- Material: Zinc
- EAN: 8024827645703
Dimensions for Model Selection
- A: Outside diameter
- B: Lower dimension shown in the catalogue drawing
- H: Overall height
- Central Opening: Ø8 mm
Select the required Solé anode according to the model and dimensions A, B and H.
-
