E. Polipodio Zinc Shaft Collar Anodes, Shaft Ø18–85 mm

ID 1400397

$ 15.58

1-2 weeks delivery time

Shaft Diameter:

E. Polipodio zinc shaft collar anodes for marine shaft installations, available for shaft diameters from Ø18 to Ø85 mm. The range includes 16 zinc (ZN) models with shaft sizes of 18, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50, 55, 70, 75, 80 and 85 mm. Depending on the selected version, the outside diameter ranges from Ø50 to Ø122 mm and the overall height from 47 to 108 mm. Select the required model primarily according to shaft diameter A and verify the corresponding outside diameter B and height H.

Description
Ask a Question

E. Polipodio Zinc Shaft Collar Anodes – Shaft Ø18–85 mm

The E. Polipodio Zinc Shaft Collar Anodes are split sacrificial anodes designed for installation around marine shafts. The range covers shaft diameters from Ø18 to Ø85 mm and includes multiple dimensional configurations for different shaft installations.

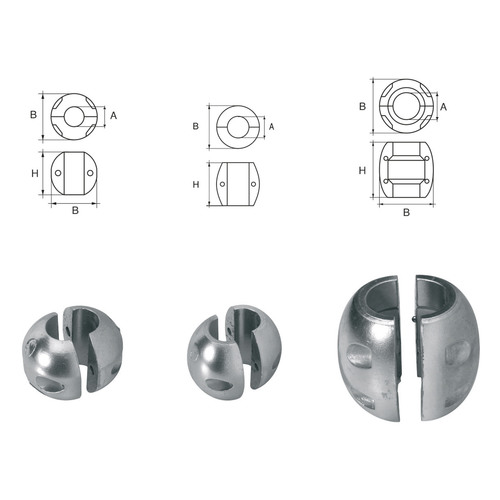

Dimension A represents the internal opening and corresponding shaft diameter. Dimension B represents the overall outside diameter of the anode, while H is the overall height.

Key Features

Brand: E. Polipodio
Product Type: Shaft collar / axis line anode
Material: Zinc (ZN)
Shaft Diameter Range: Ø18–85 mm
Outside Diameter Range: Ø50–122 mm
Height Range: 47–108 mm

Available Models and Technical Specifications

E. Polipodio Reference	Trem Reference	Shaft Ø / A	Outside Ø / B	Height H
AN001	L8100018	18 mm	50 mm	47 mm
AN003	L8100022	22 mm	50 mm	47 mm
AN004	L8100025	25 mm	56 mm	56 mm
AN006	L8100028	28 mm	56 mm	56 mm
AN008	L8100030	30 mm	56 mm	56 mm
AN009	L8100032	32 mm	56 mm	56 mm
AN011	L8100035	35 mm	65 mm	67 mm
AN012	L8100038	38 mm	65 mm	67 mm
AN013	L8100040	40 mm	81 mm	83 mm
AN014	L8100045	45 mm	—	83 mm
AN016	L8100050	50 mm	81 mm	83 mm
AN019	L8100055	55 mm	98 mm	98 mm
AN025	L8105070	70 mm	122 mm	108 mm
AN026	L8105075	75 mm	122 mm	108 mm
AN027	L8105080	80 mm	122 mm	108 mm
AN028	L8105085	85 mm	122 mm	108 mm

Dimensions for Model Selection

A: Internal diameter / shaft diameter
B: Overall outside diameter
H: Overall anode height

Select the required E. Polipodio shaft anode primarily according to shaft diameter A, then compare outside diameter B and height H with the existing installation.
