E. Polipodio Zinc Shaft Collar Anodes with Screws, Shaft Ø20–85 mm

ID 1400380

$ 11.50

1-2 weeks delivery time

Shaft Diameter:

E. Polipodio zinc shaft collar anodes for propeller shafts, supplied complete with screws and available for shaft diameters from Ø20 to Ø85 mm. Depending on the selected version, the outside diameter ranges from Ø60 to Ø140 mm and the anode height from 15 to 29 mm. The range includes 16 zinc (ZN) configurations for shaft diameters 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50, 55, 60, 70, 80 and 85 mm. Select the required version according to the propeller shaft diameter and corresponding outside dimensions.

Description
Ask a Question

E. Polipodio Zinc Shaft Collar Anodes with Screws – Shaft Ø20–85 mm

The E. Polipodio Zinc Shaft Collar Anodes are annular sacrificial anodes designed for installation around propeller shafts. The range is available for shaft diameters from Ø20 to Ø85 mm and is supplied complete with screws.

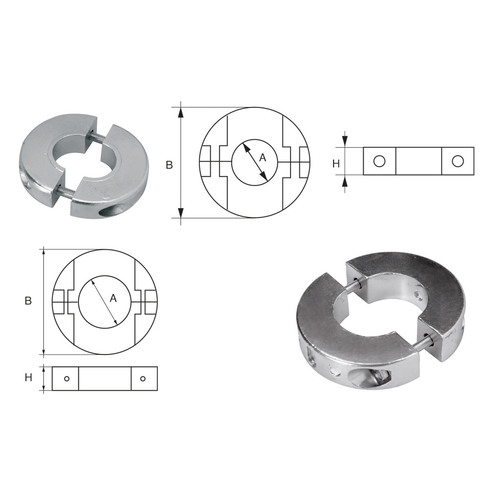

Dimension A represents the internal diameter and therefore the corresponding shaft diameter. Depending on the selected model, outside diameter B ranges from Ø60 to Ø140 mm, while height H ranges from 15 to 29 mm.

Key Features

Brand: E. Polipodio
Product Type: Shaft collar / annular anode
Material: Zinc (ZN)
Shaft Diameter Range: Ø20–85 mm
Outside Diameter B: Ø60–140 mm
Height H: 15–29 mm
Supply: Complete with screws

Available Models and Dimensions

E. Polipodio Reference	Trem Reference	Shaft Ø / A	Outside Ø / B	Height H
AV002	L8106020	20 mm	60 mm	15 mm
AV003	L8106022	22 mm	60 mm	15 mm
AV004	L8106025	25 mm	60 mm	15 mm
AV005	L8106028	28 mm	60 mm	15 mm
AV006	L8106030	30 mm	60 mm	15 mm
AV007	L8106032	32 mm	74 mm	18 mm
AV008	L8106035	35 mm	74 mm	18 mm
AV009	L8106038	38 mm	74 mm	18 mm
AV010	L8106040	40 mm	74 mm	18 mm
AV011	L8106045	45 mm	80 mm	18 mm
AV013L	L8106050	50 mm	80 mm	18 mm
AV014	L8106055	55 mm	96 mm	29 mm
AV015	L8106060	60 mm	120 mm	29 mm
AV017	L8106070	70 mm	130 mm	29 mm
AV019	L8106080	80 mm	140 mm	29 mm
AV020	L8106085	85 mm	140 mm	29 mm

Dimensions for Selection

A: Internal diameter / propeller shaft diameter
B: Overall outside diameter
H: Anode height

Select the required model primarily according to the propeller shaft diameter A, then verify outside diameter B and height H against the existing installation.
