The Hollex 5959 Zinc Type V FB2 Propeller Shaft Anode is a sacrificial anode designed for marine propeller shafts with a diameter of 24.5 mm. Manufactured from zinc for saltwater applications, it features a V-model configuration with an external diameter of 58 mm and a height of 42 mm. Drawing dimensions: A Ø58 mm, E 24.5 mm and H 42 mm. The anode helps protect electrically connected shaft components against galvanic corrosion. Product number 5959, EAN 1957000012627. Supplied individually.
- Description
- Ask a Question
-

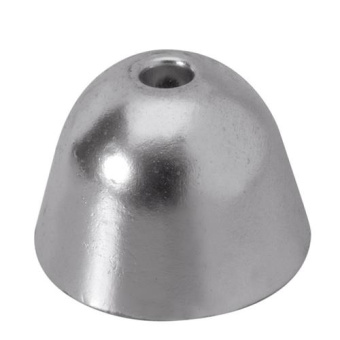

Hollex 5959 Zinc Type V FB2 Propeller Shaft Anode – Shaft Ø24.5 mm, Anode Ø58 × 42 mm
The Hollex 5959 Zinc Propeller Shaft Anode Type V FB2 is designed to provide sacrificial corrosion protection for marine propeller shafts. Manufactured from zinc, this anode is intended for use in saltwater environments.
The anode is specified for a shaft diameter of 24.5 mm. Its external diameter is 58 mm, and its height is 42 mm. The V-model configuration is identified by the Type V FB2 designation.
Key Features
- Brand: Hollex
- Product Number: 5959
- Product Type: Propeller shaft sacrificial anode
- Model: Type V FB2
- Material: Zinc
- Shaft Diameter: 24.5 mm
- External Anode Diameter: 58 mm
- Anode Height: 42 mm
- Shape: V Model
- Suitable Water Type: Saltwater
- Application: Propeller shaft corrosion protection
- Sales Unit: 1 piece
Technical Specifications
Specification Value Manufacturer Hollex Product Number 5959 EAN Code 1957000012627 Product Type Propeller Shaft Anode Model Type V FB2 Material Zinc Shaft Diameter 24.5 mm External Anode Diameter 58 mm Anode Height 42 mm Suitable Water Type Saltwater Sales Unit 1 piece

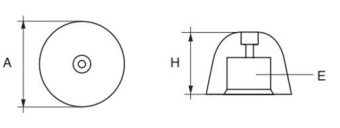

Drawing Dimensions
The Hollex 5959 has the following dimensional specifications:
Drawing Reference Dimension A Ø 58 mm E 24.5 mm H 42 mm
The 24.5 mm dimension corresponds to the specified propeller shaft diameter. The external anode diameter and height are 58 mm and 42 mm respectively.
Construction and Shaft Compatibility
The Hollex Type V FB2 anode is manufactured from zinc and designed for installation on a compatible marine propeller shaft.
- Anode Material: Zinc.
- Model: Type V FB2.
- Compatible Shaft Diameter: Ø24.5 mm.
- External Diameter: Ø58 mm.
- Height: 42 mm.
Before ordering, verify the shaft diameter, anode dimensions and existing anode type to ensure compatibility with the installation.
Saltwater Corrosion Protection
The Hollex 5959 is a zinc sacrificial anode intended for saltwater environments. The zinc material corrodes preferentially to help protect electrically connected marine metal components against galvanic corrosion.
Regular inspection and replacement of the anode when sufficiently depleted help maintain the intended corrosion protection arrangement.
Product Identification
- Brand: Hollex
- Manufacturer Part Number: 5959
- Model: Type V FB2
- EAN Code: 1957000012627
- Sales Unit: 1 piece
-
