ID
1400368
$ 13.14
1-2 weeks delivery time
Size:
- Ø50x17x37
- Ø56x15x40
- Ø38x10x29
Item:
- Vetus BP1126
- Vetus SET0150
- Vetus SET0148
E. Polipodio zinc anodes for Vetus applications, available in three configurations with outside diameters from Ø38 to Ø56 mm. OG031 / Trem L8125532, model F-BC-4 and original code BP1126, measures Ø50 x 17 x 37 mm. OG033 / Trem L8125533, model F-BC-5 and original code SET0150, measures Ø56 x 15 x 40 mm. OG036 / Trem L8125530, model F-BC-8 and original code SET0148, measures Ø38 x 10 x 29 mm. All three versions are manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio Vetus Zinc Anodes – OG031, OG033 & OG036, Ø38–56 mm
The E. Polipodio Vetus Zinc Anodes are available in three dimensional configurations for Vetus applications. The range includes E. Polipodio references OG031, OG033 and OG036, cross-referenced in the Trem catalogue as L8125532, L8125533 and L8125530.
All three versions are manufactured from zinc (ZN). Depending on the model, outside diameter A ranges from Ø38 to Ø56 mm, dimension B from 10 to 17 mm and dimension C from 29 to 40 mm.
Key Features
- Brand: E. Polipodio
- Application: Vetus
- Material: Zinc (ZN)
- Available References: OG031, OG033, OG036
- Outside Diameter A: Ø38–56 mm
- Dimension B: 10–17 mm
- Dimension C: 29–40 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Model Original Code A B C Material OG031 L8125532 F-BC-4 BP1126 Ø50 mm 17 mm 37 mm Zinc (ZN) OG033 L8125533 F-BC-5 SET0150 Ø56 mm 15 mm 40 mm Zinc (ZN) OG036 L8125530 F-BC-8 SET0148 Ø38 mm 10 mm 29 mm Zinc (ZN)
E. Polipodio OG031 / Trem L8125532
- Model: F-BC-4
- Original Code: BP1126
- Dimension A: Ø50 mm
- Dimension B: 17 mm
- Dimension C: 37 mm
- Material: Zinc (ZN)
- EAN: 8024827646274
E. Polipodio OG033 / Trem L8125533
- Model: F-BC-5
- Original Code: SET0150
- Dimension A: Ø56 mm
- Dimension B: 15 mm
- Dimension C: 40 mm
- Material: Zinc (ZN)
- EAN: 8024827646281
E. Polipodio OG036 / Trem L8125530
- Model: F-BC-8
- Original Code: SET0148
- Dimension A: Ø38 mm
- Dimension B: 10 mm
- Dimension C: 29 mm
- Material: Zinc (ZN)
- EAN: 8024827646267

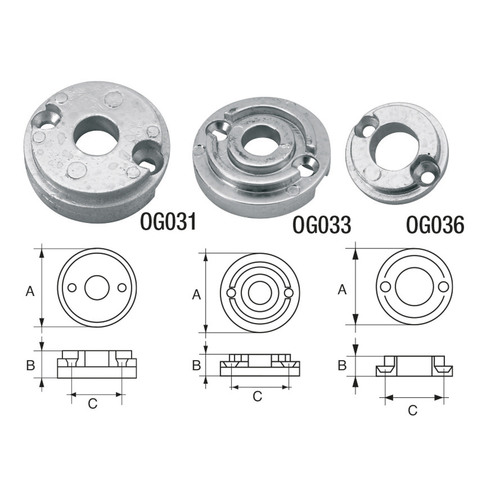

Dimensions for Model Selection
- A: Overall outside diameter
- B: Anode dimension according to the catalogue drawing
- C: Internal/base dimension according to the catalogue drawing
Select the required version according to the E. Polipodio reference, original Vetus code and dimensions A, B and C.
-
