ID
1400367
$ 13.17
1-2 weeks delivery time
-
+
E. Polipodio OG043 zinc anode for Max Power applications, cross-referenced in the Trem catalogue as L8125560. The anode measures Ø32 mm in overall diameter and 32 mm in height. The technical drawing additionally specifies a 6 mm upper opening and internal dimensions of 18 mm and 27 mm. Manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio OG043 Zinc Anode for Max Power – Ø32x32 mm
The E. Polipodio OG043 is a zinc anode for Max Power applications and is listed in the Trem catalogue under reference L8125560.

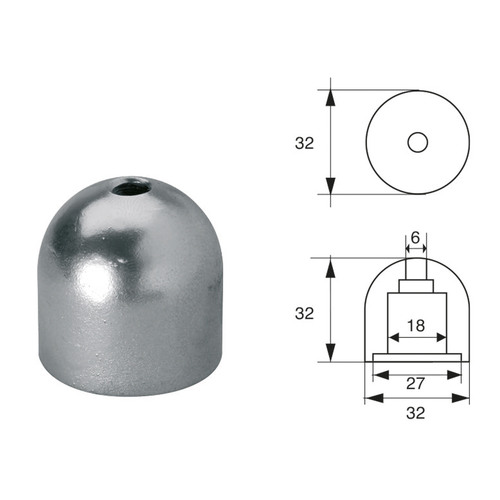

The anode has an overall diameter of Ø32 mm and an overall height of 32 mm. The catalogue drawing also specifies a 6 mm upper opening and internal dimensions of 18 mm and 27 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: OG043
- Trem Reference: L8125560
- Application: Max Power
- Material: Zinc (ZN)
- Overall Diameter: Ø32 mm
- Overall Height: 32 mm
- Upper Opening: 6 mm
- Internal Dimension: 18 mm
- Internal/Base Dimension: 27 mm
- EAN: 8024827646380
Dimensions for Selection
- Overall Diameter: Ø32 mm
- Height: 32 mm
- Upper Opening: 6 mm
- Internal Dimensions: 18 mm / 27 mm
For replacement selection, compare the E. Polipodio reference and dimensional specifications with the existing anode.
-
