E. Polipodio AN029 zinc shaft collar anode for Ø90 mm shaft installations, cross-referenced in the Trem catalogue as L8105090. The split anode has an internal diameter A of Ø90 mm, an overall outside diameter B of Ø128 mm and an overall height H of 100 mm. Manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio AN029 Zinc Shaft Collar Anode – Shaft Ø90 mm
The E. Polipodio AN029 is a split zinc shaft collar anode designed for installation around a Ø90 mm shaft. It is cross-referenced in the Trem catalogue as L8105090.

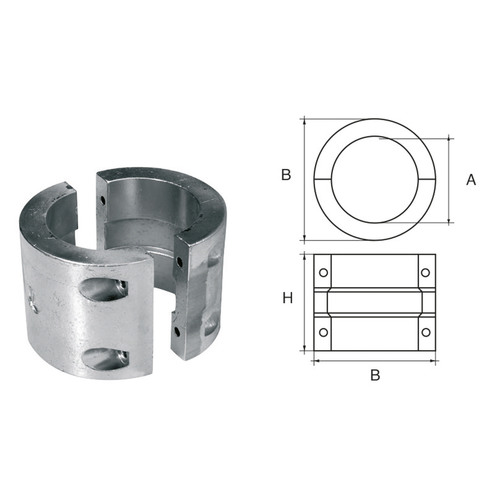

Dimension A represents the internal shaft opening and measures Ø90 mm. The anode has an overall outside diameter B of Ø128 mm and an overall height H of 100 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: AN029
- Trem Reference: L8105090
- Product Type: Shaft collar / axis line anode
- Material: Zinc (ZN)
- Shaft Diameter A: Ø90 mm
- Overall Diameter B: Ø128 mm
- Overall Height H: 100 mm
- EAN: 8024827645017
Dimensions for Selection
- A: Ø90 mm internal diameter / shaft diameter
- B: Ø128 mm overall outside diameter
- H: 100 mm overall height
For replacement selection, verify the Ø90 mm shaft diameter together with the Ø128 mm outside diameter and 100 mm height.
-
