ID
1400417
$ 30.89
1-2 weeks delivery time
-
+
E. Polipodio OG010/6F zinc anode suitable for Max-Prop propeller applications, cross-referenced in the Trem catalogue as L8119343. The anode measures Ø68 mm in overall diameter and 44 mm in height, with a Ø42 mm central opening. The catalogue drawing additionally specifies 5 mm and 6 mm mounting dimensions. Manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio OG010/6F Zinc Anode for Max-Prop Propeller – Ø68x44 mm, Bore Ø42 mm
The E. Polipodio OG010/6F is a zinc anode suitable for Max-Prop propeller applications and is cross-referenced in the Trem catalogue as L8119343.

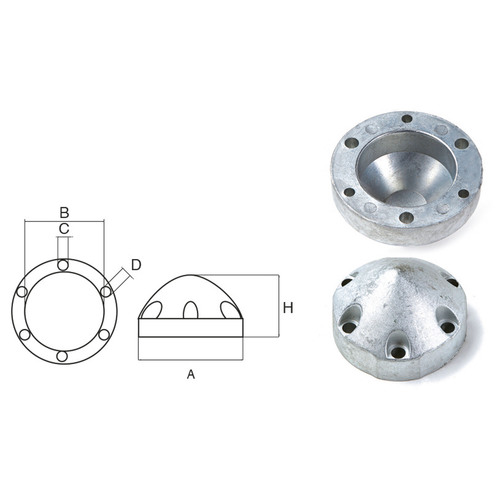

The anode has an overall diameter of Ø68 mm and an overall height of 44 mm. The central opening measures Ø42 mm. The catalogue drawing also specifies dimensions C 5 mm and D 6 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: OG010/6F
- Trem Reference: L8119343
- Application: Max-Prop propeller
- Material: Zinc (ZN)
- Overall Diameter A: Ø68 mm
- Central Diameter B: Ø42 mm
- Dimension C: 5 mm
- Dimension D: 6 mm
- Overall Height H: 44 mm
- EAN: 8024827646182
Dimensions for Selection
- A: Ø68 mm overall diameter
- B: Ø42 mm central opening
- C: 5 mm
- D: 6 mm
- H: 44 mm overall height
For replacement selection, compare the E. Polipodio reference and dimensions A, B, C, D and H with the existing Max-Prop anode.
-
