Martyr Couach Type Zinc Shaft End Anodes

ID 1400984

$ 7.38

1-2 weeks delivery time

Shaft Diameter:

22-25
28-34
40

Size:

M16x2
M20x2.5
M28x2.5

Item:

140 g
79 g
216 g

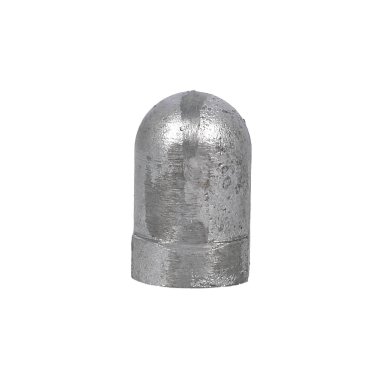

Martyr Couach type zinc shaft end anodes for sacrificial corrosion protection of compatible propeller shaft installations. Available for shaft diameters Ø22–25 mm, Ø28–34 mm and Ø40 mm with threaded mounting sizes M16x2, M20x2.5 and M28x2.5 respectively. The range includes ANO100 at 79 g, ANO105 at 140 g and ANO110 at 216 g.

Description
Ask a Question

Martyr Couach Type Zinc Shaft End Anodes – Shaft Ø22–40 mm

The Martyr Couach type zinc shaft end anodes are sacrificial anodes designed for mounting at the end of compatible propeller shafts. The range includes three versions for shaft diameters from Ø22 to Ø40 mm.

Each model uses a specific threaded connection matched to the shaft installation. ANO100 is designed for Ø22–25 mm shafts with M16x2 thread, ANO105 for Ø28–34 mm shafts with M20x2.5 thread, and ANO110 for Ø40 mm shafts with M28x2.5 thread.

Available Models

Product Code	Type	Shaft Diameter	Thread	Anode Diameter	Height	Weight
ANO100	Couach	Ø22–25 mm	M16x2	Ø26 mm	38 mm	79 g
ANO105	Couach	Ø28–34 mm	M20x2.5	Ø35 mm	50 mm	140 g
ANO110	Couach	Ø40 mm	M28x2.5	Ø35 mm	49 mm	216 g

Key Features

Brand: Martyr
Type: Couach shaft end anode
Material: Zinc
Shaft Diameter Range: Ø22–40 mm
Mounting: Threaded
Available Threads: M16x2, M20x2.5 and M28x2.5

Select the correct anode according to the propeller shaft diameter and threaded mounting size.
